Windscreen Washer (Halewood (Uk)) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Windscreen Washer (Halewood (UK)) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR027687 GROMMET - WINDSHIELD WASHER PUMP $3.71 To Order
Photo Part No Description Price (each) Stock
AFU4506 GROMMET - WINDSHIELD WASHER PUMP $5.54 To Order
Photo Part No Description Price (each) Stock
FYP106392 SCREW $2.19 To Order
Photo Part No Description Price (each) Stock
RYG500820 SCREW AND WASHER $0.67 To Order
Photo Part No Description Price (each) Stock
LR029523 SCREW - PAN - TORX $1.15 To Order
Photo Part No Description Price (each) Stock
LR059996 JET - WINDSHIELD WASHER $35.56 To Order
LR059997 JET - WINDSHIELD WASHER $20.42 To Order
Photo Part No Description Price (each) Stock
LR025755 WINDSHIELD WASHER $49.13 To Order
LR025760 RESERVOIR - WINDSHIELD WASHER $66.80 To Order
Photo Part No Description Price (each) Stock
LR059992 HOSE - WINDSHIELD WASHER $127.31 To Order
LR059993 HOSE - WINDSHIELD WASHER $127.31 To Order
Photo Part No Description Price (each) Stock
LR059994 HOSE - WINDSHIELD WASHER $33.24 To Order
LR059995 HOSE - WINDSHIELD WASHER $123.74 To Order
LR077445 HOSE - WINDSHIELD WASHER $75.89 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR077448 HOSE - WINDSHIELD WASHER $18.18 To Order
LR077449 HOSE - WINDSHIELD WASHER $60.62 To Order
Photo Part No Description Price (each) Stock
LR013950 MOTOR AND PUMP - HEADLAMP WASHER (NH) $40.77 To Order
Photo Part No Description Price (each) Stock
LR013951 MOTOR AND PUMP - FRONT/REAR WASHER $49.35 To Order
Photo Part No Description Price (each) Stock
LR027685 MOTOR AND PUMP - FRONT/REAR WASHER $61.51 To Order
LR077377 MOTOR AND PUMP - FRONT/REAR WASHER $60.78 To Order
LR083803 MOTOR AND PUMP - FRONT/REAR WASHER $41.77 To Order
Photo Part No Description Price (each) Stock
LR002266 CAP - FILLER $4.11 To Order
Photo Part No Description Price (each) Stock
DMI500010 SENSOR - WASHER FLUID LEVEL $12.41 To Order
LR142260 SENSOR - WASHER FLUID LEVEL $25.20 To Order
Photo Part No Description Price (each) Stock
DMS500010 FILTER - WATER $7.32 To Order
Photo Part No Description Price (each) Stock
DMJ500020 GROMMET - WATER RESERVOIR $4.68 To Order
Photo Part No Description Price (each) Stock
LR085631 HOSE - WINDSHIELD WASHER $29.19 To Order
Photo Part No Description Price (each) Stock
LR059998 HOSE - FILLER PIPE $42.74 To Order
LR084365 HOSE - FILLER PIPE $65.33 To Order
Photo Part No Description Price (each) Stock
LR061215 HOSE - WINDSHIELD WASHER $32.03 IN STOCK
Photo Part No Description Price (each) Stock
LR077441 HOSE - WINDSHIELD WASHER $17.83 To Order
View All

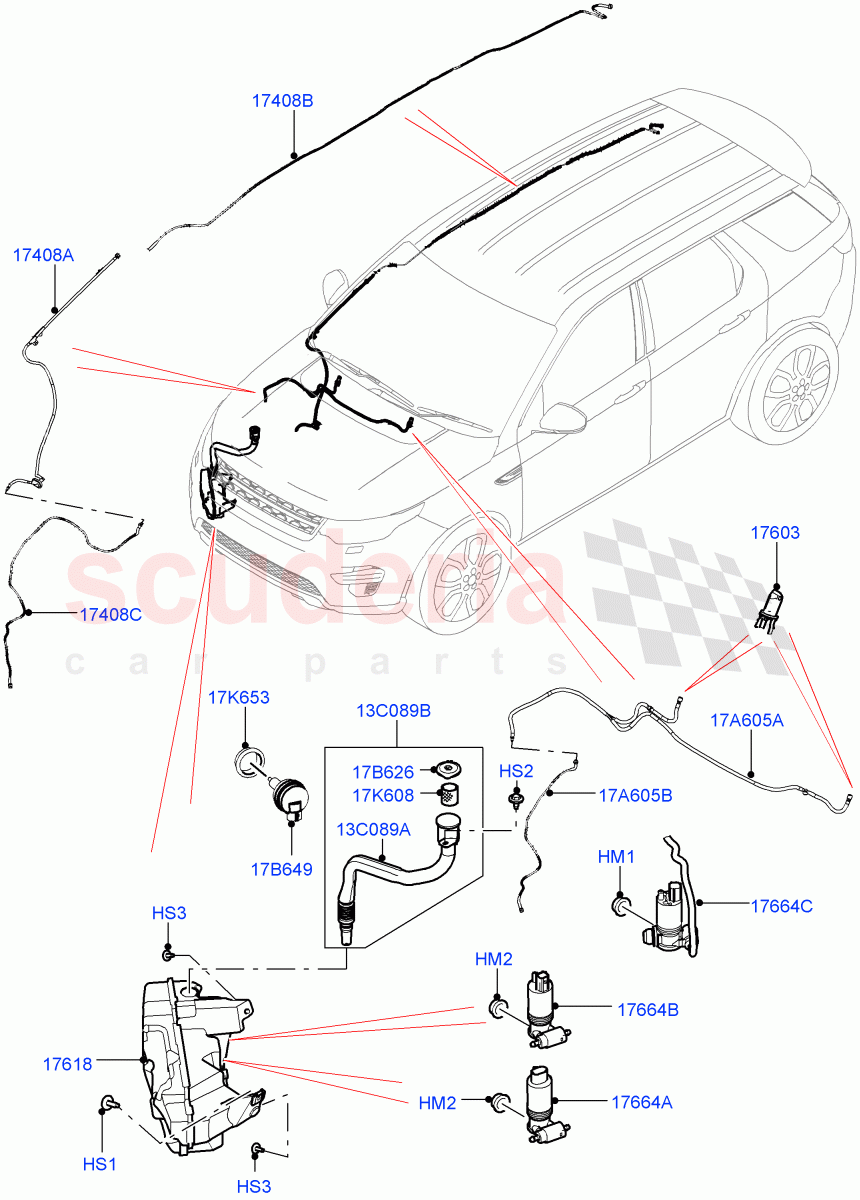

Windscreen Washer (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 LR027687
GROMMET - WINDSHIELD WASHER PUMP
Windshield Washer Motor 		$3.71 1
HM2 AFU4506
GROMMET - WINDSHIELD WASHER PUMP
Grommet 		$5.54 1
HS1 FYP106392
SCREW
M6 		$2.19 1
HS2 RYG500820
SCREW AND WASHER
Hexagonal Head, M6 X 16MM 		$0.67 1
HS3 LR029523
SCREW - PAN - TORX
M6 X 14MM 		$1.15 2
13C089A LR085631
HOSE - WINDSHIELD WASHER
From: HH000001 		$29.19 1
13C089B LR059998
HOSE - FILLER PIPE
To: GH999999 		$42.74 1
13C089B LR084365
HOSE - FILLER PIPE
From: HH000001 / To: KH999999 		$65.33 1
17A605A LR061215
HOSE - WINDSHIELD WASHER
For Windshield Washer, Upper
IN STOCK 		$32.03 1
17A605B LR077441
HOSE - WINDSHIELD WASHER
For Windshield Washer, Lower, Reservoir / From: FH532001 		$17.83 1
17B626 LR002266
CAP - FILLER
From: HH000001 		$4.11 1
17B649 DMI500010
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Low Level / To: JH759362 		$12.41 1
17B649 LR142260
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Low Level / From: JH759363 		$25.20 1
17K608 DMS500010
FILTER - WATER
From: HH000001 		$7.32 1
17K653 DMJ500020
GROMMET - WATER RESERVOIR
With Headlamp Power Wash / With Low Level Sensor 		$4.68 1
17408A LR059992
HOSE - WINDSHIELD WASHER
RHD / For Rear Window Washer, Middle 		$127.31 1
17408A LR059993
HOSE - WINDSHIELD WASHER
LHD / For Rear Window Washer, Middle 		$127.31 1
17408B LR059994
HOSE - WINDSHIELD WASHER
RHD / For Rear Window Washer, Upper / To: FH527499 		$33.24 1
17408B LR059995
HOSE - WINDSHIELD WASHER
LHD / For Rear Window Washer, Upper / To: FH527499 		$123.74 1
17408B LR077445
HOSE - WINDSHIELD WASHER
RHD / For Rear Window Washer, Upper / From: FH527500 / To: HH700976 		$75.89 1
17408B LR077446
HOSE - WINDSHIELD WASHER
LHD / For Rear Window Washer, Upper / From: FH527500 / To: HH700976 		$37.49 1
17408B LR104024
HOSE - WINDSHIELD WASHER
LHD / For Rear Window Washer, Upper / From: HH700977 		$35.01 1
17408B LR104025
HOSE - WINDSHIELD WASHER
RHD / For Rear Window Washer, Upper / From: HH700977 		$77.17 1
17408C LR077448
HOSE - WINDSHIELD WASHER
RHD / For Rear Window Washer, Lower, Reservoir / From: FH520490 		$18.18 1
17408C LR077449
HOSE - WINDSHIELD WASHER
LHD / For Rear Window Washer, Lower, Reservoir / From: FH520490 		$60.62 1
17603 LR059996
JET - WINDSHIELD WASHER
With Heated Washer Jet 		$35.56 1
17603 LR059997
JET - WINDSHIELD WASHER
Less Heated Washer Jet 		$20.42 1
17618 LR025755
WINDSHIELD WASHER
Less Headlamp Washer 		$49.13 1
17618 LR025760
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash 		$66.80 1
17664A LR013950
MOTOR AND PUMP - HEADLAMP WASHER (NH)
With Headlamp Power Wash 		$40.77 1
17664B LR013951
MOTOR AND PUMP - FRONT/REAR WASHER
With Front And Rear Wiper/Washer 		$49.35 1
17664C LR027685
MOTOR AND PUMP - FRONT/REAR WASHER
To: FH528504 		$61.51 1
17664C LR077377
MOTOR AND PUMP - FRONT/REAR WASHER
From: FH528505 / To: GH575293 		$60.78 1
17664C LR083803
MOTOR AND PUMP - FRONT/REAR WASHER
From: GH575294 		$41.77 1
