Find Your Part

Radiator Grille And Front Bumper (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Radiator Grille And Front Bumper (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

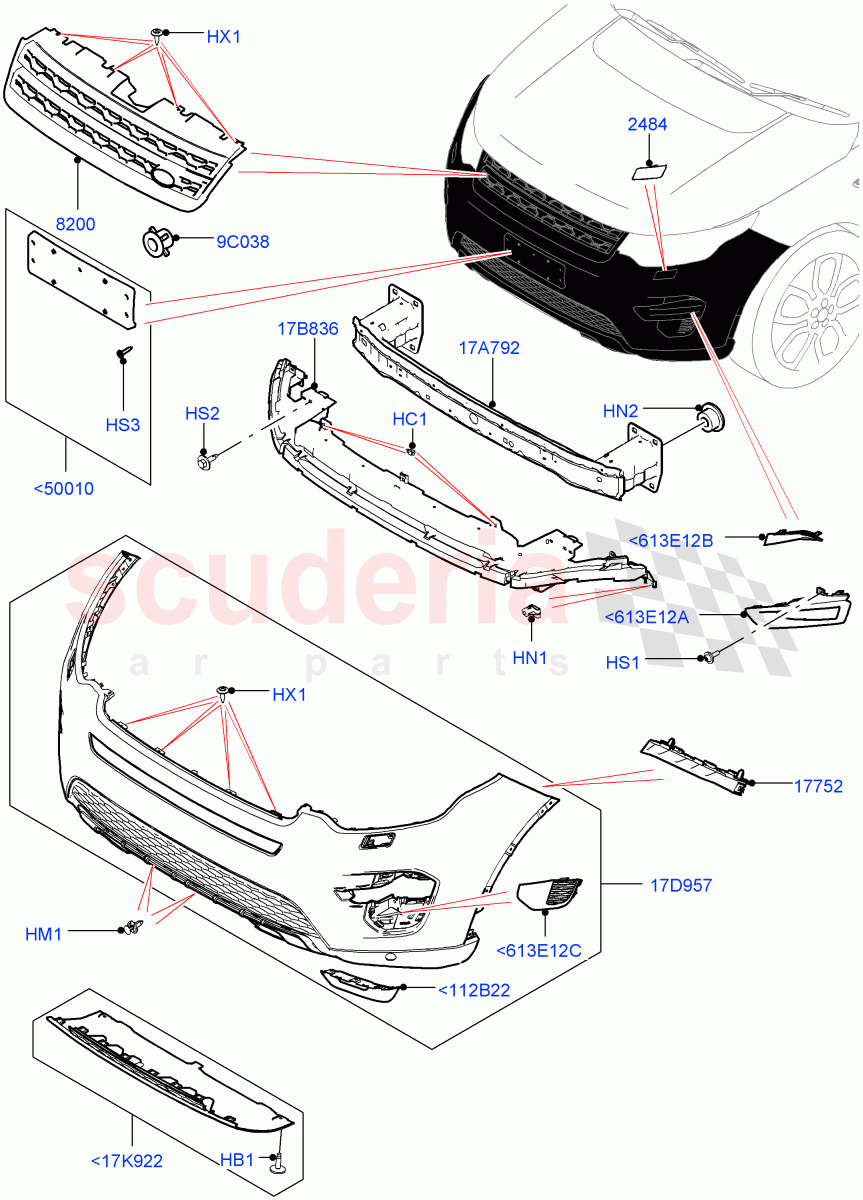

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028941	BOLT	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018173	CLIP - RETAINING	$3.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	$2.66	To Order
	RZM500100	PIN - TRIM	$3.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010156	NUT	$1.50	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500480	NUT AND WASHER - HEX.	$3.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR001590	SCREW AND WASHER	$0.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061227	SCREW	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000040	SCREW	$1.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061223	CAP - POWERWASH JET	$29.00	To Order
	LR061224	CAP - POWERWASH JET	$24.80	To Order
	LR061225	CAP - POWERWASH JET	$29.00	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061220	GRILLE - RADIATOR	$326.50	To Order
	LR061221	GRILLE - RADIATOR	$331.39	To Order
	LR061222	GRILLE - RADIATOR	$324.08	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR077882	BRACKET - BUMPER MOUNTING	$32.51	To Order
	LR077883	BRACKET - BUMPER MOUNTING	$32.51	To Order

Photo	Part No	Description	Price (each)	Stock
	ZKC2228	NUT - SPECIAL	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061252	KIT - LICENCE PLATE	$34.39	To Order
	LR094277	KIT - LICENCE PLATE	$39.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059013	REINFORCEMENT - BUMPER BAR BRACKET	$705.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061238	BRACKET - BUMPER MOUNTING	$162.23	To Order
	LR084612	BRACKET - BUMPER MOUNTING	$162.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077231	BUMPER - FRONT	$938.77	To Order
	LR077234	BUMPER - FRONT	$975.79	To Order
	LR077229	BUMPER - FRONT	$975.79	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061248	DEFLECTOR - AIR	$31.90	To Order
	LR061249	DEFLECTOR - AIR	$31.90	To Order
	LR106346	DEFLECTOR - AIR	$38.11	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061241	COVER - TOW HOOK	$194.88	To Order
	LR061242	COVER - TOW HOOK	$194.88	To Order
	LR061243	COVER - TOW HOOK	$194.88	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061229	BEZEL - FOG LAMP	$58.92	To Order
	LR061234	BEZEL - FOG LAMP	$58.92	To Order
	LR066137	BEZEL - FOG LAMP	$34.23	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061230	BEZEL - FOG LAMP	$11.51	To Order
	LR061235	BEZEL - FOG LAMP	$11.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061231	BEZEL - FOG LAMP	$27.94	To Order
	LR061236	BEZEL - FOG LAMP	$27.94	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<17K922	LR061241	COVER - TOW HOOK	LR061241 COVER - TOW HOOK Rear Bumper Lower Valance, Tow Eye Cover - Anthracite / From: FG000001	$194.88	1
<17K922	LR061242	COVER - TOW HOOK	LR061242 COVER - TOW HOOK Rear Bmp Lwr Valance - Dark Silver, Tow Eye Cover - Dark Techno Silver / From: FG000001	$194.88	1
<17K922	LR061243	COVER - TOW HOOK	LR061243 COVER - TOW HOOK Rear Bmp Lwr Valance - White Silver, Tow Eye Cover - White Techno Silver / From: FG000001	$194.88	1
<17K922	LR106652	COVER - TOW HOOK	LR106652 COVER - TOW HOOK Bumper Lower Valance - Black / From: KG422269	$212.85	1
<112B22	LR061248	DEFLECTOR - AIR	LR061248 DEFLECTOR - AIR RH / From: FG000001 / To: HG379387	$31.90	1
<112B22	LR061249	DEFLECTOR - AIR	LR061249 DEFLECTOR - AIR LH / From: FG000001 / To: HG379387	$31.90	1
<112B22	LR106346	DEFLECTOR - AIR	LR106346 DEFLECTOR - AIR Disc Brake Size Frt 17/RR 17, Front Bumper - Painted Body Colour / RH / From: HG379388	$38.11	1
<112B22	LR106347	DEFLECTOR - AIR	LR106347 DEFLECTOR - AIR Front Bumper - Painted Body Colour, Front Disc And Caliper Size 17 / LH / From: HG379388	$35.35	1
<112B22	LR111846	DEFLECTOR - AIR	LR111846 DEFLECTOR - AIR Front Bumper - Sport - Body Colour / RH / To: KG446856	$31.22	1
<112B22	LR111847	DEFLECTOR - AIR	LR111847 DEFLECTOR - AIR Front Bumper - Sport - Body Colour / LH / To: KG446856	$31.22	1
<613E12A	LR061229	BEZEL - FOG LAMP	LR061229 BEZEL - FOG LAMP With Black Fog Lamp Bezel, With Front Fog Lamps / RH / From: FG000001	$58.92	1
<613E12A	LR061234	BEZEL - FOG LAMP	LR061234 BEZEL - FOG LAMP With Black Fog Lamp Bezel, With Front Fog Lamps / LH / From: FG000001	$58.92	1
<613E12A	LR066137	BEZEL - FOG LAMP	LR066137 BEZEL - FOG LAMP Fog Lamp Bzl - Atlas Autobiography, With Front Fog Lamps / LH / From: FG000001	$34.23	1
<613E12A	LR066139	BEZEL - FOG LAMP	LR066139 BEZEL - FOG LAMP Fog Lamp Bzl - Atlas Autobiography, With Front Fog Lamps / RH / From: FG000001	$34.23	1
<613E12B	LR061230	BEZEL - FOG LAMP	LR061230 BEZEL - FOG LAMP RH / From: FG000001	$11.51	1
<613E12B	LR061235	BEZEL - FOG LAMP	LR061235 BEZEL - FOG LAMP LH / From: FG000001	$11.51	1
<613E12C	LR061231	BEZEL - FOG LAMP	LR061231 BEZEL - FOG LAMP RH / From: FG000001	$27.94	1
<613E12C	LR061236	BEZEL - FOG LAMP	LR061236 BEZEL - FOG LAMP LH / From: FG000001	$27.94	1
<50010	LR061252	KIT - LICENCE PLATE	LR061252 KIT - LICENCE PLATE Front Number Plate Plinth-China / From: FG000001 / To: HG379387	$34.39	1
<50010	LR094277	KIT - LICENCE PLATE	LR094277 KIT - LICENCE PLATE Front Number Plate Plinth-China / From: HG379388	$39.71	1
HB1	LR028941	BOLT	LR028941 BOLT M6 x 18MM / From: FG000001	$1.38	1
HC1	LR018173	CLIP - RETAINING IN STOCK	LR018173 CLIP - RETAINING Deployable Scuttle Air Bag / Front Grille / From: FG000001 IN STOCK	$3.20	1
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin / From: FG000001	$2.66	2
HM1	RZM500100	PIN - TRIM	RZM500100 PIN - TRIM 7.15 X 1.5 - 25 Plastic / From: FG000001	$3.73	2
HN1	LR010156	NUT	LR010156 NUT Ejot - Fixing / From: FG000001	$1.50	1
HN2	RYH500480	NUT AND WASHER - HEX. IN STOCK	RYH500480 NUT AND WASHER - HEX. M10 / From: FG000001 IN STOCK	$3.79	8
HS1	LR001590	SCREW AND WASHER IN STOCK	LR001590 SCREW AND WASHER 4.8 X 19MM, Torx / From: FG000001 IN STOCK	$0.89	1
HS2	LR061227	SCREW	LR061227 SCREW 5 X 12MM / From: FG000001	$1.14	1
HS3	DYP000040	SCREW IN STOCK	DYP000040 SCREW M5 / From: FG000001 IN STOCK	$1.22	4
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Push Pin / From: FG000001 IN STOCK	$1.50	4
9C038	ZKC2228	NUT - SPECIAL	ZKC2228 NUT - SPECIAL For Licence Plate / From: FG000001	$3.01	1
17A792	LR059013	REINFORCEMENT - BUMPER BAR BRACKET	LR059013 REINFORCEMENT - BUMPER BAR BRACKET From: FG000001	$705.69	1
17B836	LR061238	BRACKET - BUMPER MOUNTING	LR061238 BRACKET - BUMPER MOUNTING Less External Deployable Device / From: FG000001 / To: HG347884	$162.23	1
17B836	LR084612	BRACKET - BUMPER MOUNTING	LR084612 BRACKET - BUMPER MOUNTING Less External Deployable Device / From: HG347885	$162.23	1
17D957	LR077231	BUMPER - FRONT	LR077231 BUMPER - FRONT Less Front Parking Aid, Rear View Camera-Fixed, Tow Eye Cover - Anthracite, With Front Fog Lamps / Primed / From: FG000001	$938.77	1
17D957	LR077234	BUMPER - FRONT	LR077234 BUMPER - FRONT Rear View Camera-Fixed, Tow Eye Cover - Dark Techno Silver, With Front Fog Lamps, With Front Parking Aid / Primed / From: FG000001 / To: HG379388	$975.79	1
17D957	LR077229	BUMPER - FRONT	LR077229 BUMPER - FRONT Rear View Camera-Fixed, Tow Eye Cover - White Techno Silver, With Front Fog Lamps, With Front Parking Aid / Primed / From: FG000001 / To: HG379387	$975.79	1
17D957	LR077236	BUMPER - FRONT	LR077236 BUMPER - FRONT Surround Camera System, Tow Eye Cover - White Techno Silver, With Front Parking Aid, With Speed Control / Primed / From: HG347884	$975.79	1
17D957	LR077228	BUMPER - FRONT	LR077228 BUMPER - FRONT Less Camera System, Less Speed Control, Tow Eye Cover - Anthracite, With Front Parking Aid / Primed / From: FG000001 / To: HG379387	$990.42	1
17D957	LR077228	BUMPER - FRONT	LR077228 BUMPER - FRONT Less Camera System, Less Speed Control, Tow Eye Cover - Anthracite, With Front Parking Aid / Primed / From: HG379388 / To: JG347859	$990.42	1
17D957	LR105998	BUMPER - FRONT	LR105998 BUMPER - FRONT Front Bumper - Painted Body Colour, Surround Camera Sys+Water Wade Aid, With Front Parking Aid, With Speed Control / From: HG000001	$1,128.43	1
17D957	LR106000	BUMPER - FRONT	LR106000 BUMPER - FRONT Front Bumper - Sport - Body Colour, Rear View Camera-Fixed, With Extra Engine Cooling System, With Front Parking Aid, With Speed Control / Primed / From: KG422269	$1,128.43	1
17D957	LR073264	BUMPER - FRONT	LR073264 BUMPER - FRONT Front Bumper - Sport - Body Colour, Less Camera System, With Standard Engine Cooling System / Primed / From: KG422269 / To: KG446856	$1,052.52	1
17D957	LR077229	BUMPER - FRONT	LR077229 BUMPER - FRONT Less Camera System, Rear Bmp Lwr Valance - White Silver, With Front Fog Lamps, With Front Parking Aid / Primed / From: HG379388 / To: KG446856	$975.79	1
17D957	LR077228	BUMPER - FRONT	LR077228 BUMPER - FRONT Front Bumper - Painted Body Colour, Less Camera System, Less Speed Control, Rear Bumper Lower Valance, With Front Parking Aid / Primed / From: JG347860 / To: KG422269	$990.42	1
17D957	LR077234	BUMPER - FRONT	LR077234 BUMPER - FRONT Less Camera System, Rear Bmp Lwr Valance - Dark Silver, With Front Fog Lamps, With Front Parking Aid / Primed / From: FG000001	$975.79	1
17D957	LR077228	BUMPER - FRONT	LR077228 BUMPER - FRONT Less Speed Control, Rear View Camera-Fixed, Tow Eye Cover - Anthracite, With Front Parking Aid, With Standard Engine Cooling System / Primed / From: KG422269	$990.42	1
2484	LR061223	CAP - POWERWASH JET	LR061223 CAP - POWERWASH JET With Headlamp Power Wash / RH / From: FG000001	$29.00	1
2484	LR061224	CAP - POWERWASH JET	LR061224 CAP - POWERWASH JET Less Headlamp Washer / RH / From: FG000001	$24.80	1
2484	LR061225	CAP - POWERWASH JET	LR061225 CAP - POWERWASH JET With Headlamp Power Wash / LH / From: FG000001	$29.00	1
2484	LR061226	CAP - POWERWASH JET	LR061226 CAP - POWERWASH JET Less Headlamp Washer / LH / From: FG000001	$16.54	1
8200	LR061220	GRILLE - RADIATOR	LR061220 GRILLE - RADIATOR With Brunel Grille / From: FG000001 / To: HG347884	$326.50	1
8200	LR061221	GRILLE - RADIATOR	LR061221 GRILLE - RADIATOR Grille - Dark Atlas / From: FG000001 / To: HG347884	$331.39	1
8200	LR061222	GRILLE - RADIATOR	LR061222 GRILLE - RADIATOR Grille - Atlas / From: FG000001 / To: HG347884	$324.08	1
8200	LR073217	GRILLE - RADIATOR	LR073217 GRILLE - RADIATOR Black Surround - Black Mesh Grille / From: HG347884	$351.13	1
8200	LR097950	GRILLE - RADIATOR	LR097950 GRILLE - RADIATOR With Brunel Grille / From: HG347885	$324.08	1
8200	LR097949	GRILLE - RADIATOR	LR097949 GRILLE - RADIATOR Grille - Dark Atlas / From: HG347885	$324.08	1
8200	LR097948	GRILLE - RADIATOR	LR097948 GRILLE - RADIATOR Grille - Atlas / From: HG347885	$324.08	1
8200	LR066143	GRILLE - RADIATOR	LR066143 GRILLE - RADIATOR With Black Grille / From: FG000001	$223.03	1
17752	LR077882	BRACKET - BUMPER MOUNTING	LR077882 BRACKET - BUMPER MOUNTING RH / From: FG000001	$32.51	1
17752	LR077883	BRACKET - BUMPER MOUNTING	LR077883 BRACKET - BUMPER MOUNTING LH / From: FG000001	$32.51	1
