Dash Panel And Front Fenders (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Dash Panel And Front Fenders (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.50 To Order
Photo Part No Description Price (each) Stock
LR027624 BOLT $3.15 To Order
Photo Part No Description Price (each) Stock
LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD $1.34 IN STOCK
Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR027626 BOLT $2.35 To Order
Photo Part No Description Price (each) Stock
LR028265 NUT $5.86 To Order
Photo Part No Description Price (each) Stock
LR068826 NUT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR077424 NUT $0.61 To Order
Photo Part No Description Price (each) Stock
LR067140 PLUG - BODY SEALING $5.03 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR061383 FENDER - FRONT $341.68 To Order
LR061384 FENDER - FRONT $234.80 IN STOCK
Photo Part No Description Price (each) Stock
LR072486 FINISHER - 'A' PILLAR - FENDER $23.64 To Order
LR072487 FINISHER - 'A' PILLAR - FENDER $23.64 To Order
Photo Part No Description Price (each) Stock
LR072484 BRACKET - MOULDING MOUNTING $20.44 To Order
LR073054 BRACKET - MOULDING MOUNTING $20.40 To Order
Photo Part No Description Price (each) Stock
LR073055 GASKET - INSULATING $24.28 To Order
LR073056 GASKET - INSULATING $24.28 To Order
Photo Part No Description Price (each) Stock
LR061256 BRACKET - FENDER MOUNTING $29.16 To Order
LR061257 BRACKET - FRONT FENDER BRACE $31.98 To Order
LR128478 BRACKET - FENDER MOUNTING $97.86 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR075399 BRACKET - FENDER MOUNTING $28.32 To Order
LR075404 BRACKET - FENDER MOUNTING $28.32 To Order
LR138450 BRACKET - FENDER MOUNTING $29.40 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR058491 INSULATOR - FENDER $207.60 To Order
Photo Part No Description Price (each) Stock
LR061244 BRACKET - FENDER MOUNTING $69.61 To Order
LR061255 BRACKET - FENDER MOUNTING $69.61 To Order
LR128474 BRACKET - FENDER MOUNTING $29.35 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061258 BRACKET - FENDER MOUNTING $50.75 To Order
LR061259 BRACKET - FENDER MOUNTING $50.75 To Order
Photo Part No Description Price (each) Stock
LR128475 BRACKET - FENDER MOUNTING $69.58 To Order
LR128476 BRACKET - FENDER MOUNTING $67.92 To Order
Photo Part No Description Price (each) Stock
LR066244 GRILLE - FENDER - FRONT $158.61 To Order
LR066243 GRILLE - FENDER - FRONT $158.61 To Order
LR058534 GRILLE - FENDER - FRONT $158.61 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR065249 GRILLE - FENDER - FRONT $158.61 To Order
LR065248 GRILLE - FENDER - FRONT $158.61 To Order
View All

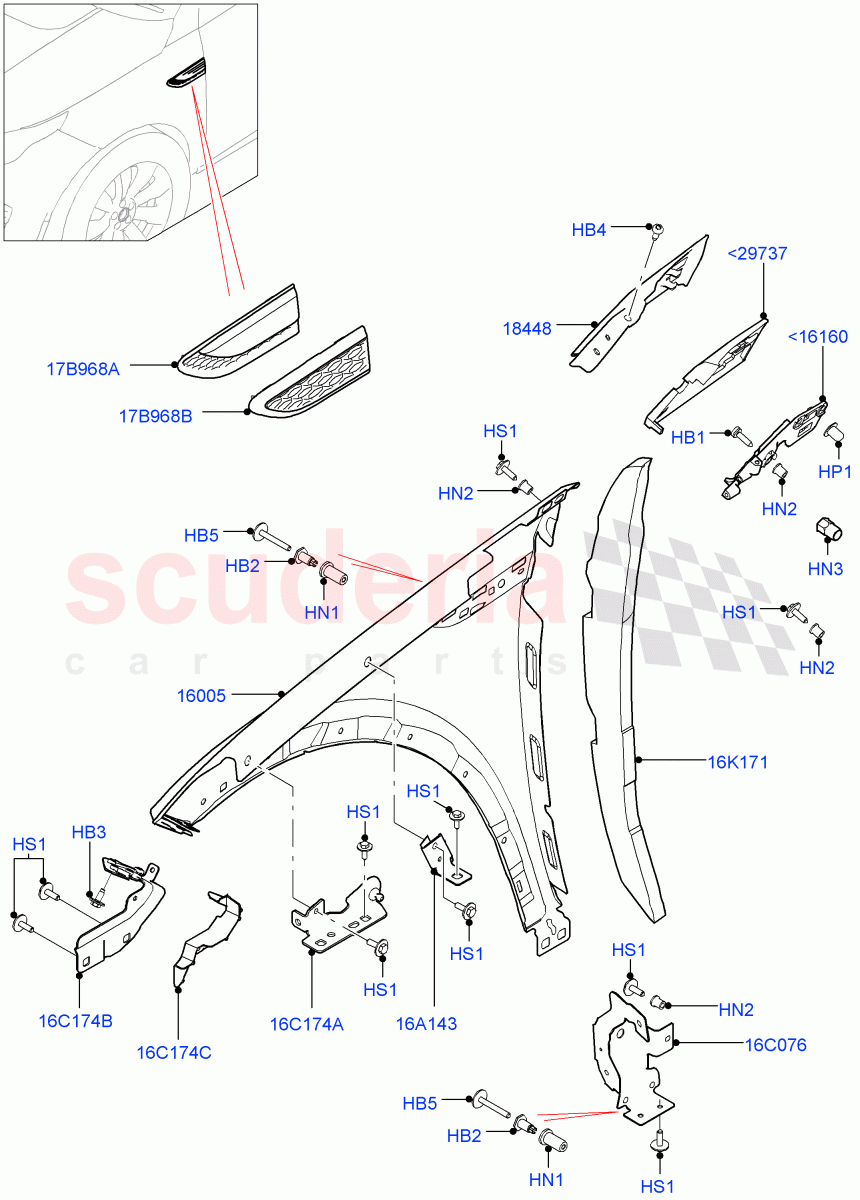

Dash Panel And Front Fenders (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<16160 LR072484
BRACKET - MOULDING MOUNTING
RH, Mounting Bracket / From: FG000001 		$20.44 1
<16160 LR073054
BRACKET - MOULDING MOUNTING
LH, Mounting Bracket / From: FG000001 		$20.40 1
<29737 LR073055
GASKET - INSULATING
RH / From: FG000001 		$24.28 1
<29737 LR073056
GASKET - INSULATING
LH / From: FG000001 		$24.28 1
HB1 LR033002
BOLT AND WASHER - TORX HEAD
M6 X 20.5, Torx / From: FG000001 		$1.50 6
HB2 LR027624
BOLT
M10 / From: FG000001 		$3.15 6
HB3 LR033409
BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD
M6 X 13.5MM / From: FG000001
IN STOCK 		$1.34 2
HB4 XYG500160
BOLT
M6 x 12MM, Torx / From: FG000001
IN STOCK 		$0.92 2
HB5 LR027626
BOLT
M6 X 47.5 / From: FG000001 		$2.35 4
HN1 LR028265
NUT
M10 / From: FG000001 		$5.86 1
HN2 LR068826
NUT
M6 x 15MM / From: FG000001
IN STOCK 		$0.68 6
HN3 LR077424
NUT
Expanding Rivet, M6 x 15MM / From: FG000001 		$0.61 1
HP1 LR067140
PLUG - BODY SEALING
Front Fender, Oval / From: FG000001 		$5.03 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: FG000001
IN STOCK 		$0.96 4
16A143 LR061256
BRACKET - FENDER MOUNTING
RH / From: FG000001 / To: KG446856 		$29.16 1
16A143 LR061257
BRACKET - FRONT FENDER BRACE
LH / From: FG000001 / To: KG446856 		$31.98 1
16A143 LR128478
BRACKET - FENDER MOUNTING
RH / From: KG446857 		$97.86 1
16A143 LR128570
BRACE - FRONT FENDER
LH / From: KG446857 		$109.20 1
16C076 LR075399
BRACKET - FENDER MOUNTING
RH / From: FG000001 / To: KG446856 		$28.32 1
16C076 LR075404
BRACKET - FENDER MOUNTING
LH / From: FG000001 / To: KG446856 		$28.32 1
16C076 LR138450
BRACKET - FENDER MOUNTING
RH / From: KG446857 / To: LG108814 		$29.40 1
16C076 LR140284
BRACKET - FENDER MOUNTING
LH / From: KG446857 		$27.28 1
16C076 LR140283
BRACKET - FENDER MOUNTING
RH / From: LG108815 		$29.40 1
16C174A LR061244
BRACKET - FENDER MOUNTING
RH / From: FG000001 / To: KG446856 		$69.61 1
16C174A LR061255
BRACKET - FENDER MOUNTING
LH / From: FG000001 / To: KG446856 		$69.61 1
16C174A LR128474
BRACKET - FENDER MOUNTING
LH / From: KG446857 		$29.35 1
16C174A LR128473
BRACKET - FENDER MOUNTING
RH / From: KG446857 		$29.35 1
16C174B LR061258
BRACKET - FENDER MOUNTING
RH / From: FG000001 		$50.75 1
16C174B LR061259
BRACKET - FENDER MOUNTING
LH / From: FG000001 		$50.75 1
16C174C LR128475
BRACKET - FENDER MOUNTING
RH / From: KG446857 		$69.58 1
16C174C LR128476
BRACKET - FENDER MOUNTING
LH / From: KG446857 		$67.92 1
16K171 LR058491
INSULATOR - FENDER
Front Fender, RH/LH / From: FG000001 		$207.60 2
17B968A LR066244
GRILLE - FENDER - FRONT
Sports Fender Vent - Black / RH / From: HG347885 / To: KG446856 		$158.61 1
17B968A LR066243
GRILLE - FENDER - FRONT
Sports Fender Vent - Black / LH / From: HG347885 / To: KG446856 		$158.61 1
17B968A LR058534
GRILLE - FENDER - FRONT
Front Fender Gill-Brunel / RH / From: FG000001 / To: KG446856 		$158.61 1
17B968A LR058535
GRILLE - FENDER - FRONT
Front Fender Gill-Dark Atlas / RH / From: FG000001 / To: KG446856 		$158.61 1
17B968A LR058536
GRILLE - FENDER - FRONT
Front Fender Gill-Atlas / RH / From: FG000001 / To: KG446856 		$158.61 1
17B968A LR058537
GRILLE - FENDER - FRONT
Front Fender Gill-Brunel / LH / From: FG000001 / To: KG446856 		$158.61 1
17B968A LR058538
GRILLE - FENDER - FRONT
Front Fender Gill-Dark Atlas / LH / From: FG000001 / To: KG446856 		$158.61 1
17B968A LR058539
GRILLE - FENDER - FRONT
Front Fender Gill-Atlas / LH / From: FG000001 / To: KG446856 		$158.61 1
17B968A LR127383
GRILLE - FENDER - FRONT
Front Fender Gill-Black / RH, Primed / From: KG446857 		$116.70 1
17B968A LR127381
GRILLE - FENDER - FRONT
Frt Fender Gill-Gloss Black / RH, Primed / From: KG446857 		$116.70 1
17B968A LR127382
GRILLE - FENDER - FRONT
Frt Fender Gill-Gloss Black / LH, Primed / From: KG446857 		$116.70 1
17B968A LR127384
GRILLE - FENDER - FRONT
Front Fender Gill-Black / LH, Primed / From: KG446857 		$116.70 1
17B968B LR065249
GRILLE - FENDER - FRONT
Scuttle Plate - Black / RH / From: HG347884 		$158.61 1
17B968B LR065248
GRILLE - FENDER - FRONT
Scuttle Plate - Black, Sports Fender Vent - Black / LH / From: HG347884 		$158.61 1
16005 LR061383
FENDER - FRONT
RH / From: FG000001 		$341.68 1
16005 LR061384
FENDER - FRONT
LH / From: FG000001
IN STOCK 		$234.80 1
18448 LR072486
FINISHER - 'A' PILLAR - FENDER
RH, Primed / From: FG000001 		$23.64 1
18448 LR072487
FINISHER - 'A' PILLAR - FENDER
LH, Primed / From: FG000001 		$23.64 1
