Inlet Manifold (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Inlet Manifold (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR048504 BOLT $3.75 To Order
Photo Part No Description Price (each) Stock
LR022159 SCREW $3.17 To Order
Photo Part No Description Price (each) Stock
LR055363 MANIFOLD - INLET $810.97 To Order
Photo Part No Description Price (each) Stock
LR057234 GASKET - INTAKE MANIFOLD $11.08 IN STOCK
Photo Part No Description Price (each) Stock
LR039520 COVER - ENGINE TOP $146.82 To Order
Photo Part No Description Price (each) Stock
LR052965 KIT - INTAKE PLUG $9.48 To Order
Photo Part No Description Price (each) Stock
LR024989 GASKET - THROTTLE $17.29 To Order
Photo Part No Description Price (each) Stock
LR075167 SENSOR - MANIFOLD ABSOLUTE PRESSURE $139.93 To Order
Photo Part No Description Price (each) Stock
LR025918 STUD - ENGINE COVER $6.81 To Order
Photo Part No Description Price (each) Stock
LR025916 STUD - ENGINE COVER $6.97 To Order
View All

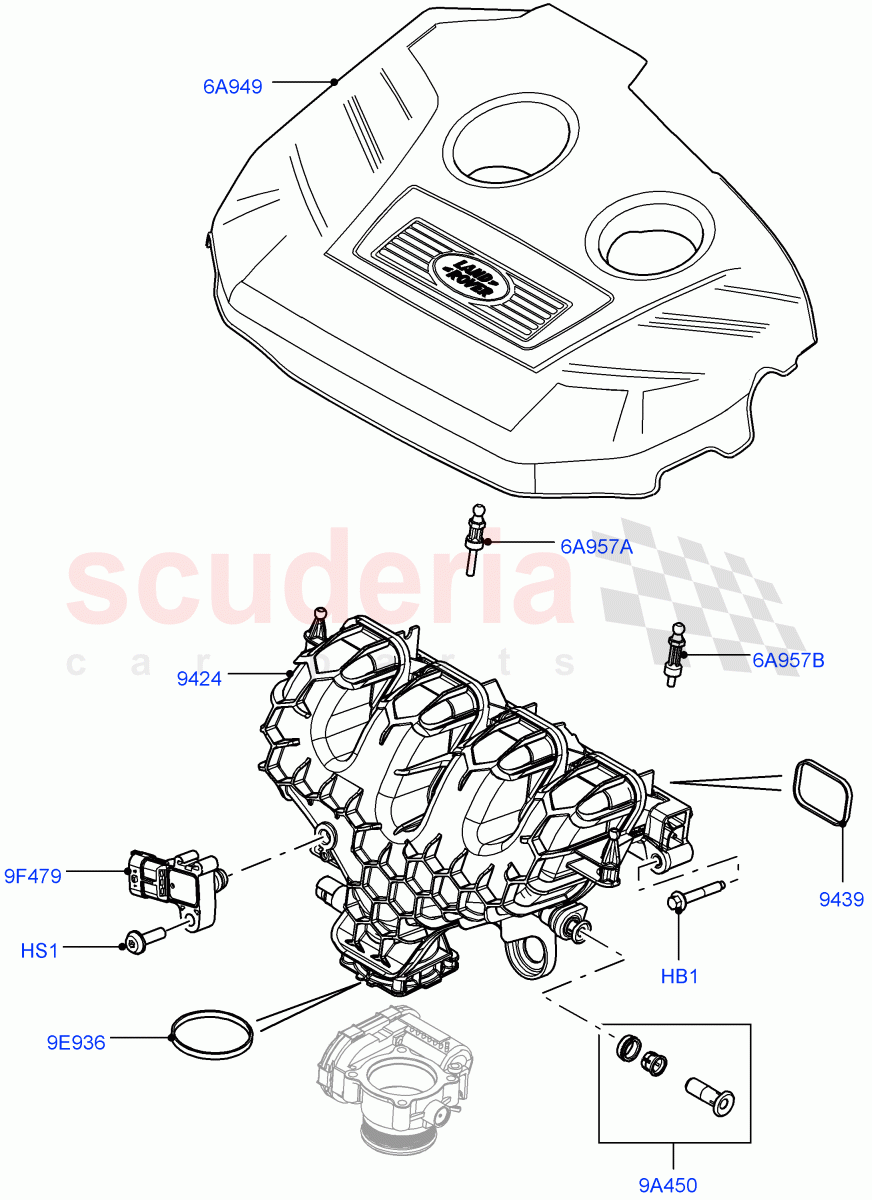

Inlet Manifold (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR048504
BOLT
M8 x 55MM, Manifold To Cylinder Head / From: FG000001 		$3.75 5
HS1 LR022159
SCREW
M6 x 25MM, MAP Sensor / From: FG000001 		$3.17 1
6A949 LR039520
COVER - ENGINE TOP
Engine, Land Rover Logo, Top / From: FG000001 		$146.82 1
6A957A LR025918
STUD - ENGINE COVER
RH, Upper Engine Cover Support / From: FG000001 		$6.81 1
6A957B LR025916
STUD - ENGINE COVER
LH, Upper Engine Cover Support / From: FG000001 		$6.97 1
9A450 LR052965
KIT - INTAKE PLUG
From: FG000001 		$9.48 1
9E936 LR024989
GASKET - THROTTLE
Throttle Body To Intake / From: FG000001 		$17.29 1
9F479 LR075167
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / From: FG000001 		$139.93 1
9424 LR055363
MANIFOLD - INLET
From: FG000001 		$810.97 1
9439 LR057234
GASKET - INTAKE MANIFOLD
Manifold To Cylinder Head / From: FG000001
IN STOCK 		$11.08 4
