Cylinder Block And Plugs (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Cylinder Block And Plugs (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000302 BOLT - HEX.HEAD $3.02 To Order
Photo Part No Description Price (each) Stock
LR025378 DOWEL $4.71 To Order
Photo Part No Description Price (each) Stock
LR000376 PLUG - THREADED $9.83 To Order
Photo Part No Description Price (each) Stock
LR004820 PLUG - BLANKING $23.22 To Order
Photo Part No Description Price (each) Stock
LR025380 PLUG - ENGINE $7.37 To Order
Photo Part No Description Price (each) Stock
LR045335 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
LR000622 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR022159 SCREW $3.16 To Order
Photo Part No Description Price (each) Stock
1331241 STUD $1.10 To Order
Photo Part No Description Price (each) Stock
LR048491 DOWEL - PIN $4.03 To Order
Photo Part No Description Price (each) Stock
LR025670 RETAINER AND SEAL - CRANKSHAFT $58.31 To Order
Photo Part No Description Price (each) Stock
LR045099 NOZZLE - PISTON COOLING $40.16 To Order
Photo Part No Description Price (each) Stock
LR025005 SENSOR - ENGINE KNOCK $245.27 To Order
Photo Part No Description Price (each) Stock
LR038756 SENSOR - CRANKSHAFT POSITION - CPS $188.33 To Order
View All

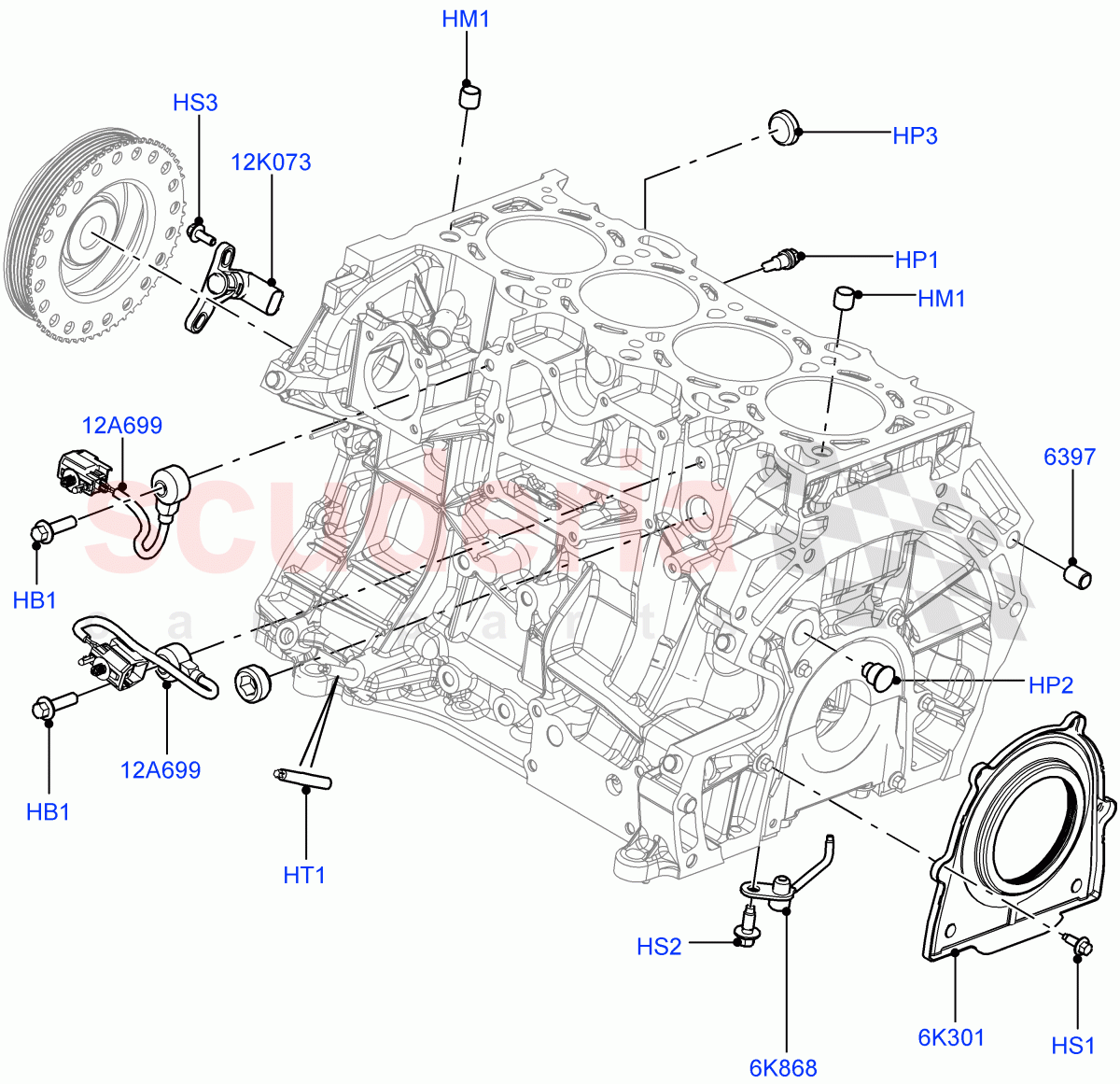

Cylinder Block And Plugs (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000302
BOLT - HEX.HEAD
M8 X 35MM / From: FG000001 		$3.02 2
HM1 LR025378
DOWEL
Pin - Dowell / From: FG000001 		$4.71 2
HP1 LR000376
PLUG - THREADED
M10 X 11.5, Threaded Timing Plug / From: FG000001 		$9.83 1
HP2 LR004820
PLUG - BLANKING
16MM, Blanking / From: FG000001 		$23.22 2
HP3 LR025380
PLUG - ENGINE
25MM / From: FG000001 		$7.37 1
HS1 LR045335
SCREW
M6 X 14MM / From: FG000001 		$2.47 6
HS2 LR000622
SCREW
M6 x 12MM, Oil Lubrication Jet / From: FG000001 		$0.61 4
HS3 LR022159
SCREW
M6 x 25MM, Sensor - Crankshaft Position - CPS / From: FG000001 		$3.16 2
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: FG000001 		$1.10 1
6K301 LR025670
RETAINER AND SEAL - CRANKSHAFT
From: FG000001 		$58.31 1
6K868 LR045099
NOZZLE - PISTON COOLING
From: FG000001 		$40.16 4
12A699 LR025005
SENSOR - ENGINE KNOCK
From: FG000001 		$245.27 2
12K073 LR038756
SENSOR - CRANKSHAFT POSITION - CPS
Sensor - Crankshaft Position - CPS / From: FG000001 		$188.33 1
6397 LR048491
DOWEL - PIN
12.7 X 14.5MM, Clutch Housing To Transmission / From: FG000001 		$4.03 2
