Name: Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK))
Rating: 4.5 (1 reviews)

Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK))

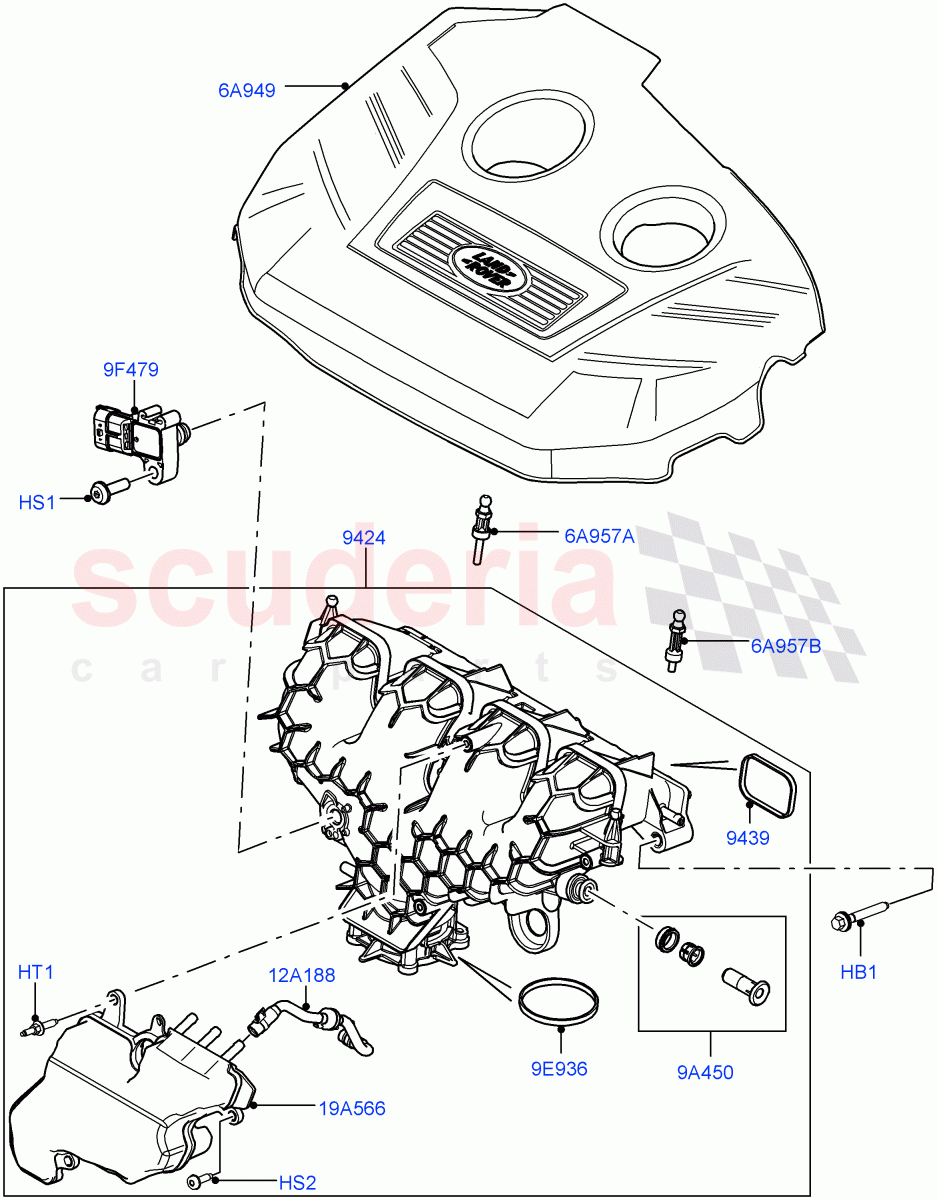

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048504	BOLT	$3.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049871	SCREW	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049870	STUD	$9.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049640	MANIFOLD - INLET	$1,029.18	To Order
	LR077856	MANIFOLD - INLET	$714.37	To Order
	LR083482	MANIFOLD - INLET	$753.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057234	GASKET - INTAKE MANIFOLD	$11.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR039520	COVER - ENGINE TOP	$146.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052965	KIT - INTAKE PLUG	$9.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040241	GASKET - THROTTLE	$11.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$66.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049643	HOSE - VACUUM CONNECTING	$43.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049651	RESERVOIR - VACUUM	$219.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025918	STUD - ENGINE COVER	$6.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR048504	BOLT	LR048504 BOLT M8 x 55MM, Manifold To Cylinder Head	$3.75	5
HS1	LR022159	SCREW	LR022159 SCREW M6 x 25MM, MAP Sensor	$3.17	1
HS2	LR049871	SCREW	LR049871 SCREW M6 X 20MM	$3.95	2
HT1	LR049870	STUD	LR049870 STUD M5 X 12MM, M6 X 20MM, Reservoir	$9.13	1
6A949	LR039520	COVER - ENGINE TOP	LR039520 COVER - ENGINE TOP Engine, Land Rover Logo, Top	$146.82	1
6A957A	LR025918	STUD - ENGINE COVER	LR025918 STUD - ENGINE COVER RH, Upper Engine Cover Support	$6.81	1
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER LH, Upper Engine Cover Support	$6.97	1
9A450	LR052965	KIT - INTAKE PLUG	LR052965 KIT - INTAKE PLUG	$9.48	1
9E936	LR040241	GASKET - THROTTLE	LR040241 GASKET - THROTTLE Throttle Body To Intake	$11.82	1
9F479	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR038762 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP)	$66.32	1
12A188	LR049643	HOSE - VACUUM CONNECTING	LR049643 HOSE - VACUUM CONNECTING Vacuum Reservoir Connection	$43.77	1
19A566	LR049651	RESERVOIR - VACUUM	LR049651 RESERVOIR - VACUUM	$219.11	1
9424	LR049640	MANIFOLD - INLET	LR049640 MANIFOLD - INLET To: FH501000	$1,029.18	1
9424	LR077856	MANIFOLD - INLET	LR077856 MANIFOLD - INLET From: FH501001 / To: FH504177	$714.37	1
9424	LR083482	MANIFOLD - INLET	LR083482 MANIFOLD - INLET From: FH504178	$753.85	1
9439	LR057234	GASKET - INTAKE MANIFOLD IN STOCK	LR057234 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head IN STOCK	$11.08	4

Inlet Manifold (2.0L 16V Tivct T/C Gen2 Petrol, Halewood (Uk))

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK))
