Turbocharger (Lubrication And Cooling) (2.0L I4 Dsl High Dohc Aj200) ((V) Fromjh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Turbocharger (Lubrication And Cooling) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMJH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073688 O-RING $3.99 IN STOCK
Photo Part No Description Price (each) Stock
LR073687 O-RING $29.55 To Order
Photo Part No Description Price (each) Stock
LR073686 SCREW $2.49 To Order
LR073686 SCREW $2.49 To Order
Photo Part No Description Price (each) Stock
LR073671 WASHER - COPPER $4.69 IN STOCK
Photo Part No Description Price (each) Stock
LR094519 HOSE - OIL RETURN $45.91 To Order
Photo Part No Description Price (each) Stock
LR094530 HOSE - OIL RETURN $60.52 To Order
Photo Part No Description Price (each) Stock
LR094529 PIPE - OIL FEED $63.97 To Order
Photo Part No Description Price (each) Stock
LR106368 PIPE - OIL FEED $62.58 To Order
LR094521 PIPE - OIL FEED $71.26 To Order
Photo Part No Description Price (each) Stock
LR094520 HOSE - INTERCOOLER $87.73 To Order
Photo Part No Description Price (each) Stock
LR094525 CONNECTION - WATER $47.64 To Order
View All

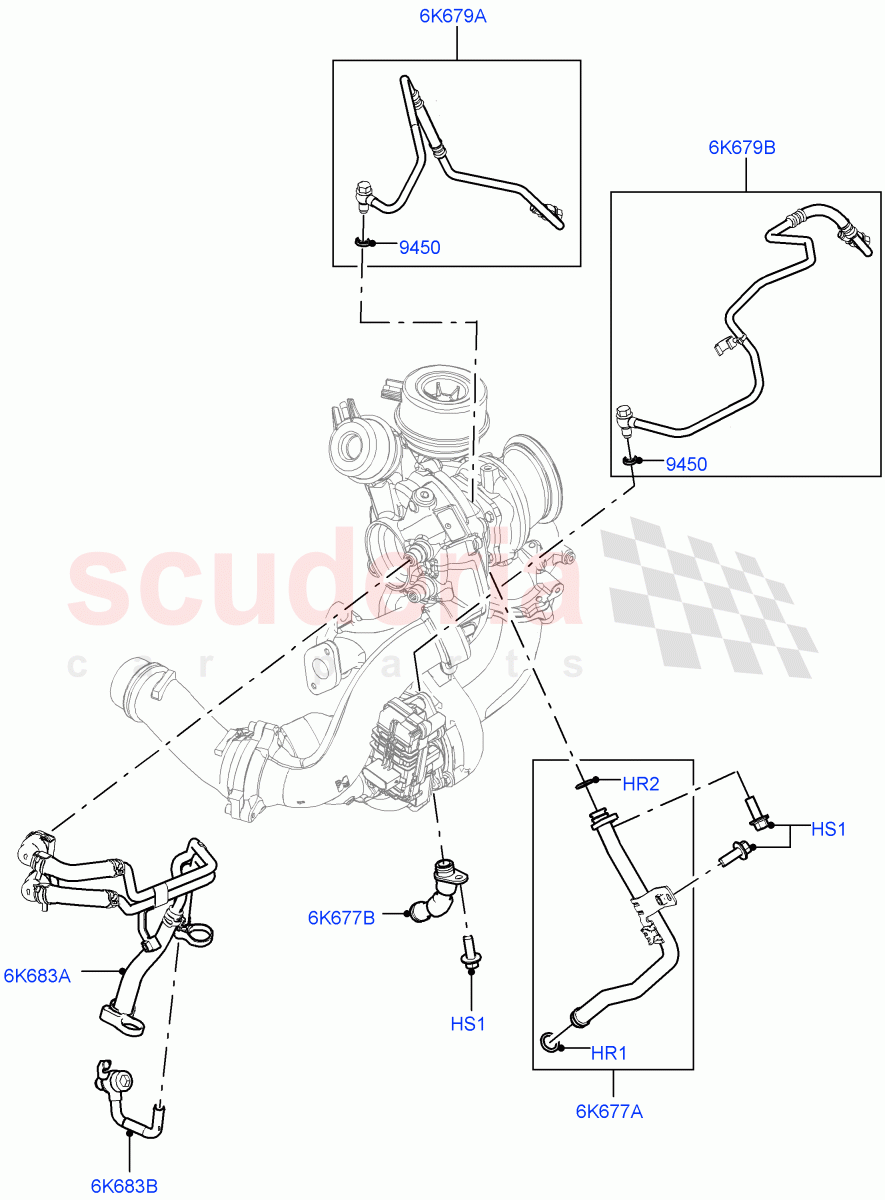

Turbocharger (Lubrication And Cooling) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMJH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR073688
O-RING
15 X 3MM, Lower / From: JH000001
IN STOCK 		$3.99 1
HR2 LR073687
O-RING
14.3 x 2.4, Upper / From: JH000001 		$29.55 1
HS1 LR073686
SCREW
Drain, M6 X 16MM / From: JH000001 		$2.49 2
HS1 LR073686
SCREW
Bracket, M6 X 16MM / From: JH000001 		$2.49 1
6K677A LR094519
HOSE - OIL RETURN
Cylinder Block, Low Pressure Turbocharger / From: JH000001 		$45.91 1
6K677B LR094530
HOSE - OIL RETURN
Cylinder Block, High Pressure Turbocharger / From: JH000001 		$60.52 1
6K679A LR094529
PIPE - OIL FEED
Low Pressure Turbocharger / From: JH000001 		$63.97 1
6K679B LR106368
PIPE - OIL FEED
High Pressure Turbocharger / From: JH735726 		$62.58 1
6K679B LR094521
PIPE - OIL FEED
High Pressure Turbocharger / From: JH000001 / To: JH735725 		$71.26 1
6K683A LR094520
HOSE - INTERCOOLER
Hose Water Inlet To Turbocharger, Hose Water Outlet From Turbocharger, Low Pressure Turbocharger / From: JH000001 		$87.73 1
6K683B LR094525
CONNECTION - WATER
Cylinder Block, Hose Water Outlet From Turbocharger / From: JH000001 		$47.64 1
9450 LR073671
WASHER - COPPER
Banjo Washer, Cooling For Turbocharger, Requires 2 Pcs Per Banjo-Bolt / From: JH000001
IN STOCK 		$4.69 4
