Fuel Filter (2.0L I4 Dsl High Dohc Aj200, Halewood (Uk), Fuel Tank-Diesel With Filters, 2.0L I4 Dsl...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Filter (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), Fuel Tank-Diesel With Filters, 2.0L I4 DSL...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR051520 CLIP - SINGLE $3.51 To Order
Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE $2.36 To Order
LR126221 CLIP - DOUBLE $2.66 To Order
Photo Part No Description Price (each) Stock
LR105597 CLIP $5.94 To Order
Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED $1.85 IN STOCK
Photo Part No Description Price (each) Stock
LR174268 Screw $2.29 To Order
Photo Part No Description Price (each) Stock
LR082730 STUD $2.06 To Order
Photo Part No Description Price (each) Stock
LR084092 TUBE - FUEL FILTER TO FUEL COOLER $35.14 To Order
LR110379 TUBE - FUEL FILTER TO FUEL COOLER $55.59 To Order
Photo Part No Description Price (each) Stock
LR094192 BRACKET - FUEL FILTER $41.43 To Order
LR116053 BRACKET - FUEL FILTER $45.30 To Order
LR137039 BRACKET - FUEL FILTER $45.30 To Order
Photo Part No Description Price (each) Stock
LR084123 TUBE - FUEL FEED $60.30 To Order
LR114310 TUBE - FUEL FEED $97.87 To Order
Photo Part No Description Price (each) Stock
LR079995 FOAM PAD - ENERGY ABSORBING $8.32 To Order
Photo Part No Description Price (each) Stock
LR084125 FILTER - FUEL $42.18 To Order
Photo Part No Description Price (each) Stock
202123503 FILTER - FUEL - PRIMARY $84.63 IN STOCK
202123503 FILTER - FUEL - PRIMARY $84.63 IN STOCK
202123503 FILTER - FUEL - PRIMARY $84.63 IN STOCK
Photo Part No Description Price (each) Stock
LR084103 TUBE - FUEL FILTER TO FUEL PUMP $34.88 To Order
LR095799 TUBE - FUEL FILTER TO FUEL PUMP $34.74 To Order
LR110242 TUBE - FUEL FILTER TO FUEL PUMP $45.77 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073716 TUBE - FUEL FILTER TO FUEL PUMP $83.35 To Order
LR083488 TUBE - FUEL FILTER TO FUEL PUMP $79.65 To Order
Photo Part No Description Price (each) Stock
LR089533 FUEL PUMP AND FILTER $523.12 To Order
LR095800 FUEL PUMP AND FILTER $447.57 To Order
LR104013 FUEL PUMP AND FILTER $504.21 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR095802 TUBE - FUEL FILTER TO FUEL PUMP $33.46 To Order
LR110380 TUBE - FUEL FILTER TO FUEL PUMP $40.66 To Order
Photo Part No Description Price (each) Stock
LR078970 BRACKET - SUPPORT $5.90 To Order
Photo Part No Description Price (each) Stock
LR154223 PUMP - FUEL $281.06 To Order
Photo Part No Description Price (each) Stock
LR084744 TUBE - FUEL SUPPLY AND VAPOUR $224.46 To Order
LR095801 TUBE - FUEL SUPPLY AND VAPOUR $234.53 To Order
Photo Part No Description Price (each) Stock
LR073697 TUBE - FUEL RETURN $55.87 To Order
LR083487 TUBE - FUEL RETURN $56.66 To Order
LR095136 TUBE - FUEL RETURN $54.35 To Order
Photo Part No Description Price (each) Stock
LR105421 SENSOR - WATER DETECTOR $119.65 To Order
Photo Part No Description Price (each) Stock
LR084122 TUBE - FUEL RETURN $19.11 To Order
Photo Part No Description Price (each) Stock
LR089534 TUBE - FUEL FILTER TO FUEL PUMP $54.11 To Order
Photo Part No Description Price (each) Stock
LR086425 KIT - FUEL INLET/OUTLET $174.97 To Order
LR095803 KIT - FUEL INLET/OUTLET $155.04 To Order
Photo Part No Description Price (each) Stock
LR093162 LINK HARNESS - DIRTY FUEL $122.56 To Order
View All

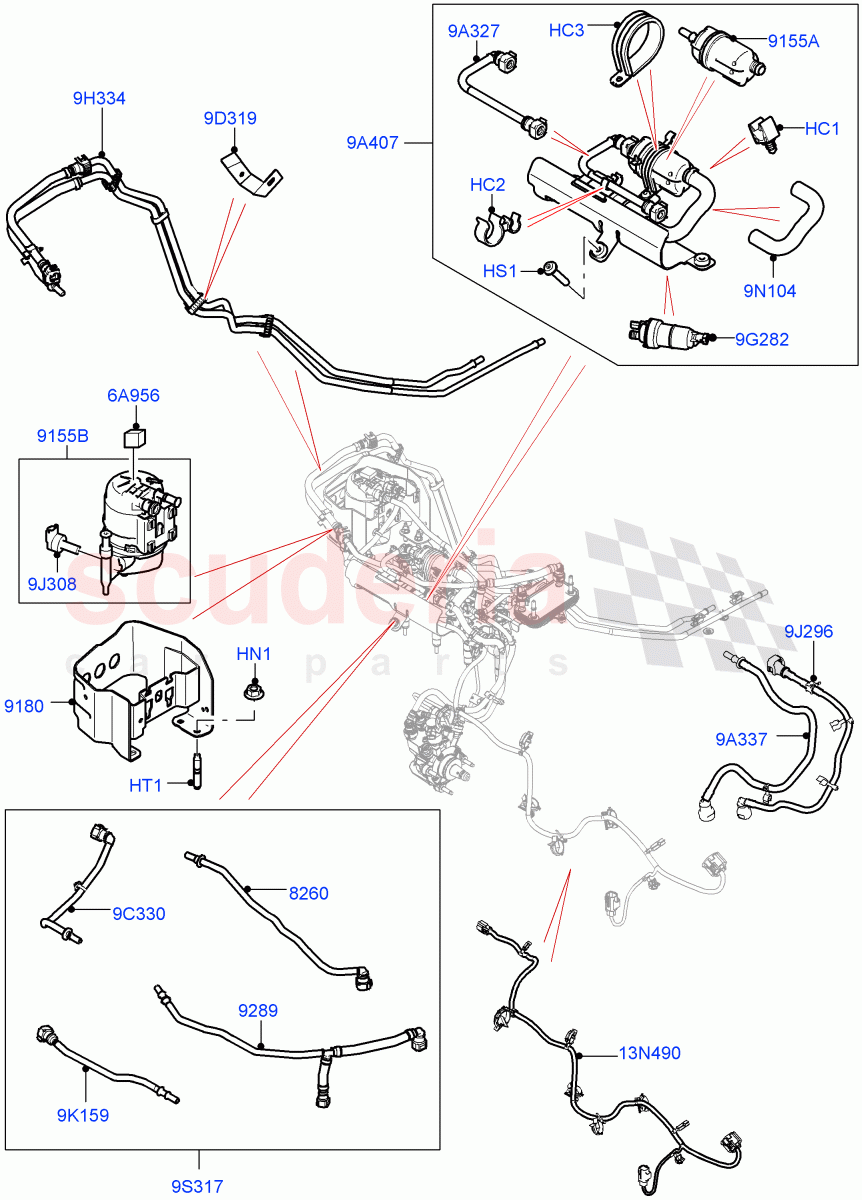

Fuel Filter (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), Fuel Tank-Diesel With Filters, 2.0L I4 DSL MID DOHC AJ200) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR051520
CLIP - SINGLE
For Fuel Tube 		$3.51 1
HC2 LR049401
CLIP - DOUBLE
2.0L I4 DSL MID DOHC AJ200 / Double 		$2.36 1
HC2 LR126221
CLIP - DOUBLE
2.0L I4 DSL HIGH DOHC AJ200 / Double 		$2.66 1
HC3 LR105597
CLIP
For Fuel Filter 		$5.94 1
HN1 LR019197
NUT - FLANGED
Domed Type, M8
IN STOCK 		$1.85 3
HS1 LR174268
Screw
For Fuel Pump Bracket 		$2.29 3
HT1 LR082730
STUD
M8 X 21.5MM + M8 X 22MM 		$2.06 3
6A956 LR079995
FOAM PAD - ENERGY ABSORBING 		$8.32 1
9A327 LR084103
TUBE - FUEL FILTER TO FUEL PUMP
From Fuel Filter To Fuel Pump / To: HH659483 		$34.88 1
9A327 LR095799
TUBE - FUEL FILTER TO FUEL PUMP
2.0L I4 DSL MID DOHC AJ200 / From Fuel Filter To Fuel Pump / From: HH659484 / To: JH744224 		$34.74 1
9A327 LR110242
TUBE - FUEL FILTER TO FUEL PUMP
From Fuel Filter To Fuel Pump / From: JH744225 		$45.77 1
9A327 LR110242
TUBE - FUEL FILTER TO FUEL PUMP
2.0L I4 DSL HIGH DOHC AJ200 / From Fuel Filter To Fuel Pump / From: HH659484 / To: JH744224 		$45.77 1
9A337 LR073716
TUBE - FUEL FILTER TO FUEL PUMP
From: GH000001 / To: GH550179 		$83.35 1
9A337 LR083488
TUBE - FUEL FILTER TO FUEL PUMP
From: GH550180 		$79.65 1
9A407 LR089533
FUEL PUMP AND FILTER
To: HH659483 		$523.12 1
9A407 LR095800
FUEL PUMP AND FILTER
From: HH659484 / To: HH699508 		$447.57 1
9A407 LR104013
FUEL PUMP AND FILTER
2.0L I4 DSL MID DOHC AJ200 / From: HH699509 / To: JH744224 		$504.21 1
9A407 LR110243
FUEL PUMP AND FILTER
2.0L I4 DSL MID DOHC AJ200 / From: JH744225 / To: JH745225 		$447.28 1
9A407 LR154224
FUEL PUMP AND FILTER
2.0L I4 DSL HIGH DOHC AJ200 / From: HH699509 / To: MH882843
IN STOCK 		$447.28 1
9A407 LR154224
FUEL PUMP AND FILTER
2.0L I4 DSL MID DOHC AJ200 / From: JH745226 / To: MH882843
IN STOCK 		$447.28 1
9A407 LR154224
FUEL PUMP AND FILTER
From: MH882844
IN STOCK 		$447.28 1
9C330 LR095802
TUBE - FUEL FILTER TO FUEL PUMP
2.0L I4 DSL MID DOHC AJ200 / From Fuel Filter To Fuel Pump 		$33.46 1
9C330 LR110380
TUBE - FUEL FILTER TO FUEL PUMP
2.0L I4 DSL HIGH DOHC AJ200 / From Fuel Filter To Fuel Pump 		$40.66 1
9D319 LR078970
BRACKET - SUPPORT 		$5.90 1
9G282 LR154223
PUMP - FUEL 		$281.06 1
9H334 LR084744
TUBE - FUEL SUPPLY AND VAPOUR
To: HH712487 		$224.46 1
9H334 LR095801
TUBE - FUEL SUPPLY AND VAPOUR
From: HH712488 		$234.53 1
9J296 LR073697
TUBE - FUEL RETURN
From: GH000001 / To: GH550179 		$55.87 1
9J296 LR083487
TUBE - FUEL RETURN
From: GH550180 / To: GH999999 		$56.66 1
9J296 LR095136
TUBE - FUEL RETURN
From: HH000001 		$54.35 1
9J308 LR105421
SENSOR - WATER DETECTOR
Sensor - Water Detector / From: GH000001 		$119.65 1
9K159 LR084122
TUBE - FUEL RETURN 		$19.11 1
9N104 LR089534
TUBE - FUEL FILTER TO FUEL PUMP 		$54.11 1
9S317 LR086425
KIT - FUEL INLET/OUTLET
4 Piece Kit / To: HH662659 		$174.97 1
9S317 LR095803
KIT - FUEL INLET/OUTLET
4 Piece Kit / From: HH662660 		$155.04 1
13N490 LR093162
LINK HARNESS - DIRTY FUEL 		$122.56 1
8260 LR084092
TUBE - FUEL FILTER TO FUEL COOLER
2.0L I4 DSL MID DOHC AJ200 / For Fuel Cooler 		$35.14 1
8260 LR110379
TUBE - FUEL FILTER TO FUEL COOLER
2.0L I4 DSL HIGH DOHC AJ200 / For Fuel Cooler 		$55.59 1
9155A LR084125
FILTER - FUEL 		$42.18 1
9155B 202123503
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / To: JH775778
IN STOCK 		$84.63 1
9155B 202123503
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: JH775779 / To: MH896338
IN STOCK 		$84.63 1
9155B 202123503
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: MH896339
IN STOCK 		$84.63 1
9180 LR094192
BRACKET - FUEL FILTER
To: KH789298 		$41.43 1
9180 LR116053
BRACKET - FUEL FILTER
From: KH789299 / To: LH846505 		$45.30 1
9180 LR137039
BRACKET - FUEL FILTER
From: LH846506 		$45.30 1
9289 LR084123
TUBE - FUEL FEED
2.0L I4 DSL MID DOHC AJ200 		$60.30 1
9289 LR114310
TUBE - FUEL FEED
2.0L I4 DSL HIGH DOHC AJ200 		$97.87 1
