Name: Fuel Injectors And Pipes (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001)
Rating: 5.0 (1 reviews)

View All

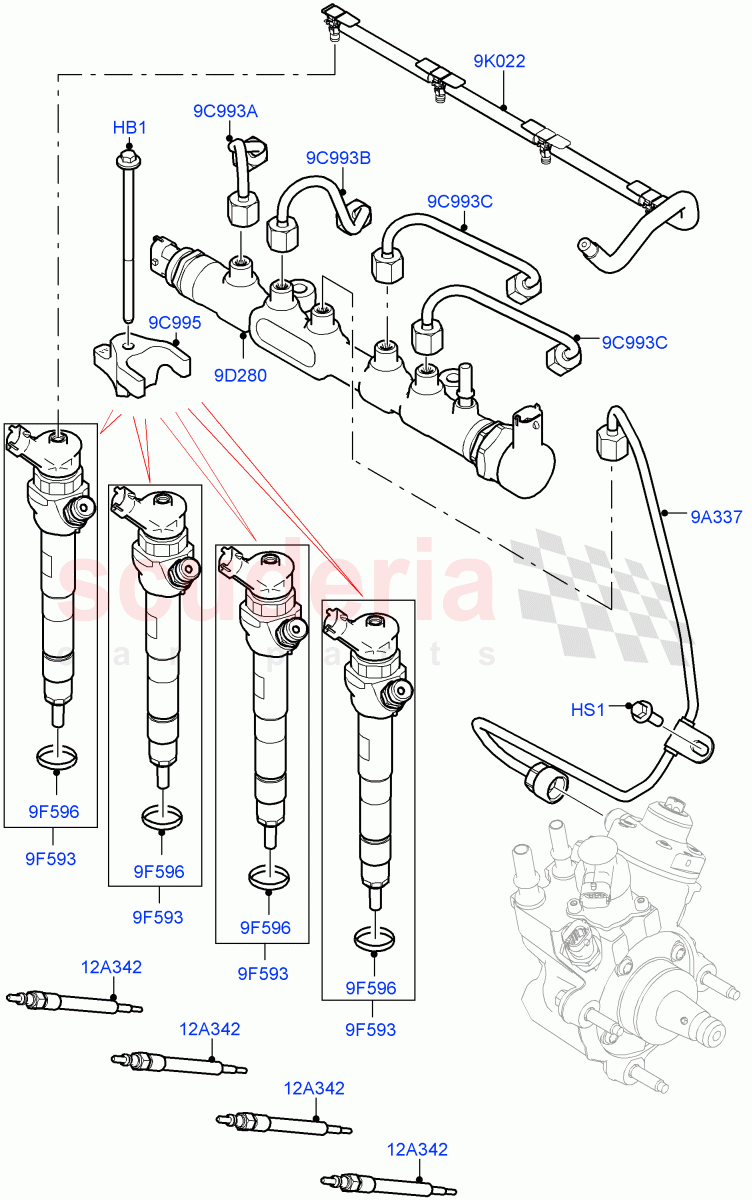

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073719	BOLT	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073707	TUBE - FUEL PUMP	$51.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073696	CLAMP - FUEL INJECTION	$5.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073706	MANIFOLD - FUEL SUPPLY	$420.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125327	INJECTOR - FUEL	$810.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093848	WASHER - SEALING	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073709	TUBE - INJECTION PUMP LEAK-OFF	$80.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128419	GLOW PLUG	$53.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073702	PIPE - FUEL INJECTION	$30.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073703	PIPE - FUEL INJECTION	$30.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073704	PIPE - FUEL INJECTION	$30.79	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR073719	BOLT	LR073719 BOLT M6 X 115 / From: LT000001	$3.69	4
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LT000001 IN STOCK	$1.60	1
9A337	LR073707	TUBE - FUEL PUMP	LR073707 TUBE - FUEL PUMP From: LT000001	$51.31	1
9C993A	LR073702	PIPE - FUEL INJECTION	LR073702 PIPE - FUEL INJECTION Cylinder No.1 / From: LT000001	$30.79	1
9C993B	LR073703	PIPE - FUEL INJECTION	LR073703 PIPE - FUEL INJECTION Cylinder No.2 / From: LT000001	$30.79	1
9C993C	LR073704	PIPE - FUEL INJECTION	LR073704 PIPE - FUEL INJECTION Cylinder No.3, Cylinder No.4 / From: LT000001	$30.79	2
9C995	LR073696	CLAMP - FUEL INJECTION	LR073696 CLAMP - FUEL INJECTION From: LT000001	$5.99	4
9D280	LR073706	MANIFOLD - FUEL SUPPLY	LR073706 MANIFOLD - FUEL SUPPLY 2.0L AJ20D4 Diesel Mid PTA / From: LT000001	$420.78	1
9F593	LR125327	INJECTOR - FUEL	LR125327 INJECTOR - FUEL 2.0L AJ20D4 Diesel Mid PTA / From: LT000001	$810.14	4
9F596	LR093848	WASHER - SEALING	LR093848 WASHER - SEALING From: LT000001	$4.44	4
9K022	LR073709	TUBE - INJECTION PUMP LEAK-OFF	LR073709 TUBE - INJECTION PUMP LEAK-OFF 2.0L AJ20D4 Diesel Mid PTA / Leak Off / From: LT000001	$80.71	1
12A342	LR128419	GLOW PLUG	LR128419 GLOW PLUG From: LT000001	$53.99	4

Fuel Injectors And Pipes (2.0L Aj20D4 Diesel Mid Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]
