Windscreen Washer (Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Windscreen Washer (Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYC100530 CLIP $2.17 IN STOCK
Photo Part No Description Price (each) Stock
LR077424 NUT $0.61 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR128296 JET - WINDSHIELD WASHER $19.09 To Order
LR128295 JET - WINDSHIELD WASHER $27.46 To Order
LR127354 JET - WINDSHIELD WASHER $19.22 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR127658 RESERVOIR - WINDSHIELD WASHER $130.01 To Order
LR127659 HOSE - FILLER PIPE $178.76 To Order
Photo Part No Description Price (each) Stock
LR137658 MOTOR AND PUMP $68.19 To Order
LR137656 MOTOR AND PUMP $64.37 To Order
Photo Part No Description Price (each) Stock
LR127335 HOSE - FILLER PIPE $27.34 To Order
Photo Part No Description Price (each) Stock
LR127338 HOSE - WINDSHIELD WASHER $40.13 To Order
Photo Part No Description Price (each) Stock
LR127339 HOSE - WINDSHIELD WASHER $55.28 To Order
LR127341 HOSE - WINDSHIELD WASHER $57.66 To Order
LR127339 HOSE - WINDSHIELD WASHER $55.28 To Order
Photo Part No Description Price (each) Stock
LR127343 HOSE - WINDSHIELD WASHER $32.76 To Order
LR140319 HOSE - WINDSHIELD WASHER $33.00 To Order
Photo Part No Description Price (each) Stock
LR127344 HOSE - WINDSHIELD WASHER $83.83 To Order
Photo Part No Description Price (each) Stock
LR140005 HOSE - WINDSHIELD WASHER $42.74 To Order
Photo Part No Description Price (each) Stock
LR140006 HOSE - WINDSHIELD WASHER $31.32 To Order
Photo Part No Description Price (each) Stock
LR142260 SENSOR - WASHER FLUID LEVEL $25.20 To Order
LR137547 SENSOR - WASHER FLUID LEVEL $23.75 To Order
Photo Part No Description Price (each) Stock
LR093453 GROMMET - WATER RESERVOIR $8.89 To Order
Photo Part No Description Price (each) Stock
LR127346 HOSE - WINDSHIELD WASHER $47.43 To Order
Photo Part No Description Price (each) Stock
LR127347 HOSE - WINDSHIELD WASHER $32.07 To Order
View All

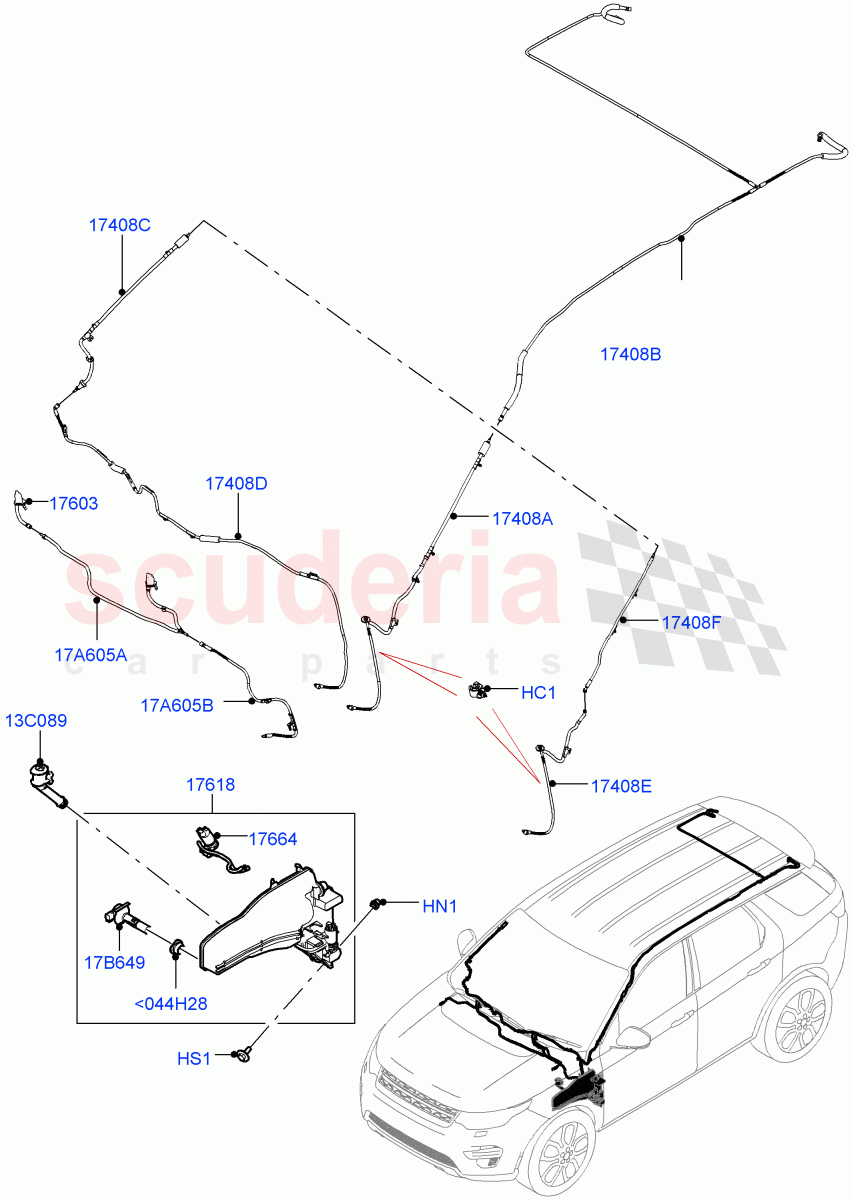

Windscreen Washer (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044H28 LR093453
GROMMET - WATER RESERVOIR
Sealing Ring / From: LH000001 		$8.89 1
HC1 SYC100530
CLIP
Single / From: LH000001
IN STOCK 		$2.17 1
HN1 LR077424
NUT
Expanding Rivet, M6 x 15MM, Reservoir / From: LH000001 		$0.61 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM, Reservoir / From: LH000001
IN STOCK 		$0.96 1
13C089 LR127335
HOSE - FILLER PIPE
From: LH000001 		$27.34 1
17A605A LR127346
HOSE - WINDSHIELD WASHER
From: LH000001 		$47.43 1
17A605B LR127347
HOSE - WINDSHIELD WASHER
From: LH000001 		$32.07 1
17B649 LR142260
SENSOR - WASHER FLUID LEVEL
Low Level / From: LH865596 		$25.20 1
17B649 LR137547
SENSOR - WASHER FLUID LEVEL
Low Level / From: LH000001 / To: LH865595 		$23.75 1
17408A LR127338
HOSE - WINDSHIELD WASHER
LHD / From: LH000001 / To: LH999999 		$40.13 1
17408B LR127339
HOSE - WINDSHIELD WASHER
LHD / From: LH000001 / To: LH999999 		$55.28 1
17408B LR127341
HOSE - WINDSHIELD WASHER
RHD / From: LH000001 / To: LH999999 		$57.66 1
17408B LR127339
HOSE - WINDSHIELD WASHER
From: MH000001 		$55.28 1
17408C LR127343
HOSE - WINDSHIELD WASHER
RHD / From: LH000001 / To: LH865202 		$32.76 1
17408C LR140319
HOSE - WINDSHIELD WASHER
RHD / From: LH865203 / To: LH999999 		$33.00 1
17408D LR127344
HOSE - WINDSHIELD WASHER
RHD / From: LH000001 / To: LH999999 		$83.83 1
17408E LR140005
HOSE - WINDSHIELD WASHER
Lower / From: MH000001 		$42.74 1
17408F LR140006
HOSE - WINDSHIELD WASHER
Upper / From: MH000001 		$31.32 1
17603 LR128296
JET - WINDSHIELD WASHER
Less Heated Washer Jet / RH / From: LH000001 / To: LH871896 		$19.09 1
17603 LR128295
JET - WINDSHIELD WASHER
With Heated Washer Jet / RH / From: LH000001 / To: LH871896 		$27.46 1
17603 LR127354
JET - WINDSHIELD WASHER
Less Heated Washer Jet / LH / From: LH000001 / To: LH871896 		$19.22 1
17603 LR127355
JET - WINDSHIELD WASHER
With Heated Washer Jet / LH / From: LH000001 / To: LH871896 		$27.46 1
17603 LR146761
JET - WINDSHIELD WASHER
Less Heated Washer Jet / LH / From: LH871897 		$25.07 1
17603 LR146762
JET - WINDSHIELD WASHER
With Heated Washer Jet / LH / From: LH871897 		$27.07 1
17603 LR146763
JET - WINDSHIELD WASHER
With Heated Washer Jet / RH / From: LH871897 		$25.79 1
17603 LR146764
JET - WINDSHIELD WASHER
Less Heated Washer Jet / RH / From: LH871897 		$27.07 1
17618 LR127658
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer / From: LH000001 		$130.01 1
17618 LR127659
HOSE - FILLER PIPE
With Headlamp Power Wash / From: LH000001 		$178.76 1
17664 LR137658
MOTOR AND PUMP
With Headlamp Power Wash / From: LH000001 		$68.19 1
17664 LR137656
MOTOR AND PUMP
Less Headlamp Washer / From: LH000001 		$64.37 1
