Cowl/Panel And Related Parts (Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cowl/Panel And Related Parts (Changsu (China)) ((V) FROMKG446857)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR024316 PIN $3.44 IN STOCK
LR147004 RIVET - PLASTIC $1.75 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.51 IN STOCK
Photo Part No Description Price (each) Stock
LR066388 PLUG - DRAIN $14.07 To Order
Photo Part No Description Price (each) Stock
LR133957 COVER - BATTERY $69.41 To Order
Photo Part No Description Price (each) Stock
LR003110 PIPE - DRAIN $8.12 To Order
Photo Part No Description Price (each) Stock
LR111643 SEAL $1.07 To Order
Photo Part No Description Price (each) Stock
LR127288 PANEL - COWL TOP $303.13 To Order
LR127290 PANEL - COWL TOP $290.34 To Order
Photo Part No Description Price (each) Stock
LR124428 BRACKET - BATTERY BOX $9.12 To Order
LR135626 BRACKET - BATTERY BOX $9.12 To Order
Photo Part No Description Price (each) Stock
LR133950 COVER - BRAKE RESERVOIR - COWL TOP $116.54 To Order
LR159618 COVER - BRAKE RESERVOIR - COWL TOP $116.54 To Order
View All

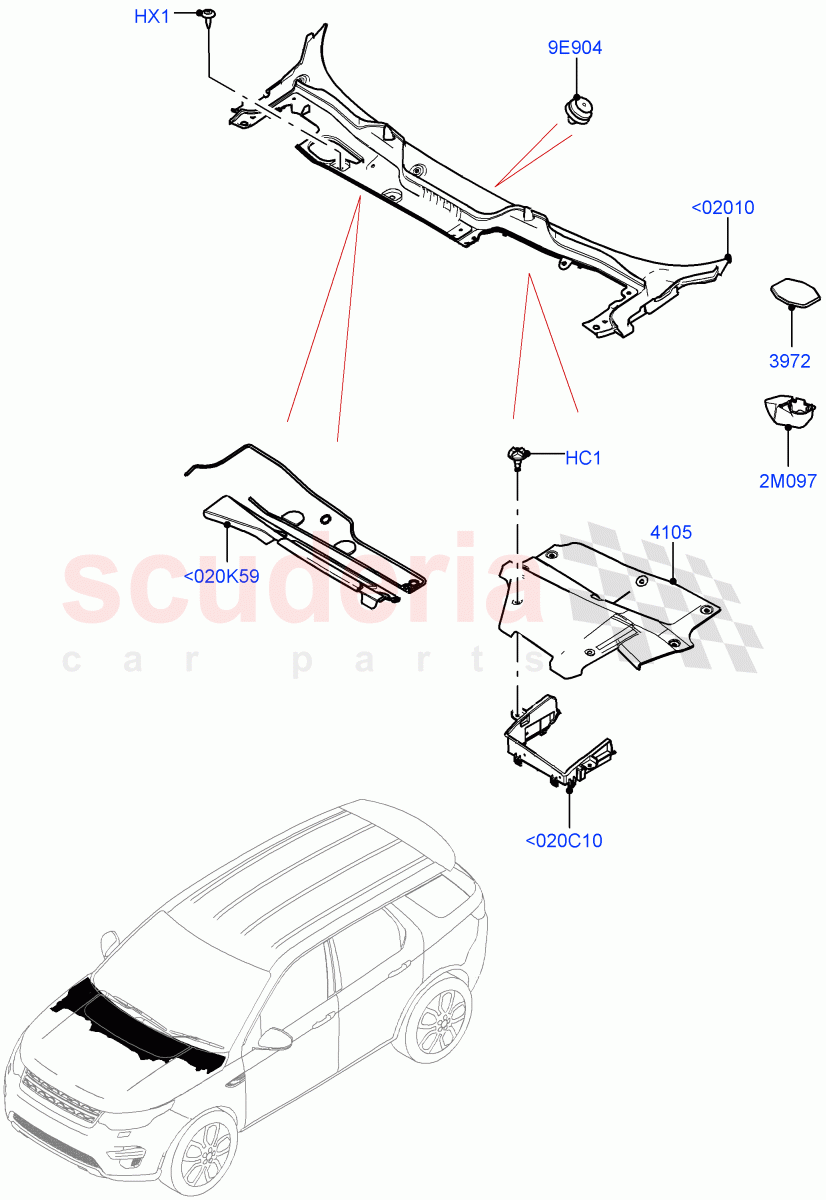

Cowl/Panel And Related Parts (Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<020C10 LR124428
BRACKET - BATTERY BOX
1.5L AJ20P3 Petrol High / From: KG446857 		$9.12 1
<020C10 LR135626
BRACKET - BATTERY BOX
1.5L AJ20P3 Petrol High PHEV / From: KG446857 		$9.12 1
<020K59 LR133950
COVER - BRAKE RESERVOIR - COWL TOP
Cover / From: KG446857 / To: MG131562 		$116.54 1
<020K59 LR159618
COVER - BRAKE RESERVOIR - COWL TOP
Cover / From: MG131563 		$116.54 1
<02010 LR127288
PANEL - COWL TOP
Less Heated Washer Jet / From: KG446857 		$303.13 1
<02010 LR127290
PANEL - COWL TOP
With Heated Washer Jet / From: KG446857 		$290.34 1
HC1 LR024316
PIN
Battery Cover, Rivet Blind 9.4 X 13 / From: KG446857 / To: MG129510
IN STOCK 		$3.44 7
HC1 LR147004
RIVET - PLASTIC
Battery Cover, Rivet Blind 9.4 X 13 / From: MG129511 		$1.75 7
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin / From: KG446857
IN STOCK 		$1.51 2
2M097 LR003110
PIPE - DRAIN
RH/LH / From: KG446857 		$8.12 2
9E904 LR111643
SEAL
From: KG446857 		$1.07 1
3972 LR066388
PLUG - DRAIN
From: KG446857 		$14.07 1
4105 LR133957
COVER - BATTERY
From: KG446857 		$69.41 1
