Luggage Compartment Door (Door And Fixings) (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Luggage Compartment Door (Door And Fixings) (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD $2.01 To Order
Photo Part No Description Price (each) Stock
LR002225 BOLT AND WASHER - HEX.HEAD $4.25 To Order
LR077425 BOLT AND WASHER - HEX.HEAD $2.03 To Order
Photo Part No Description Price (each) Stock
LR138374 CLIP - TAILGATE BLIND $2.29 To Order
Photo Part No Description Price (each) Stock
LR012710 PLUG - BODY SEALING $1.32 To Order
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.39 To Order
Photo Part No Description Price (each) Stock
SGG000020 GROMMET - TRIM PANEL $1.05 To Order
Photo Part No Description Price (each) Stock
LR061391 TAILGATE - LESS HINGES $966.12 To Order
LR133105 TAILGATE - LESS HINGES $1,371.82 To Order
LR139432 TAILGATE - LESS HINGES $1,761.28 To Order
Photo Part No Description Price (each) Stock
LR088322 HINGE - TAILGATE $61.99 To Order
LR088323 HINGE - TAILGATE $59.90 To Order
LR084531 HINGE - TAILGATE $59.90 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR128489 BRACKET - KEY MOUNTING $23.16 To Order
Photo Part No Description Price (each) Stock
LR060855 BUMP STOP - TAILGATE $17.17 To Order
Photo Part No Description Price (each) Stock
LR065838 BRACKET - TAILGATE $34.48 To Order
LR065839 BRACKET - TAILGATE $32.67 To Order
Photo Part No Description Price (each) Stock
LR138284 STUD - BALL $6.48 To Order
LR138284 STUD - BALL $6.48 To Order
LR138284 STUD - BALL $6.48 To Order
Photo Part No Description Price (each) Stock
LR075420 STRUT - TAILGATE $385.73 To Order
LR075419 STRUT - TAILGATE $429.57 To Order
LR104902 STRUT - TAILGATE $389.02 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR058520 STRUT - TAILGATE $72.76 To Order
LR137908 STRUT - TAILGATE $80.74 To Order
LR139131 STRUT - TAILGATE $71.82 To Order
View All

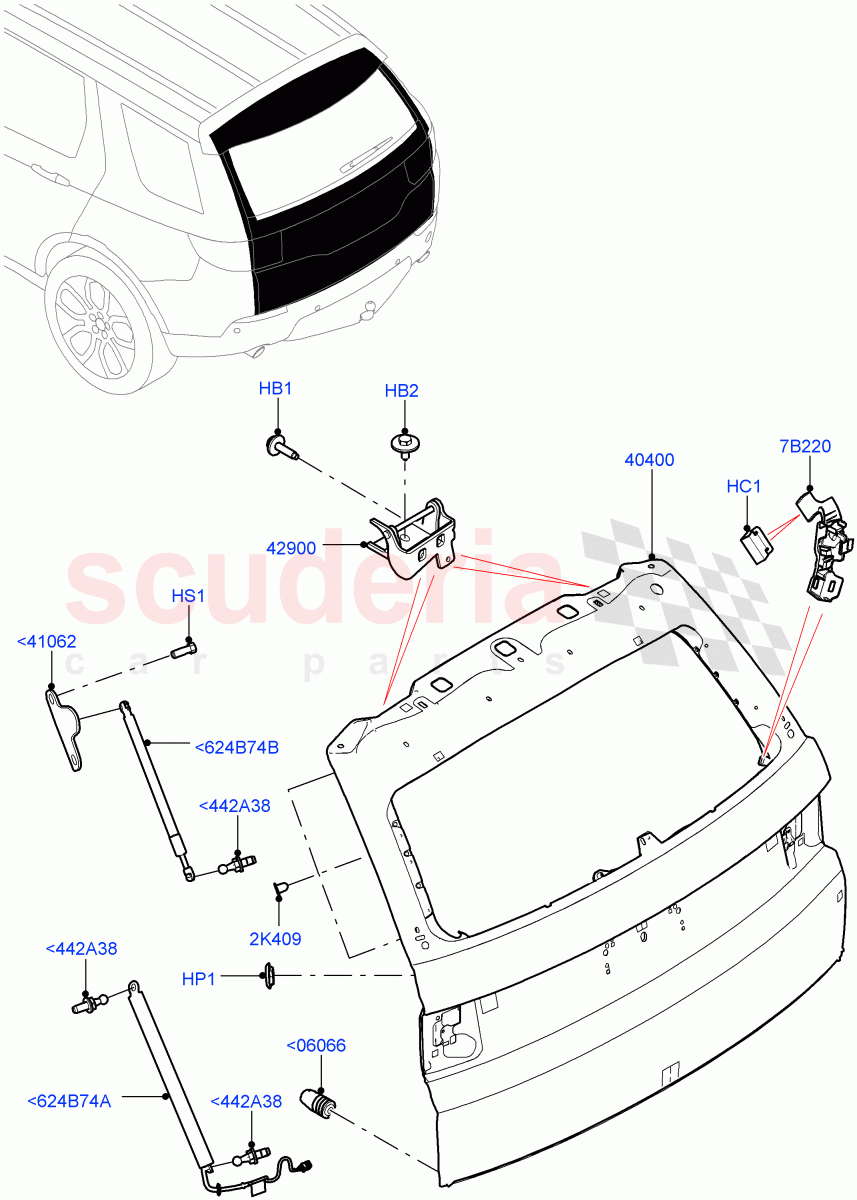

Luggage Compartment Door (Door And Fixings) (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<442A38 LR138284
STUD - BALL
Tailgate - Hands Free / M8 x 19MM / From: FG000001 / To: MG140568 		$6.48 2
<442A38 LR138284
STUD - BALL
Tailgate-Powered Upper / M8 x 19MM / From: FG000001 / To: MG140568 		$6.48 4
<442A38 LR138284
STUD - BALL
With Conventional Tailgate / M8 x 19MM / From: MG140569 		$6.48 2
<624B74A LR075420
STRUT - TAILGATE
Tailgate-Powered Upper / LH / From: FG000001 / To: HG364550 		$385.73 1
<624B74A LR075419
STRUT - TAILGATE
Tailgate-Powered Upper / RH / From: FG000001 / To: HG364550 		$429.57 1
<624B74A LR104902
STRUT - TAILGATE
Tailgate-Powered Upper / RH / From: HG364551 / To: HG390768 		$389.02 1
<624B74A LR104905
STRUT - TAILGATE
Tailgate - Hands Free / LH / From: HG364551 / To: HG390768 		$366.81 1
<624B74A LR138052
STRUT - TAILGATE
Tailgate-Powered Upper / LH / From: KG446857 / To: KG446858 		$454.18 1
<624B74A LR137883
STRUT - TAILGATE
Tailgate-Powered Upper / RH / From: KG446857 / To: KG446858 		$454.18 1
<624B74A LR136576
STRUT - TAILGATE
Tailgate - Hands Free / LH / From: KG430093 / To: KG446856 		$466.69 1
<624B74A LR136575
STRUT - TAILGATE
Tailgate-Powered Upper / RH / From: KG430093 / To: KG446856 		$479.14 1
<624B74A LR160931
LIFT - TAILGATE - ELECTRIC
Tailgate-Powered Upper / LH / From: KG446859 		$479.14 1
<624B74A LR160929
LIFT - TAILGATE - ELECTRIC
Tailgate-Powered Upper / RH / From: KG446859 		$479.14 1
<624B74A LR115493
STRUT - TAILGATE
Tailgate-Powered Upper / RH / From: HG390769 / To: KG430092 		$420.14 1
<624B74A LR115494
STRUT - TAILGATE
Tailgate-Powered Upper / LH / From: HG390769 / To: KG430092 		$378.90 1
<624B74B LR058520
STRUT - TAILGATE
With Conventional Tailgate / RH/LH / From: FG000001 / To: KG446856 		$72.76 2
<624B74B LR137908
STRUT - TAILGATE
With Conventional Tailgate / RH/LH / From: KG446857 / To: LG107500 		$80.74 2
<624B74B LR139131
STRUT - TAILGATE
With Conventional Tailgate / RH/LH / From: LG107500 		$71.82 2
<06066 LR060855
BUMP STOP - TAILGATE
RH/LH / From: FG000001 		$17.17 2
<41062 LR065838
BRACKET - TAILGATE
With Conventional Tailgate / RH / From: FG000001 		$34.48 1
<41062 LR065839
BRACKET - TAILGATE
With Conventional Tailgate / LH / From: FG000001 		$32.67 1
HB1 LR037087
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 30MM / From: FG000001 		$2.01 4
HB2 LR002225
BOLT AND WASHER - HEX.HEAD
M8 X 21MM / From: FG000001 / To: HG347883 		$4.25 2
HB2 LR077425
BOLT AND WASHER - HEX.HEAD
M8 X 21MM / From: HG347884 		$2.03 1
HC1 LR138374
CLIP - TAILGATE BLIND
Vehicle Access-Leisure Activity Key / From: KG446857 		$2.29 1
HP1 LR012710
PLUG - BODY SEALING 		$1.32 2
HS1 RYG500980
SCREW AND WASHER
With Conventional Tailgate / M8 x 24MM, Upper / From: FG000001 		$1.39 2
2K409 SGG000020
GROMMET - TRIM PANEL
With Conventional Tailgate / From: FG000001 		$1.05 10
7B220 LR128489
BRACKET - KEY MOUNTING
Vehicle Access-Leisure Activity Key / From: KG446857 		$23.16 1
40400 LR061391
TAILGATE - LESS HINGES
From: FG000001 / To: KG446856 		$966.12 1
40400 LR133105
TAILGATE - LESS HINGES
From: KG446857 / To: LG111614 		$1,371.82 1
40400 LR139432
TAILGATE - LESS HINGES
From: LG111615 		$1,761.28 1
42900 LR088322
HINGE - TAILGATE
RH / From: FG000001 / To: GG312997 		$61.99 1
42900 LR088323
HINGE - TAILGATE
LH / From: FG000001 / To: GG312997 		$59.90 1
42900 LR084531
HINGE - TAILGATE
LH / From: GG312998 / To: HG347884 		$59.90 1
42900 LR084530
HINGE - TAILGATE
RH / From: GG312998 / To: HG347884 		$59.90 1
42900 LR088322
HINGE - TAILGATE
RH / From: HG347885 		$61.99 1
42900 LR088323
HINGE - TAILGATE
LH / From: HG347885 		$59.90 1
