Name: Inlet Manifold (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001)
Rating: 4.9 (1 reviews)

Inlet Manifold (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Inlet Manifold (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V)...

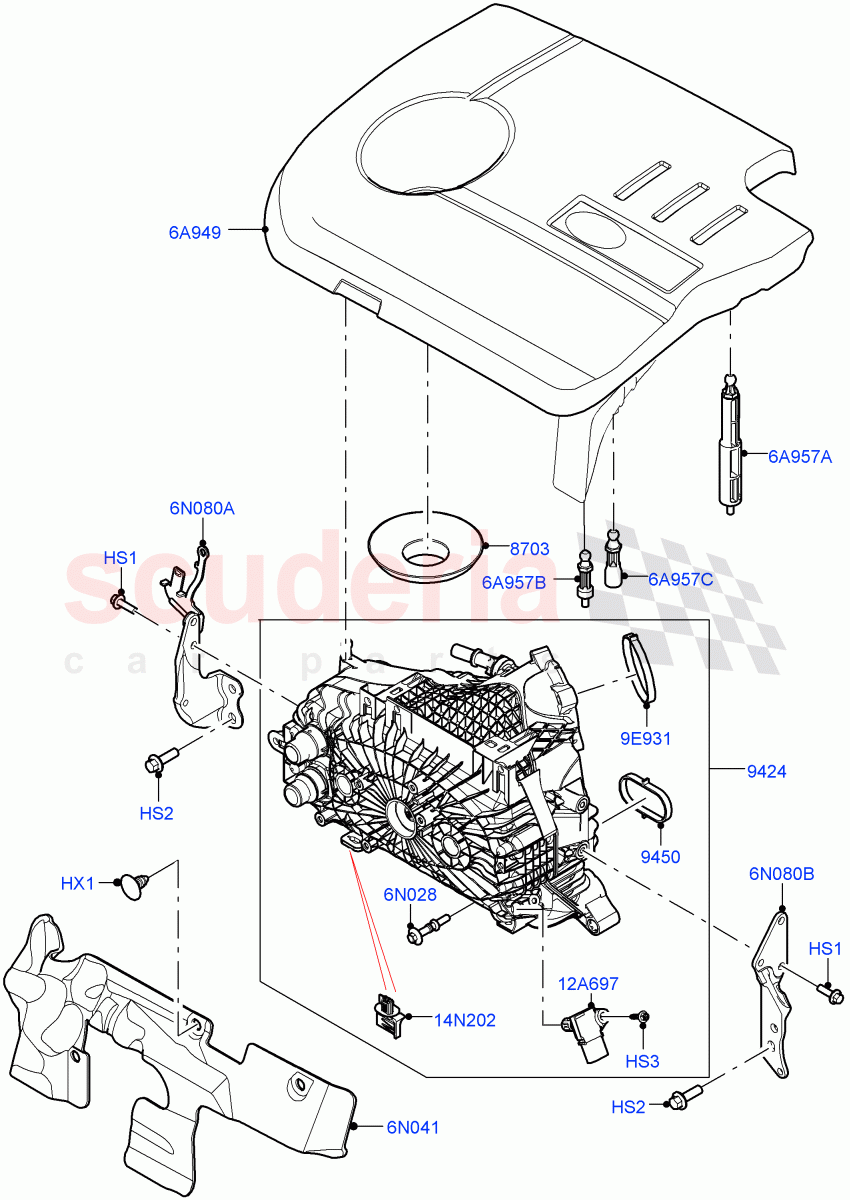

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130401	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$13.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125565	MANIFOLD - INLET	$1,191.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125368	GASKET - INTAKE MANIFOLD	$11.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125482	COVER - ENGINE TOP	$242.11	To Order
	LR146469	COVER - ENGINE TOP	$221.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125369	BOLT - SPECIAL	$9.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125445	INSULATOR - CYLINDER HEAD	$73.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125370	GASKET - THROTTLE	$13.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130316	SENSOR - AIR TEMPERATURE & PRESSURE	$115.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125464	CLIP	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125487	PIN	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125483	STUD - BALL	$2.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126047	BRACKET - MANIFOLD	$48.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126046	BRACKET - MANIFOLD	$85.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LH000001 IN STOCK	$1.60	4
HS2	LR073724	SCREW	LR073724 SCREW M8 X 25MM / From: LH000001	$2.05	4
HS3	LR130401	SCREW	LR130401 SCREW Hexagonal Head, M5 x 20MM / From: LH000001	$0.76	1
HX1	LR126160	PIN - FASTENING IN STOCK	LR126160 PIN - FASTENING 6.5 x 6 / From: LH000001 IN STOCK	$0.59	3
6A949	LR125482	COVER - ENGINE TOP	LR125482 COVER - ENGINE TOP From: LH000001 / To: MH902928	$242.11	1
6A949	LR146469	COVER - ENGINE TOP	LR146469 COVER - ENGINE TOP From: MH902929	$221.03	1
6A957A	LR125487	PIN	LR125487 PIN Rear LH / From: LH000001	$9.51	1
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER Rear RH / From: LH000001	$6.96	1
6A957C	LR125483	STUD - BALL	LR125483 STUD - BALL LH Front / From: LH000001	$2.86	1
6N028	LR125369	BOLT - SPECIAL	LR125369 BOLT - SPECIAL Manifold To Cylinder Head / From: LH000001	$9.14	4
6N041	LR125445	INSULATOR - CYLINDER HEAD	LR125445 INSULATOR - CYLINDER HEAD From: LH000001	$73.80	1
6N080A	LR126047	BRACKET - MANIFOLD	LR126047 BRACKET - MANIFOLD RH / From: LH000001	$48.78	1
6N080B	LR126046	BRACKET - MANIFOLD	LR126046 BRACKET - MANIFOLD LH / From: LH000001	$85.06	1
9E931	LR125370	GASKET - THROTTLE	LR125370 GASKET - THROTTLE Throttle Body To Intake / From: LH000001	$13.56	1
12A697	LR130316	SENSOR - AIR TEMPERATURE & PRESSURE	LR130316 SENSOR - AIR TEMPERATURE & PRESSURE From: LH000001	$115.00	1
14N202	LR125464	CLIP	LR125464 CLIP From: LH000001	$2.85	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: LH000001	$13.40	1
9424	LR125565	MANIFOLD - INLET	LR125565 MANIFOLD - INLET From: LH000001	$1,191.03	1
9450	LR125368	GASKET - INTAKE MANIFOLD	LR125368 GASKET - INTAKE MANIFOLD Inlet Manifold / From: LH000001	$11.23	3

Inlet Manifold (1.5L Aj20P3 Petrol High Phev, Halewood (Uk), 1.5L Aj20P3 Petrol High) ((V)...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Inlet Manifold (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V)...

Add to Shopping Cart
