Name: Cylinder Head (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001)
Rating: 4.3 (1 reviews)

Cylinder Head (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V)...

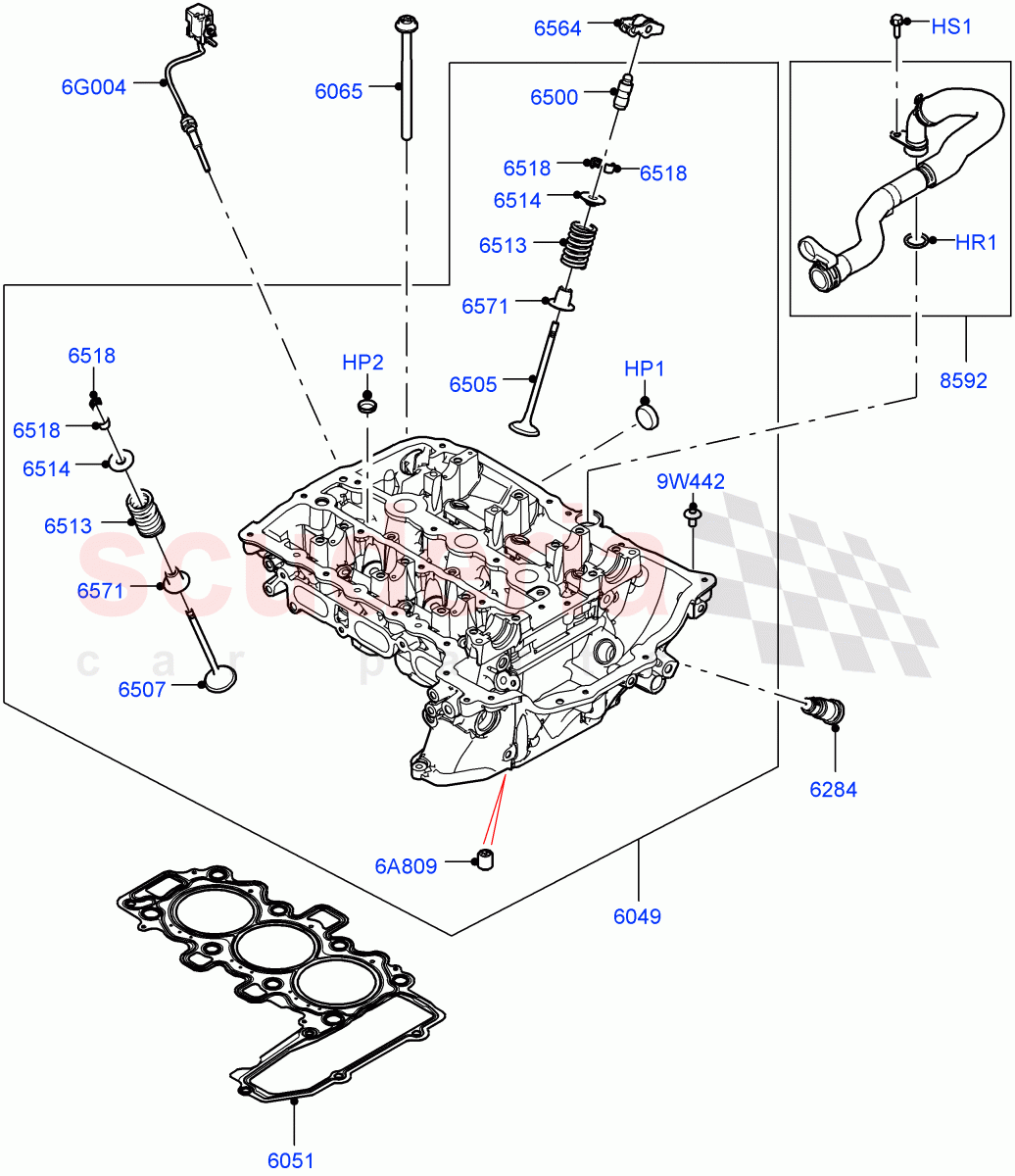

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR170798	PLUG - ENGINE	$4.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170956	Plug	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140261	O-RING	$4.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125329	CYLINDER HEAD	$2,310.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125328	GASKET-CYLINDER HEAD	$163.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091487	BOLT - HEX.HEAD	$12.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125425	TENSIONER - TIMING BELT	$109.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	$50.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134473	VALVE - EXHAUST	$27.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133327	VALVE - INLET	$27.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133326	SPRING - VALVE	$33.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091753	RETAINER - VALVE SPRING - UPPER	$17.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091754	ARM - VALVE ROCKER	$46.18	To Order
	LR163044	ARM - VALVE ROCKER	$43.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116489	SEAL - VALVE STEM	$7.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125392	TUBE - WATER OUTLET	$65.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	$9.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	$49.89	To Order
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	$63.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	$24.77	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HP1	LR170798	PLUG - ENGINE	LR170798 PLUG - ENGINE	$4.34	2
HP2	LR170956	Plug	LR170956 Plug	$0.78	4
HR1	LR140261	O-RING	LR140261 O-RING 19.4 x 3.2 / From: LH000001	$4.26	1
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM, Water Outlet / From: LH000001	$2.35	1
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: LH000001	$9.65	1
6G004	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	LR115083 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: LH000001 / To: MH888870	$49.89	1
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: MH888871	$63.21	1
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain / From: LH000001	$24.77	1
6049	LR125329	CYLINDER HEAD	LR125329 CYLINDER HEAD With Valves / From: LH000001	$2,310.05	1
6051	LR125328	GASKET-CYLINDER HEAD	LR125328 GASKET-CYLINDER HEAD From: LH000001	$163.13	1
6065	LR091487	BOLT - HEX.HEAD	LR091487 BOLT - HEX.HEAD From: LH000001	$12.01	8
6284	LR125425	TENSIONER - TIMING BELT	LR125425 TENSIONER - TIMING BELT Secondary / From: LH000001	$109.54	1
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE From: LH000001	$50.94	12
6505	LR134473	VALVE - EXHAUST	LR134473 VALVE - EXHAUST From: LH000001	$27.88	6
6507	LR133327	VALVE - INLET	LR133327 VALVE - INLET From: LH000001	$27.80	6
6513	LR133326	SPRING - VALVE	LR133326 SPRING - VALVE From: LH000001	$33.50	12
6514	LR091753	RETAINER - VALVE SPRING - UPPER	LR091753 RETAINER - VALVE SPRING - UPPER From: LH000001	$17.04	12
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER From: LH000001	$3.33	24
6564	LR091754	ARM - VALVE ROCKER	LR091754 ARM - VALVE ROCKER From: LH000001 / To: MH902018	$46.18	12
6564	LR163044	ARM - VALVE ROCKER	LR163044 ARM - VALVE ROCKER From: MH902019	$43.53	12
6571	LR116489	SEAL - VALVE STEM IN STOCK	LR116489 SEAL - VALVE STEM From: LH000001 IN STOCK	$7.98	12
8592	LR125392	TUBE - WATER OUTLET	LR125392 TUBE - WATER OUTLET From: LH000001	$65.12	1

Cylinder Head (1.5L Aj20P3 Petrol High Phev, Halewood (Uk), 1.5L Aj20P3 Petrol High) ((V)...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V)...
