Name: Cylinder Head (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)
Rating: 4.1 (1 reviews)

Cylinder Head (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)

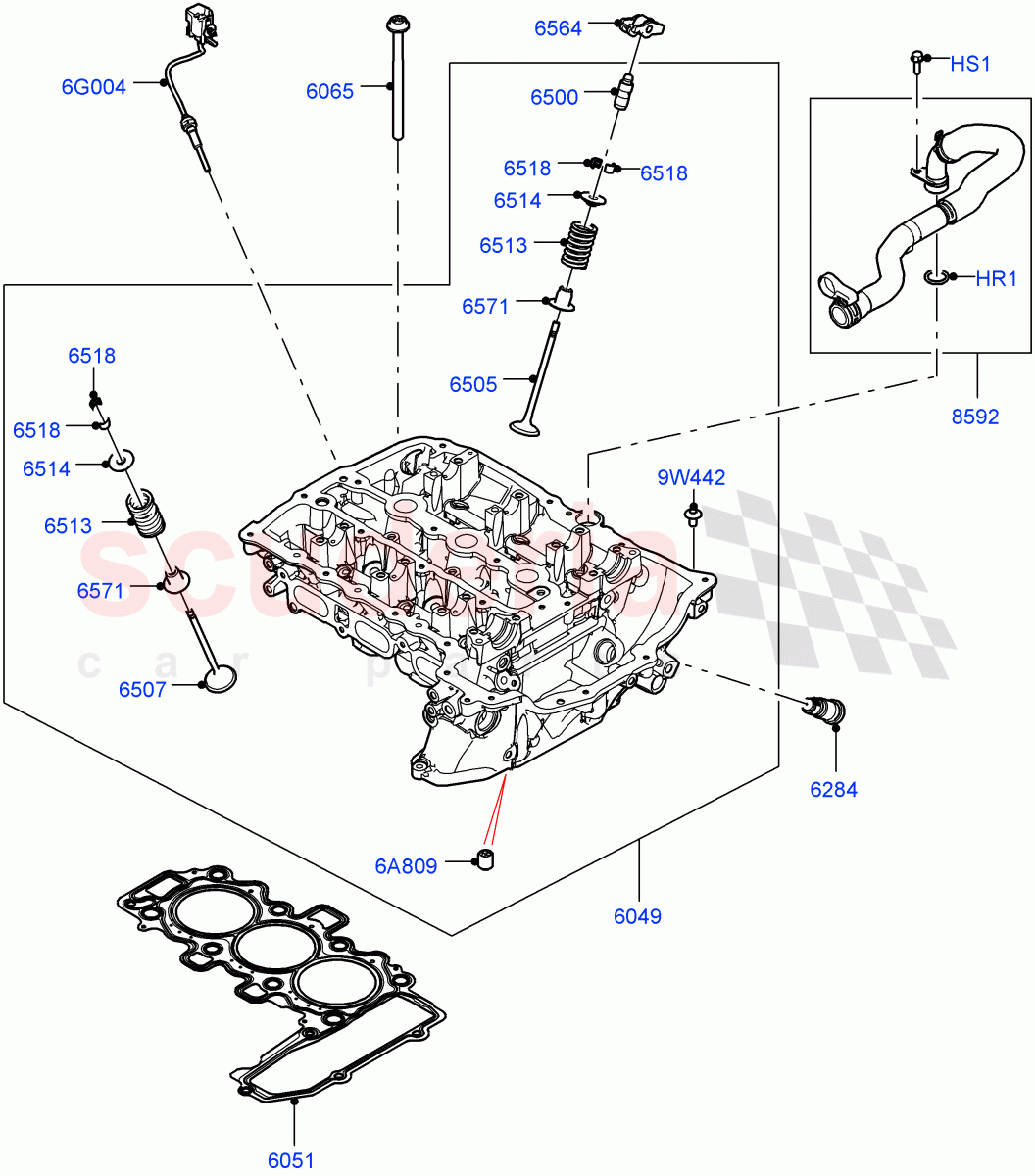

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123820	O-RING	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125329	CYLINDER HEAD	$2,310.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125328	GASKET-CYLINDER HEAD	$163.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091487	BOLT - HEX.HEAD	$12.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125425	TENSIONER - TIMING BELT	$109.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	$50.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134473	VALVE - EXHAUST	$27.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133327	VALVE - INLET	$27.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133326	SPRING - VALVE	$33.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091753	RETAINER - VALVE SPRING - UPPER	$17.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091754	ARM - VALVE ROCKER	$46.18	To Order
	LR163044	ARM - VALVE ROCKER	$43.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116489	SEAL - VALVE STEM	$7.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125392	TUBE - WATER OUTLET	$65.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	$9.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	$49.89	To Order
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	$63.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	$24.77	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR123820	O-RING	LR123820 O-RING Elbow Connector / From: KG446856	$2.94	1
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM, Water Outlet / From: KG446857	$2.35	1
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: KG446856	$9.65	1
6G004	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	LR115083 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: KG446856 / To: MG140568	$49.89	1
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: MG140569	$63.21	1
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain / From: KG446856	$24.77	1
6049	LR125329	CYLINDER HEAD	LR125329 CYLINDER HEAD With Valves / From: KG446856	$2,310.05	1
6051	LR125328	GASKET-CYLINDER HEAD	LR125328 GASKET-CYLINDER HEAD From: KG446856	$163.13	1
6065	LR091487	BOLT - HEX.HEAD	LR091487 BOLT - HEX.HEAD From: KG446856	$12.01	8
6284	LR125425	TENSIONER - TIMING BELT	LR125425 TENSIONER - TIMING BELT Secondary / From: KG446856	$109.54	1
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE From: KG446856	$50.94	12
6505	LR134473	VALVE - EXHAUST	LR134473 VALVE - EXHAUST From: KG446856	$27.88	6
6507	LR133327	VALVE - INLET	LR133327 VALVE - INLET From: KG446856	$27.80	6
6513	LR133326	SPRING - VALVE	LR133326 SPRING - VALVE From: KG446856	$33.50	12
6514	LR091753	RETAINER - VALVE SPRING - UPPER	LR091753 RETAINER - VALVE SPRING - UPPER From: KG446856	$17.04	12
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER From: KG446856	$3.33	24
6564	LR091754	ARM - VALVE ROCKER	LR091754 ARM - VALVE ROCKER From: KG446856 / To: LG124184	$46.18	12
6564	LR163044	ARM - VALVE ROCKER	LR163044 ARM - VALVE ROCKER From: LG124185	$43.53	12
6571	LR116489	SEAL - VALVE STEM IN STOCK	LR116489 SEAL - VALVE STEM From: KG446856 IN STOCK	$7.98	12
8592	LR125392	TUBE - WATER OUTLET	LR125392 TUBE - WATER OUTLET From: KG446856	$65.12	1

Cylinder Head (1.5L Aj20P3 Petrol High, Changsu (China), 1.5L Aj20P3 Petrol High Phev)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)

Add to Shopping Cart
