Rear Brake Pipes (Less Anti-Lock Braking System) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Brake Pipes (Less Anti-Lock Braking System) ((V) FROM7A000001)

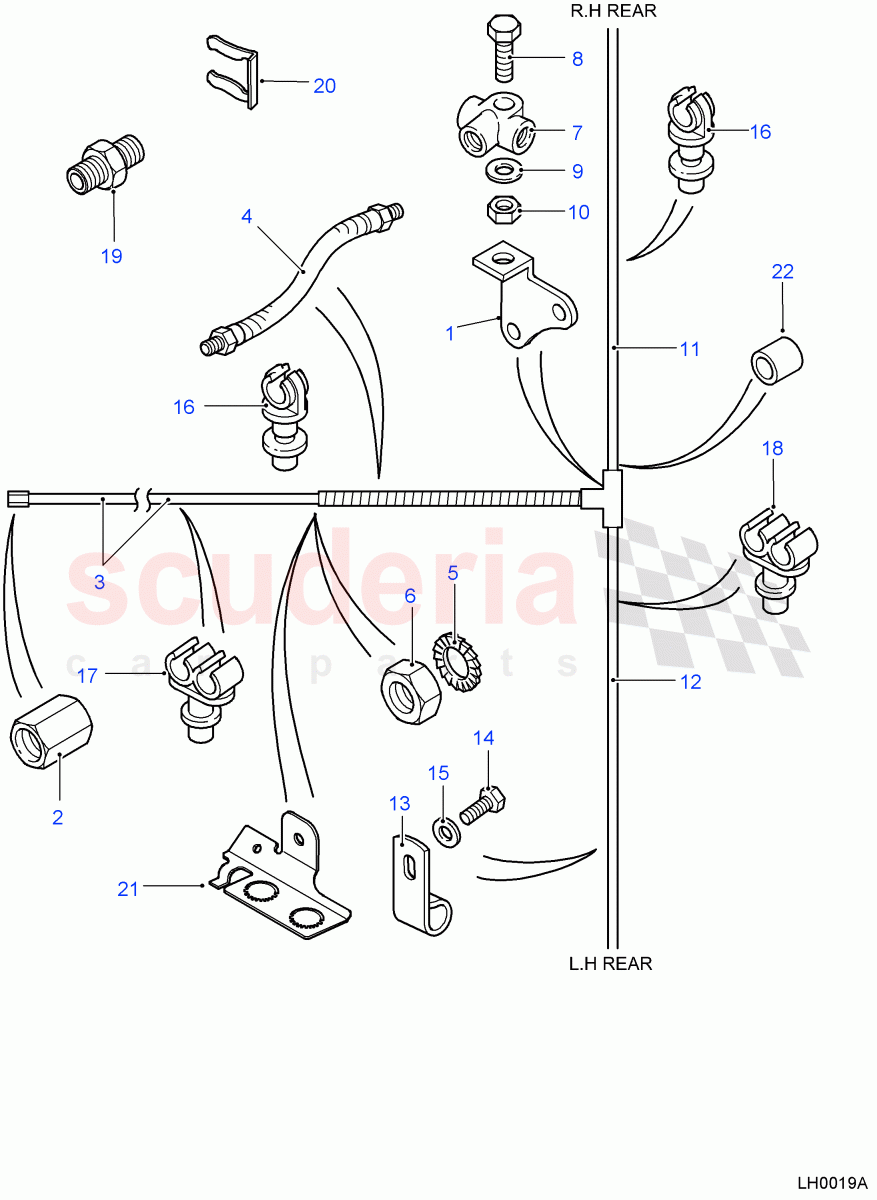

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	FTC4889	BRACKET - BRAKE PIPE	FTC4889 BRACKET - BRAKE PIPE 90" Wheelbase / T piece to axle	$17.25	1
1	SGI100040	BRACKET - BRAKE PIPE	SGI100040 BRACKET - BRAKE PIPE 110" And 130" Wheelbase / T piece to axle	$3.99	1
2	BMK2466	CONNECTOR	BMK2466 CONNECTOR	$9.70	1
3	SGB501660	CONNECTOR	SGB501660 CONNECTOR 90" Wheelbase / front to rear / To: 7A753328	$15.93	1
3	SGB501740	CONNECTOR	SGB501740 CONNECTOR 130" Wheelbase / front to rear / To: 7A753328	$15.93	1
3	SGB501980	PIPE - BRAKE	SGB501980 PIPE - BRAKE 130" Wheelbase / front to rear / From: 7A753329	$211.42	1
3	SGB501680	CONNECTOR	SGB501680 CONNECTOR 110" Wheelbase / front to rear / To: 7A753328	$17.63	1
3	SGB501970	PIPE - BRAKE	SGB501970 PIPE - BRAKE 110" Wheelbase / front to rear / From: 7A753329	$229.16	1
3	SGB501960	PIPE - BRAKE	SGB501960 PIPE - BRAKE 90" Wheelbase / front to rear / From: 7A753329	$185.65	1
4	SHB500220	HOSE - BRAKE	SHB500220 HOSE - BRAKE Less Anti-Lock Braking System / Male Both Ends, Rear	$79.45	1
5	WF110001L	WASHER - LOCKING	WF110001L WASHER - LOCKING 10mm ID	$1.05	1
6	CRC1487	NUT - HEX.	CRC1487 NUT - HEX.	$5.12	1
7	SGL100000	T-CONNECTOR	SGL100000 T-CONNECTOR Less Anti-Lock Braking System / Rear	$20.11	1
8	BH106061L	BOLT	BH106061L BOLT Hexagonal Head, M6 x 30, T piece to pipe brake	$1.28	1
9	WA106042	RESTRICTOR IN STOCK	WA106042 RESTRICTOR 6MM, Plain IN STOCK	$2.12	2
10	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. M6 IN STOCK	$1.47	1
11	SGB501770	TUBE - BRAKE	SGB501770 TUBE - BRAKE RH, Rear	$103.05	1
12	SGB501780	TUBE - BRAKE	SGB501780 TUBE - BRAKE LH, Rear	$108.41	1
13	577873	CLIP	577873 CLIP	$23.38	3
14	SL510032	SCREW	SL510032 SCREW	$1.28	3
15	WC702101L	WASHER	WC702101L WASHER	$0.59	3
16	CRC1250L	CLIP	CRC1250L CLIP 90" Wheelbase	$2.16	3
16	CRC1250L	CLIP	CRC1250L CLIP 110" And 130" Wheelbase	$2.16	6
17	79127	CLIP - BRAKE PIPE	79127 CLIP - BRAKE PIPE	$0.61	2
18	NTC8242	CLIP - BRAKE PIPE	NTC8242 CLIP - BRAKE PIPE	$1.13	3
19	SGL100020	ADAPTOR	SGL100020 ADAPTOR 90" And 110" Wheelbase	$20.41	1
20	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE Less Anti-Lock Braking System IN STOCK	$2.48	1
21	SHU100340	BRACKET - BRAKE PIPE	SHU100340 BRACKET - BRAKE PIPE	$9.28	1
22	TYF101160	SPACER	TYF101160 SPACER 90" Wheelbase	$7.40	2
