Front Brake Pipes (Brake Limiting Valve/Lav, Less Anti-Lock Braking System) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Front Brake Pipes (Brake Limiting Valve/Lav, Less Anti-Lock Braking System) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SGB500740 PIPE - BRAKE $234.88 To Order
SGB500800 PIPE - BRAKE $210.68 To Order
Photo Part No Description Price (each) Stock
SGB500750 PIPE - BRAKE $161.66 To Order
SGB500810 PIPE - BRAKE $175.41 To Order
Photo Part No Description Price (each) Stock
SGB501810 TUBE $132.97 To Order
SGB501920 TUBE - BRAKE $197.72 To Order
LR029630 TUBE - BRAKE $256.53 To Order
Photo Part No Description Price (each) Stock
SGB501600 TUBE - BRAKE $158.24 To Order
SGB501710 PIPE - BRAKE $238.17 To Order
Photo Part No Description Price (each) Stock
SHB500230 HOSE - BRAKE $31.49 To Order
Photo Part No Description Price (each) Stock
WF110001L WASHER - LOCKING $1.05 To Order
Photo Part No Description Price (each) Stock
CRC1487 NUT - HEX. $5.11 To Order
Photo Part No Description Price (each) Stock
SGB501800 TUBE - BRAKE $45.74 To Order
Photo Part No Description Price (each) Stock
SGB501790 TUBE $61.83 To Order
Photo Part No Description Price (each) Stock
SJD500020 VALVE $179.82 To Order
ANR1415 VALVE $181.55 To Order
Photo Part No Description Price (each) Stock
FB108111L BOLT $3.87 To Order
Photo Part No Description Price (each) Stock
WC108056 WASHER $0.88 To Order
Photo Part No Description Price (each) Stock
FY108046 NUT M8 FLANGED HEX HEAD $1.12 IN STOCK
Photo Part No Description Price (each) Stock
CRC1250L CLIP $2.15 To Order
Photo Part No Description Price (each) Stock
NTC1176 CLIP - BRAKE PIPE $1.30 To Order
Photo Part No Description Price (each) Stock
SGK100990 CLIP $3.47 To Order
Photo Part No Description Price (each) Stock
AAU7803 CLIP - BRAKE PIPE $3.94 To Order
Photo Part No Description Price (each) Stock
79127 CLIP - BRAKE PIPE $0.61 To Order
Photo Part No Description Price (each) Stock
NTC1177 CLIP - BRAKE PIPE $1.13 To Order
Photo Part No Description Price (each) Stock
SGI100020 BRACKET - BRAKE PIPE $5.85 To Order
Photo Part No Description Price (each) Stock
SGK100980 CLIP $4.02 To Order
Photo Part No Description Price (each) Stock
SGK100970 CLIP $4.02 To Order
Photo Part No Description Price (each) Stock
NTC9543L CLIP - BRAKE PIPE $2.46 To Order
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.47 IN STOCK
Photo Part No Description Price (each) Stock
SKU500020 BRACKET $6.06 To Order
SKU500030 BRACKET $6.49 To Order
SKU500050 BRACKET $12.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
SGB501590 TUBE - BRAKE $15.72 To Order
SGB501580 TUBE - BRAKE $139.72 To Order
LR029632 TUBE - BRAKE $186.91 To Order
View All

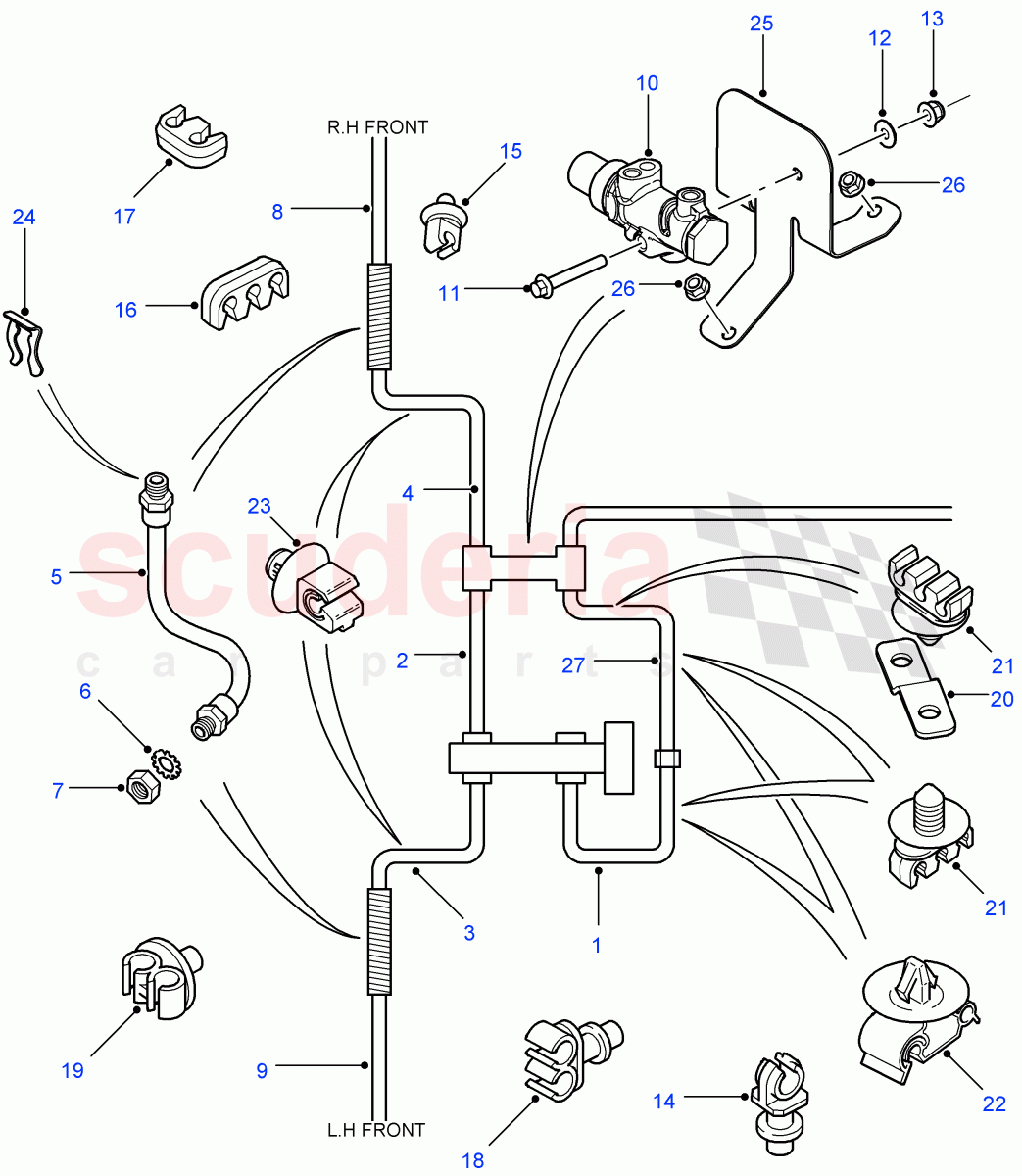

Front Brake Pipes (Brake Limiting Valve/Lav, Less Anti-Lock Braking System) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 SGB500740
PIPE - BRAKE
RHD / master cylinder to connector 		$234.88 1
1 SGB500800
PIPE - BRAKE
LHD / master cylinder to connector 		$210.68 1
2 SGB500750
PIPE - BRAKE
RHD / master cylinder to valve rear 		$161.66 1
2 SGB500810
PIPE - BRAKE
LHD / master cylinder to valve rear 		$175.41 1
3 SGB501810
TUBE
LHD / LH, master cylinder to jump hose 		$132.97 1
3 SGB501920
TUBE - BRAKE
RHD / LH, master cylinder to jump hose / To: BA999999 		$197.72 1
3 LR029630
TUBE - BRAKE
RHD / LH, master cylinder to jump hose / From: CA000001 		$256.53 1
4 SGB501600
TUBE - BRAKE
RHD / RH, valve to front hose 		$158.24 1
4 SGB501710
PIPE - BRAKE
LHD / RH, valve to front hose 		$238.17 1
5 SHB500230
HOSE - BRAKE 		$31.49 2
6 WF110001L
WASHER - LOCKING
10mm ID 		$1.05 4
7 CRC1487
NUT - HEX. 		$5.11 4
8 SGB501800
TUBE - BRAKE
RH 		$45.74 1
9 SGB501790
TUBE
LH 		$61.83 1
10 SJD500020
VALVE
90" Wheelbase 		$179.82 1
10 ANR1415
VALVE
110" And 130" Wheelbase 		$181.55 1
11 FB108111L
BOLT
Flanged Head, M8 x 55 		$3.87 1
12 WC108056
WASHER
M8 		$0.88 1
13 FY108046
NUT M8 FLANGED HEX HEAD
M8
IN STOCK 		$1.12 1
14 CRC1250L
CLIP 		$2.15 -
15 NTC1176
CLIP - BRAKE PIPE 		$1.30 1
16 SGK100990
CLIP
RHD 		$3.47 4
17 AAU7803
CLIP - BRAKE PIPE 		$3.94 3
18 79127
CLIP - BRAKE PIPE
LHD 		$0.61 3
19 NTC1177
CLIP - BRAKE PIPE
LHD 		$1.13 1
20 SGI100020
BRACKET - BRAKE PIPE 		$5.85 1
21 SGK100980
CLIP
RHD 		$4.02 1
22 SGK100970
CLIP
RHD 		$4.02 2
23 NTC9543L
CLIP - BRAKE PIPE 		$2.46 3
24 EJP7813
CLIP - HOSE
IN STOCK 		$2.47 2
25 SKU500020
BRACKET
RHD / To: 7A739746 		$6.06 1
25 SKU500030
BRACKET
LHD / To: 7A739746 		$6.49 1
25 SKU500050
BRACKET
RHD / From: 7A739747 		$12.45 1
25 SKU500060
BRACKET
LHD / From: 7A739747 		$328.40 1
26 FN108046
NUT - HEX.
M8 		$1.97 3
27 SGB501590
TUBE - BRAKE
RHD / Valve To Connector / To: BA999999 		$15.72 1
27 SGB501580
TUBE - BRAKE
LHD / Valve To Connector 		$139.72 1
27 LR029632
TUBE - BRAKE
RHD / Valve To Connector / From: CA000001 		$186.91 1
