Name: Front Brake Pipes (LHD, 4 Wheel Anti-Lock Braking System) ((V) FROM7A000001, (V) TOAA999999)
Rating: 4.9 (1 reviews)

View All

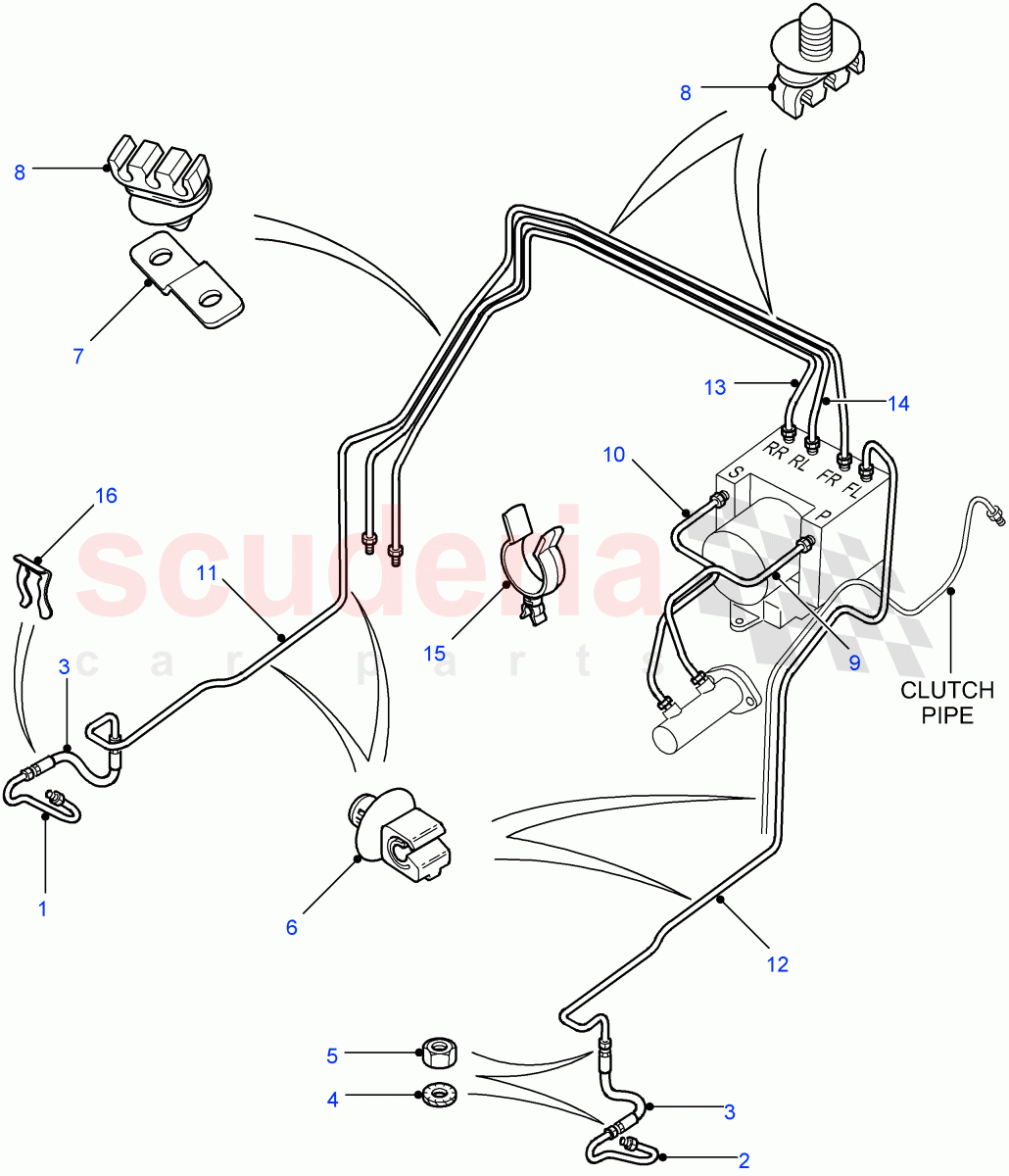

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGB501800	TUBE - BRAKE	$45.81	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501790	TUBE	$61.93	To Order

Photo	Part No	Description	Price (each)	Stock
	SHB500230	HOSE - BRAKE	$31.54	To Order

Photo	Part No	Description	Price (each)	Stock
	WF110001L	WASHER - LOCKING	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	CRC1487	NUT - HEX.	$5.11	To Order

Photo	Part No	Description	Price (each)	Stock
	NTC9543L	CLIP - BRAKE PIPE	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	SGI100020	BRACKET - BRAKE PIPE	$5.86	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100980	CLIP	$4.02	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB500820	CONNECTOR	$9.79	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB500830	PIPE - BRAKE	$12.24	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501610	PIPE - BRAKE	$180.32	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501620	PIPE - BRAKE	$161.35	To Order

Photo	Part No	Description	Price (each)	Stock
	JYC10010	CLIP - BRAKE PIPE	$8.52	To Order

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	$2.48	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	SGB501800	TUBE - BRAKE	SGB501800 TUBE - BRAKE RH, jump hose to caliper	$45.81	1
2	SGB501790	TUBE	SGB501790 TUBE LH, jump hose to caliper	$61.93	1
3	SHB500230	HOSE - BRAKE	SHB500230 HOSE - BRAKE Front	$31.54	2
4	WF110001L	WASHER - LOCKING	WF110001L WASHER - LOCKING 10mm ID	$1.05	4
5	CRC1487	NUT - HEX.	CRC1487 NUT - HEX.	$5.11	4
6	NTC9543L	CLIP - BRAKE PIPE	NTC9543L CLIP - BRAKE PIPE	$2.46	4
7	SGI100020	BRACKET - BRAKE PIPE	SGI100020 BRACKET - BRAKE PIPE	$5.86	1
8	SGK100980	CLIP	SGK100980 CLIP	$4.02	3
9	SGB500820	CONNECTOR	SGB500820 CONNECTOR PRIMARY, valve to modulator	$9.79	1
10	SGB500830	PIPE - BRAKE	SGB500830 PIPE - BRAKE SECONDARY, valve to modulator	$12.24	1
11	SGB501530	TUBE - BRAKE	SGB501530 TUBE - BRAKE modulator to front hose / To: 7A755904	$17.62	1
11	SGB502020	TUBE - BRAKE	SGB502020 TUBE - BRAKE modulator to front hose / From: 7A755905	$231.49	1
12	SGB501470	TUBE	SGB501470 TUBE modulator to front hose / To: 7A749527	$17.95	1
12	SGB501990	TUBE	SGB501990 TUBE modulator to front hose / From: 7A749528	$144.07	1
13	SGB501610	PIPE - BRAKE	SGB501610 PIPE - BRAKE modulator to rear connector	$180.32	1
14	SGB501620	PIPE - BRAKE	SGB501620 PIPE - BRAKE modulator to rear connector	$161.35	1
15	JYC10010	CLIP - BRAKE PIPE	JYC10010 CLIP - BRAKE PIPE Swivel Dual Type	$8.52	1
16	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE IN STOCK	$2.48	2

Front Brake Pipes (Lhd, 4 Wheel Anti-Lock Braking System) ((V) From7A000001, (V) Toaa999999)

Land Rover Defender (2007-2016)
