Engine Harness (2.0L I4 High Dohc Aj200 Petrol)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Engine Harness (2.0L I4 High DOHC AJ200 Petrol)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.46 To Order
Photo Part No Description Price (each) Stock
LR126612 NUT - ADJUSTING $0.69 To Order
Photo Part No Description Price (each) Stock
LR027995 NUT $1.01 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR123740 STUD $5.08 To Order
Photo Part No Description Price (each) Stock
LR136746 WIRING - ALTERNATOR $132.35 To Order
LR146115 WIRING - ALTERNATOR $151.15 To Order
LR172157 WIRING - ALTERNATOR $194.18 To Order
Photo Part No Description Price (each) Stock
LR141820 PLUG - BLANKING $5.41 To Order
Photo Part No Description Price (each) Stock
LR113349 WIRING - STARTER MOTOR $73.49 To Order
Photo Part No Description Price (each) Stock
LR116490 WIRING - FUEL INJECTORS $134.06 To Order
Photo Part No Description Price (each) Stock
LR125828 WIRING - ENGINE $1,708.97 To Order
LR141452 WIRING - ENGINE $2,133.92 To Order
Photo Part No Description Price (each) Stock
LR136773 BRACKET - WIRING $16.39 To Order
Photo Part No Description Price (each) Stock
LR136775 BRACKET - WIRING $16.39 To Order
Photo Part No Description Price (each) Stock
LR136767 BRACKET - WIRING $19.66 To Order
Photo Part No Description Price (each) Stock
LR138653 BRACKET $23.46 To Order
Photo Part No Description Price (each) Stock
LR136326 WIRE - ENGINE EARTH $41.78 To Order
LR146107 WIRE - ENGINE EARTH $41.78 To Order
View All

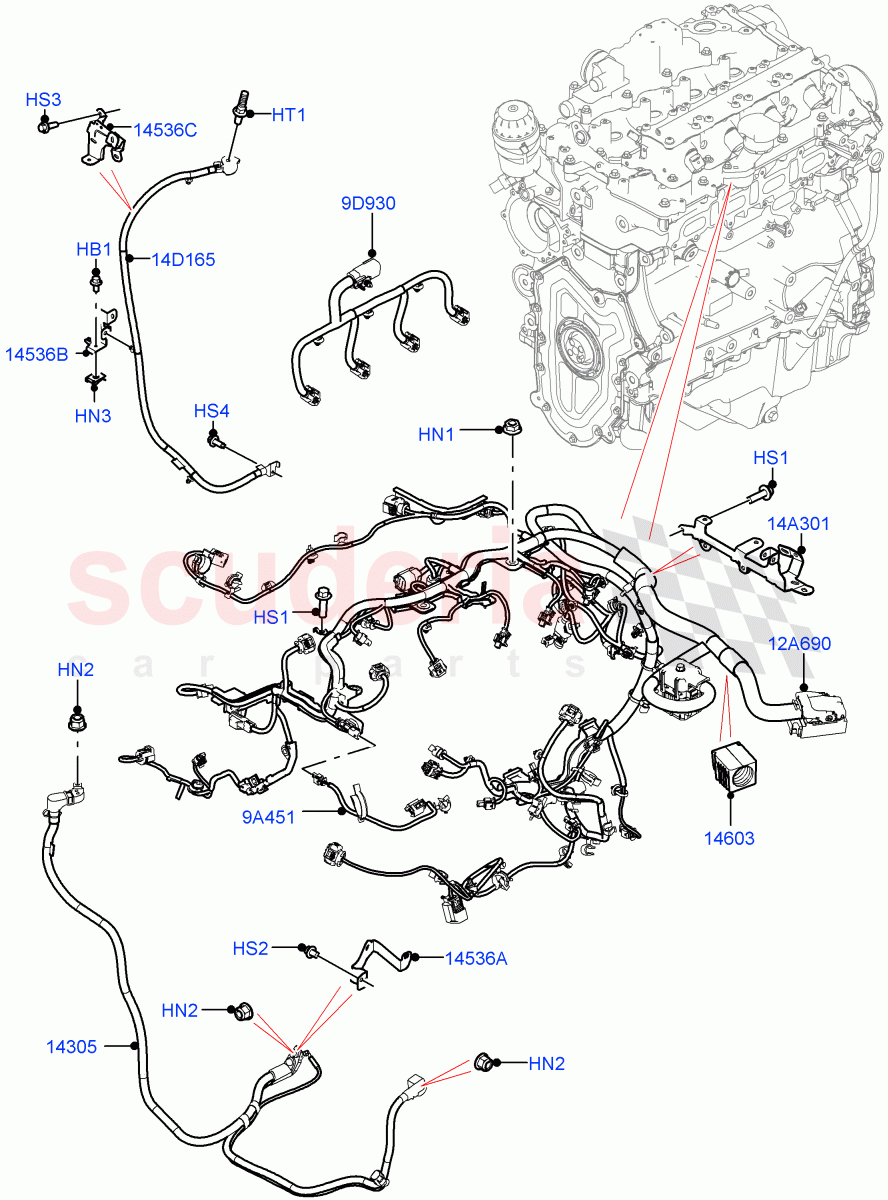

Engine Harness (2.0L I4 High DOHC AJ200 Petrol) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.52 1
HN1 LR087242
NUT - HEX.
M6 		$1.46 2
HN2 LR126612
NUT - ADJUSTING
M8 		$0.69 4
HN3 LR027995
NUT
M6 X 0.7 - 4, Nut "U" Spring
IN STOCK 		$1.01 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$1.60 9
HS2 FS108126
SCREW
M8 x 12MM
IN STOCK 		$1.36 2
HS3 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 2
HS4 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.63 1
HT1 LR123740
STUD
Jump Start, M8 x 17 + M8 x 24 		$5.08 1
9A451 LR113349
WIRING - STARTER MOTOR
Alternator 		$73.49 1
9D930 LR116490
WIRING - FUEL INJECTORS
Injector Harness 		$134.06 1
12A690 LR125828
WIRING - ENGINE
To: L2999999 		$1,708.97 1
12A690 LR141452
WIRING - ENGINE
From: M2000001 		$2,133.92 1
14A301 LR138653
BRACKET
Engine Rear 		$23.46 1
14D165 LR136326
WIRE - ENGINE EARTH
Engine Earth / To: L2012604 		$41.78 1
14D165 LR146107
WIRE - ENGINE EARTH
Engine Earth / From: L2012605 		$41.78 1
14305 LR136746
WIRING - ALTERNATOR
Starter Motor To Alternator / To: L2012604 		$132.35 1
14305 LR146115
WIRING - ALTERNATOR
Starter Motor To Alternator / From: L2012605 / To: N2999999 		$151.15 1
14305 LR172157
WIRING - ALTERNATOR
Starter Motor To Alternator / From: P2000001 		$194.18 1
14536A LR136773
BRACKET - WIRING 		$16.39 1
14536B LR136775
BRACKET - WIRING
Engine Earth, Lower 		$16.39 1
14536C LR136767
BRACKET - WIRING
Engine Earth, Upper 		$19.66 1
14603 LR141820
PLUG - BLANKING
Engine Harness 		$5.41 1
