Engine Harness (2.0L I4 Dsl High Dohc Aj200)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Engine Harness (2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.55 IN STOCK
Photo Part No Description Price (each) Stock
LR126612 NUT - ADJUSTING $0.70 To Order
Photo Part No Description Price (each) Stock
LR027995 NUT $1.02 IN STOCK
Photo Part No Description Price (each) Stock
FS108126 SCREW $1.42 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.98 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.58 IN STOCK
Photo Part No Description Price (each) Stock
LR089197 STUD $3.90 To Order
Photo Part No Description Price (each) Stock
LR123740 STUD $5.04 To Order
Photo Part No Description Price (each) Stock
LR136745 WIRING - ALTERNATOR $130.71 To Order
LR146116 WIRING - ALTERNATOR $119.78 To Order
LR172158 WIRING - ALTERNATOR $193.55 To Order
Photo Part No Description Price (each) Stock
LR141820 PLUG - BLANKING $5.45 To Order
Photo Part No Description Price (each) Stock
LR110286 WIRE - GLOW PLUG $79.42 To Order
Photo Part No Description Price (each) Stock
LR123813 WIRING - ENGINE $794.51 To Order
Photo Part No Description Price (each) Stock
LR136773 BRACKET - WIRING $16.45 To Order
Photo Part No Description Price (each) Stock
LR136775 BRACKET - WIRING $16.45 To Order
Photo Part No Description Price (each) Stock
LR136767 BRACKET - WIRING $19.68 To Order
Photo Part No Description Price (each) Stock
LR136322 WIRE - ENGINE EARTH $33.44 To Order
Photo Part No Description Price (each) Stock
LR070822 WIRING - STARTER MOTOR $76.22 To Order
Photo Part No Description Price (each) Stock
LR110287 WIRING - STARTER MOTOR $55.01 To Order
View All

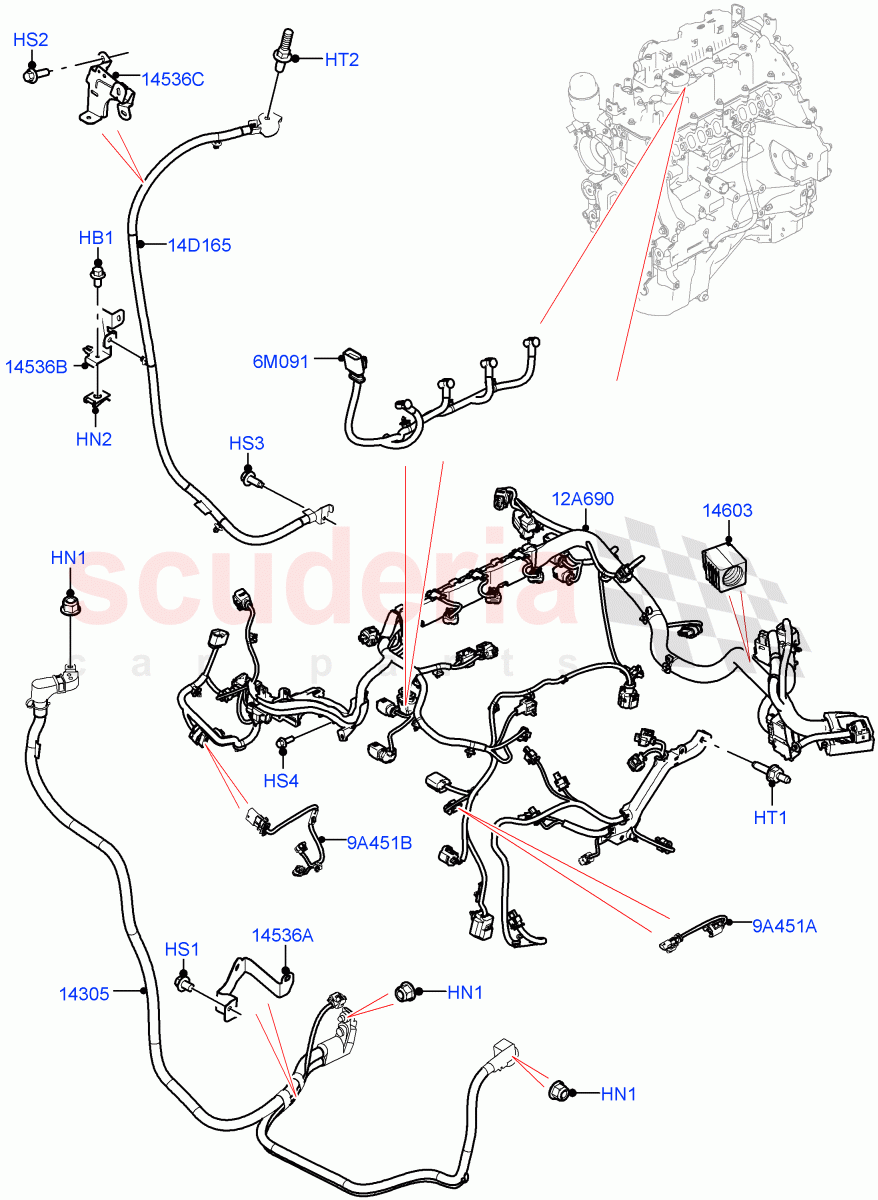

Engine Harness (2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.55 1
HN1 LR126612
NUT - ADJUSTING
M8 		$0.70 4
HN2 LR027995
NUT
M6 X 0.7 - 4, Nut "U" Spring
IN STOCK 		$1.02 1
HS1 FS108126
SCREW
M8 x 12MM
IN STOCK 		$1.42 2
HS2 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.98 2
HS3 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.64 1
HS4 LR073655
SCREW
Engine Harness, Hexagonal Head, M6 X 20MM
IN STOCK 		$1.58 1
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm 		$3.90 2
HT2 LR123740
STUD
Jump Start, M8 x 17 + M8 x 24 		$5.04 1
6M091 LR110286
WIRE - GLOW PLUG 		$79.42 1
9A451A LR070822
WIRING - STARTER MOTOR
Alternator 		$76.22 1
9A451B LR110287
WIRING - STARTER MOTOR
Coolant Temperature Sensor 		$55.01 1
12A690 LR123813
WIRING - ENGINE
Engine 		$794.51 1
14D165 LR136322
WIRE - ENGINE EARTH
Engine Earth 		$33.44 1
14305 LR136745
WIRING - ALTERNATOR
Starter Motor To Alternator / To: L2011991 		$130.71 1
14305 LR146116
WIRING - ALTERNATOR
Starter Motor To Alternator / From: L2011992 / To: N2999999 		$119.78 1
14305 LR172158
WIRING - ALTERNATOR
Starter Motor To Alternator / From: P2000001 		$193.55 1
14536A LR136773
BRACKET - WIRING 		$16.45 1
14536B LR136775
BRACKET - WIRING
Engine Earth, Lower 		$16.45 1
14536C LR136767
BRACKET - WIRING
Engine Earth, Upper 		$19.68 1
14603 LR141820
PLUG - BLANKING
Engine Harness 		$5.45 1
