Hybrid Electrical Modules (Battery And Cooling) (Electric Engine Battery-Phev) ((V) Fromm2000001)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Hybrid Electrical Modules (Battery And Cooling) (Electric Engine Battery-PHEV) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR068826 NUT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.11 IN STOCK
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
LR131988 TUBE - AUXILIARY EVAPORATOR $279.58 To Order
Photo Part No Description Price (each) Stock
LR104344 CAP - OVERFLOW CONTAINER $25.41 To Order
Photo Part No Description Price (each) Stock
LR142023 PUMP - WATER $236.19 To Order
Photo Part No Description Price (each) Stock
LR132498 VALVE - WATER CONTROL $382.85 To Order
Photo Part No Description Price (each) Stock
LR132416 HOSE - RESERVOIR TO PUMP $160.01 To Order
Photo Part No Description Price (each) Stock
LR142021 BRACKET - COOLING HOSE $49.40 To Order
Photo Part No Description Price (each) Stock
LR131301 RESERVOIR - EXPANSION $124.42 To Order
Photo Part No Description Price (each) Stock
LR132561 HOSE - TRACTION BATTERY COOLING $120.10 To Order
Photo Part No Description Price (each) Stock
LR132566 HOSE - TRACTION BATTERY COOLING $148.20 To Order
Photo Part No Description Price (each) Stock
LR132630 HOSE - TRACTION BATTERY COOLING $274.83 To Order
Photo Part No Description Price (each) Stock
LR128407 HOSE - TRACTION BATTERY COOLING $153.13 To Order
Photo Part No Description Price (each) Stock
LR132025 HOSE - TRACTION BATTERY COOLING $80.56 To Order
Photo Part No Description Price (each) Stock
LR132026 HOSE - TRACTION BATTERY COOLING $80.56 To Order
Photo Part No Description Price (each) Stock
LR132623 HOSE - COOLANT BLEED $52.99 To Order
Photo Part No Description Price (each) Stock
LR100966 HOSE - WATER $275.87 To Order
Photo Part No Description Price (each) Stock
LR100073 BRACKET - HOSE $17.70 To Order
Photo Part No Description Price (each) Stock
LR133024 BRACKET - PUMP SUPPORT $69.26 To Order
Photo Part No Description Price (each) Stock
LR153417 BRACKET - PUMP SUPPORT $12.10 To Order
View All

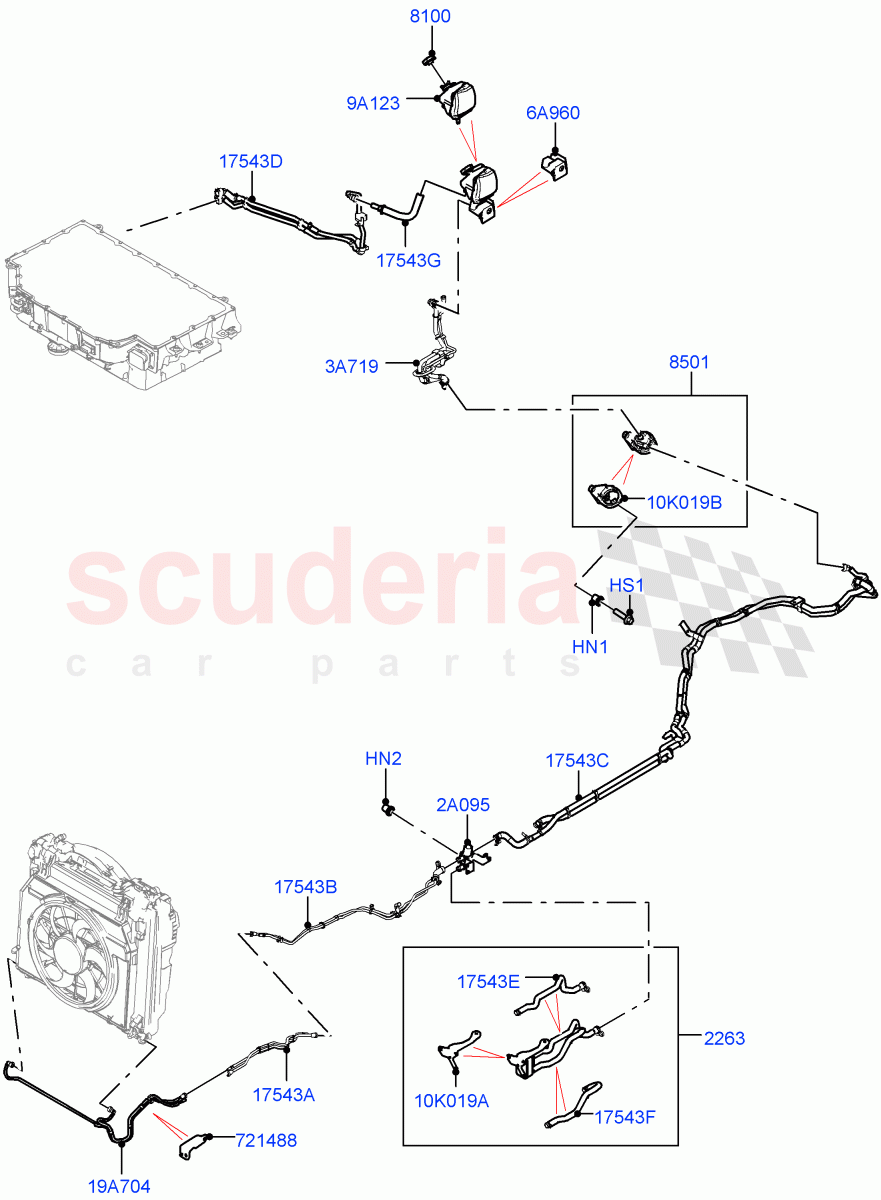

Hybrid Electrical Modules (Battery And Cooling) (Electric Engine Battery-PHEV) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR068826
NUT
M6 x 15MM / From: M2000001
IN STOCK 		$0.68 1
HN2 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer, To Valve / From: M2000001
IN STOCK 		$3.11 2
HS1 FS106256
SCREW
M6 x 25MM 		$0.43 2
2A095 LR132498
VALVE - WATER CONTROL
From: M2000001 		$382.85 1
3A719 LR132416
HOSE - RESERVOIR TO PUMP
Battery To Degas / From: M2000001 		$160.01 1
6A960 LR142021
BRACKET - COOLING HOSE
Expansion Tank / From: M2000001 		$49.40 1
9A123 LR131301
RESERVOIR - EXPANSION
From: M2000001 		$124.42 1
10K019A LR133024
BRACKET - PUMP SUPPORT
PHEV Chiller Bracket / From: M2000001 		$69.26 1
10K019B LR153417
BRACKET - PUMP SUPPORT
Water Pump / From: M2000001 		$12.10 1
19A704 LR100966
HOSE - WATER
Inlet, Low Temperature Radiator / From: M2000001 		$275.87 1
2263 LR131988
TUBE - AUXILIARY EVAPORATOR
From: M2000001 		$279.58 1
8100 LR104344
CAP - OVERFLOW CONTAINER
From: M2000001 		$25.41 1
8501 LR142023
PUMP - WATER
From: M2000001 		$236.19 1
17543A LR132561
HOSE - TRACTION BATTERY COOLING
Front End / From: M2000001 		$120.10 1
17543B LR132566
HOSE - TRACTION BATTERY COOLING
Interim / From: M2000001 		$148.20 1
17543C LR132630
HOSE - TRACTION BATTERY COOLING
Under Floor / From: M2000001 		$274.83 1
17543D LR128407
HOSE - TRACTION BATTERY COOLING
Rear End / From: M2000001 		$153.13 1
17543E LR132025
HOSE - TRACTION BATTERY COOLING
For Battery Chiller, Inlet / From: M2000001 		$80.56 1
17543F LR132026
HOSE - TRACTION BATTERY COOLING
For Battery Chiller, Outlet / From: M2000001 		$80.56 1
17543G LR132623
HOSE - COOLANT BLEED
Hose Expansion Tank To Overflow / From: M2000001 		$52.99 1
721488 LR100073
BRACKET - HOSE
From: M2000001 		$17.70 1
