Name: Airbag System (Airbag Modules)
Rating: 5.0 (1 reviews)

Airbag System (Airbag Modules) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

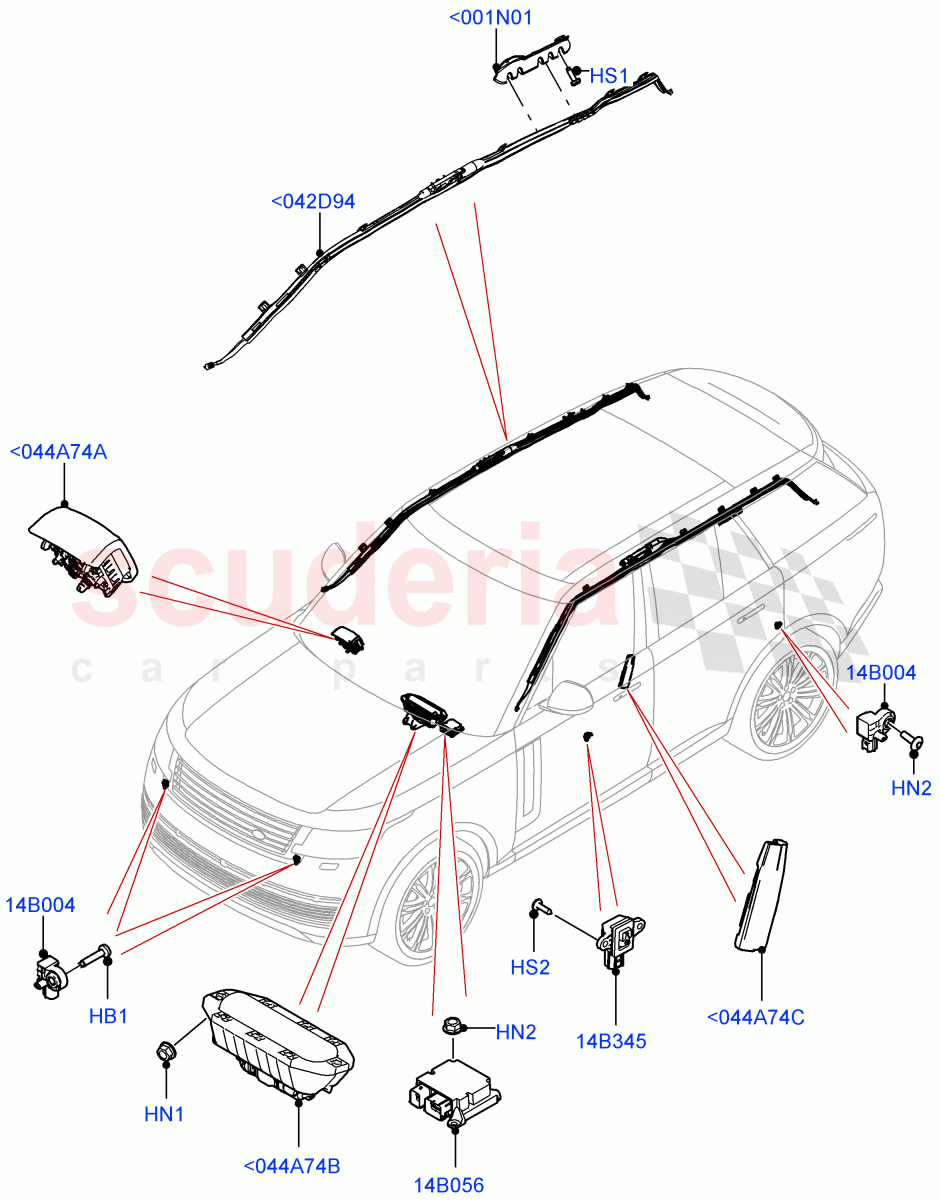

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Airbag System (Airbag Modules)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR042803	BOLT	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR031341	NUT - HEX.	$1.03	To Order
	LR031341	NUT - HEX.	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500960	SCREW	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109055	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167165	SENSOR - AIR BAG	$133.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154987	MONITOR - AIRBAG DIAGNOSTIC MODULE	$814.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043878	SENSOR - SIDE AIR BAG	$130.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164910	BRACKET - AIR BAG	$11.08	To Order
	LR164911	BRACKET - AIR BAG	$11.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151650	SIDE AIR BAG	$503.12	To Order
	LR151651	SIDE AIR BAG	$503.12	To Order
	LR151645	SIDE AIR BAG	$503.12	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR164981	AIR BAG	$809.92	IN STOCK
	LR164982	AIR BAG	$1,196.83	To Order
	LR164983	AIR BAG	$1,196.83	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR157131	AIR BAG - PASSENGER	$885.87	To Order
	LR157132	AIR BAG - PASSENGER	$885.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151638	SIDE AIR BAG	$471.67	To Order
	LR154982	SIDE AIR BAG	$471.67	To Order
	LR151640	SIDE AIR BAG	$471.67	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<001N01	LR164910	BRACKET - AIR BAG	LR164910 BRACKET - AIR BAG RH, Curtain Airbag	$11.08	1
<001N01	LR164911	BRACKET - AIR BAG	LR164911 BRACKET - AIR BAG LH, Curtain Airbag	$11.37	1
<042D94	LR151650	SIDE AIR BAG	LR151650 SIDE AIR BAG Standard Wheelbase / LH	$503.12	1
<042D94	LR151651	SIDE AIR BAG	LR151651 SIDE AIR BAG Long Wheelbase / LH	$503.12	1
<042D94	LR151645	SIDE AIR BAG	LR151645 SIDE AIR BAG Standard Wheelbase / RH	$503.12	1
<042D94	LR151648	SIDE AIR BAG	LR151648 SIDE AIR BAG Long Wheelbase / RH	$503.12	1
<044A74A	LR164981	AIR BAG IN STOCK	LR164981 AIR BAG IP Contrast - Ecru, With Deluxe Steering Wheel / Steering Wheel IN STOCK	$809.92	1
<044A74A	LR164982	AIR BAG	LR164982 AIR BAG IP Facia Contrast - Caraway, With Deluxe Steering Wheel / Steering Wheel	$1,196.83	1
<044A74A	LR164983	AIR BAG	LR164983 AIR BAG IP Contrast - Deep Garnet, SVO Bespoke Open Pore Wd & Lth / Steering Wheel	$1,196.83	1
<044A74A	LR164984	AIR BAG	LR164984 AIR BAG I/P Facia Contrast - Ebony Black, Steering Wheel - Wood/Leather / Steering Wheel	$1,196.83	1
<044A74A	LR164985	AIR BAG	LR164985 AIR BAG IP Contrast - Perlino, SVO Bespoke Open Pore Wd & Lth / Steering Wheel	$1,100.04	1
<044A74A	LR164986	AIR BAG	LR164986 AIR BAG I/P Facia Contrast - Ebony Black, Stng Whl - Premium Non-Leather / Steering Wheel	$1,196.83	1
<044A74B	LR157131	AIR BAG - PASSENGER	LR157131 AIR BAG - PASSENGER Sensor - Occupant Classification / Passenger	$885.87	1
<044A74B	LR157132	AIR BAG - PASSENGER	LR157132 AIR BAG - PASSENGER Sensor-Occ W/out Pass Airbag Cutoff / Passenger	$885.87	1
<044A74C	LR151638	SIDE AIR BAG	LR151638 SIDE AIR BAG Sensor - Occupant Classification / RH, Side	$471.67	1
<044A74C	LR154982	SIDE AIR BAG	LR154982 SIDE AIR BAG With Occupant Sensor / RH, Side	$471.67	1
<044A74C	LR151640	SIDE AIR BAG	LR151640 SIDE AIR BAG Sensor - Occupant Classification / LH, Side	$471.67	1
<044A74C	LR154981	SIDE AIR BAG	LR154981 SIDE AIR BAG With Occupant Sensor / LH, Side	$471.67	1
HB1	LR042803	BOLT IN STOCK	LR042803 BOLT Crash Sensor, Front Bumper, M6 x 28MM, RH/LH, Torx IN STOCK	$1.24	2
HN1	RYH500420	NUT AND WASHER - HEX. IN STOCK	RYH500420 NUT AND WASHER - HEX. Sensor-Occ W/out Pass Airbag Cutoff / Hexagonal Head, M6, Nut And Washer, Passenger Airbag IN STOCK	$0.44	8
HN2	LR031341	NUT - HEX.	LR031341 NUT - HEX. Air Bag Monitor, Hexagonal Head, M6	$1.03	3
HN2	LR031341	NUT - HEX.	LR031341 NUT - HEX. "C" Pillar, Crash Sensor, Hexagonal Head, M6, RH/LH	$1.03	2
HS1	RYP500960	SCREW	RYP500960 SCREW Curtain Airbag, M6 X 16MM, RH/LH, Torx	$0.57	2
HS2	LR109055	SCREW	LR109055 SCREW 5 X 16MM, Front Door, Pressure Sensor, RH/LH	$0.47	4
14B004	LR167165	SENSOR - AIR BAG	LR167165 SENSOR - AIR BAG "C" Pillar, Crash Sensor, Front Bumper, RH/LH	$133.95	4
14B056	LR154987	MONITOR - AIRBAG DIAGNOSTIC MODULE	LR154987 MONITOR - AIRBAG DIAGNOSTIC MODULE	$814.44	1
14B345	LR043878	SENSOR - SIDE AIR BAG	LR043878 SENSOR - SIDE AIR BAG Front Door, Pressure Sensor, RH/LH	$130.37	2

Airbag System (Airbag Modules)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Airbag System (Airbag Modules)

Add to Shopping Cart
