| Photo | Part No | Description | Price (each) | Stock |
 |
LR153931 | BOLT AND WASHER - HEX.HEAD | $0.95 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
DBP6286 | Hardware - Miscellaneous | Enquire | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |
LR027995 | NUT | $1.01 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
 |
LR025172 | SCREW | $1.24 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR154493 | SCREW | $2.24 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR153929 | SCREW | $2.89 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR151926 | SCREW | $1.77 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR007312 | SCREW 4.2 X 19 | $0.75 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
RYG500830 | Screw | $1.21 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR151955 | BRACKET - INSTRUMENT PANEL | $25.82 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR151947 | BRACKET - ENERGY ABSORBER | $75.48 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR151837 | BRACKET - INSTRUMENT PANEL | $6.39 | To Order |
|
LR151838 | BRACKET - INSTRUMENT PANEL | $6.39 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR151953 | REINFORCEMENT - INSTRUMENT PANEL | $606.71 | To Order |
|
LR151954 | REINFORCEMENT - INSTRUMENT PANEL | $606.71 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| <017B44 |
LR151947 BRACKET - ENERGY ABSORBER With Head Impact Crash Criteria |
$75.48 | 2 | |
| <018B68 |
LR151837 BRACKET - INSTRUMENT PANEL LH |
$6.39 | 1 | |
| <018B68 |
LR151838 BRACKET - INSTRUMENT PANEL RH |
$6.39 | 1 | |
| <060B64 |
LR151953 REINFORCEMENT - INSTRUMENT PANEL RHD |
$606.71 | 1 | |
| <060B64 |
LR151954 REINFORCEMENT - INSTRUMENT PANEL LHD |
$606.71 | 1 | |
| <52166 |
LR151955 BRACKET - INSTRUMENT PANEL |
$25.82 | 1 | |
| HB1 |
LR153931 BOLT AND WASHER - HEX.HEAD M8 x 27MM |
$0.95 | 3 | |
| HM1 |
DBP6286 Hardware - Miscellaneous |
- | 2 | Enquire |
| HN1 |
LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring IN STOCK |
$1.01 | 8 | |
| HS1 |
LR025172 SCREW M6 X 16MM, Support Bracket IN STOCK |
$1.24 | 2 | |
| HS2 |
LR154493 SCREW M8X41.5 |
$2.24 | 4 | |
| HS3 |
LR153929 SCREW 8X25 |
$2.89 | 1 | |
| HS4 |
LR151926 SCREW M8 X 20MM, Torx |
$1.77 | 2 | |
| HS5 |
LR007312 SCREW 4.2 X 19 4.2 X 19MM IN STOCK |
$0.75 | 2 | |
| HS6 |
RYG500830 Screw M6 X 16 HEX |
$1.21 | 4 |
Haven't found what you're looking for?

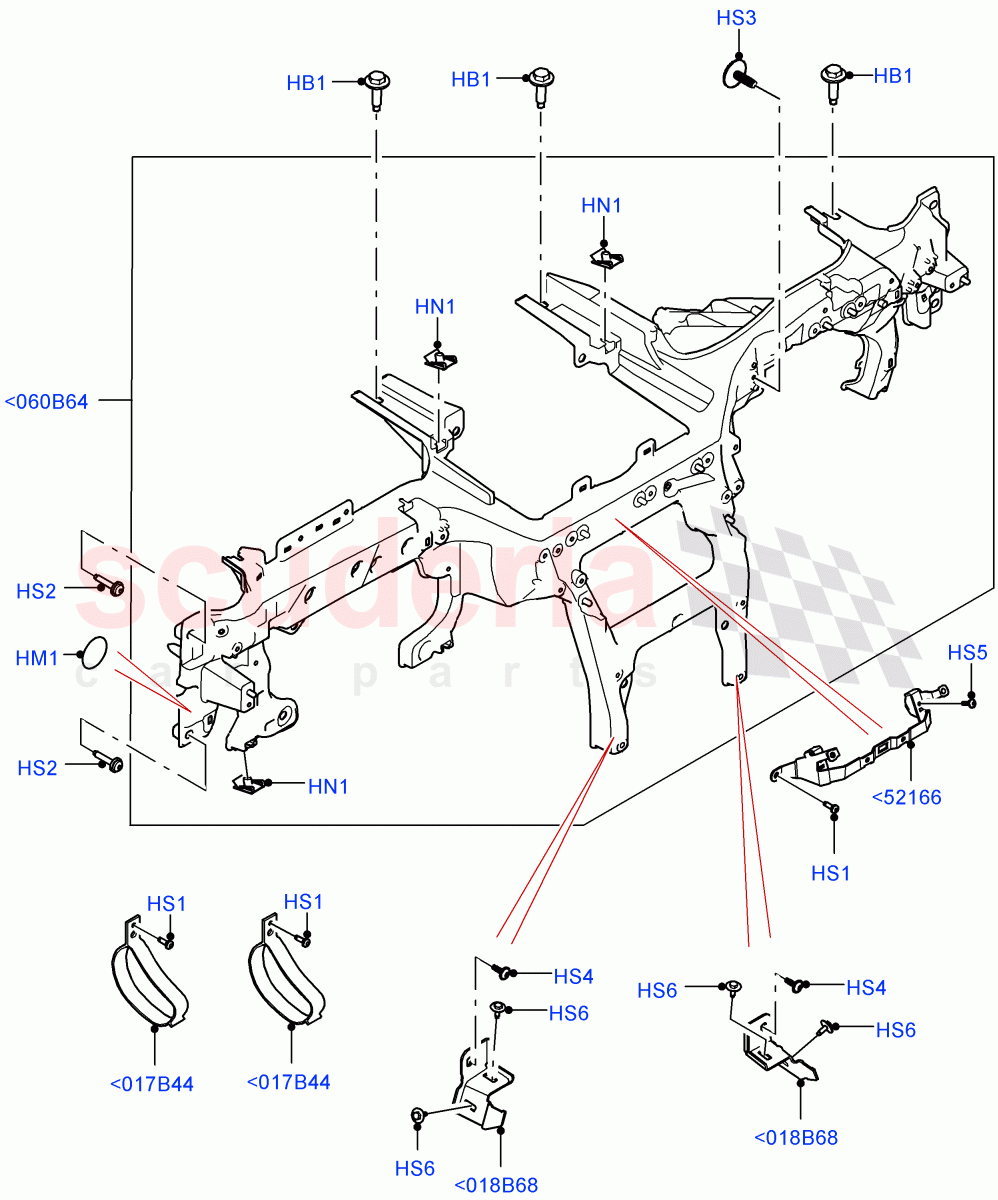

![Instrument Panel (Internal Components) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]](/images/diagrams/landrover/AUJ6ZAK89GJWWY6XR39G.gif)
