Air Conditioning Condensr/Compressr (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Air Conditioning Condensr/Compressr (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR153879 BOLT $4.68 To Order
Photo Part No Description Price (each) Stock
LR158521 SCREW $3.66 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
FS108306 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
LR153378 SPACER $14.19 To Order
Photo Part No Description Price (each) Stock
LR159067 DOWEL $5.69 To Order
Photo Part No Description Price (each) Stock
LR152171 CONDENSER $487.74 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $239.21 To Order
Photo Part No Description Price (each) Stock
LR153390 HOSE - AIR CONDITIONING $186.71 To Order
Photo Part No Description Price (each) Stock
LR153864 PLATE - COMPRESSOR MOUNTING $18.67 To Order
Photo Part No Description Price (each) Stock
LR153312 COMPRESSOR - AIR CONDITIONING $1,572.60 To Order
Photo Part No Description Price (each) Stock
LR159342 BRACKET - COMPRESSOR $62.47 To Order
Photo Part No Description Price (each) Stock
LR122304 WASHER - SEALING $15.25 To Order
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING $14.52 To Order
Photo Part No Description Price (each) Stock
LR124621 WASHER - SEALING $15.67 To Order
Photo Part No Description Price (each) Stock
LR153388 TUBE - COMPRESSOR LINE $167.78 To Order
Photo Part No Description Price (each) Stock
LR153387 TUBE - A/C COMPRESSOR $168.27 To Order
View All

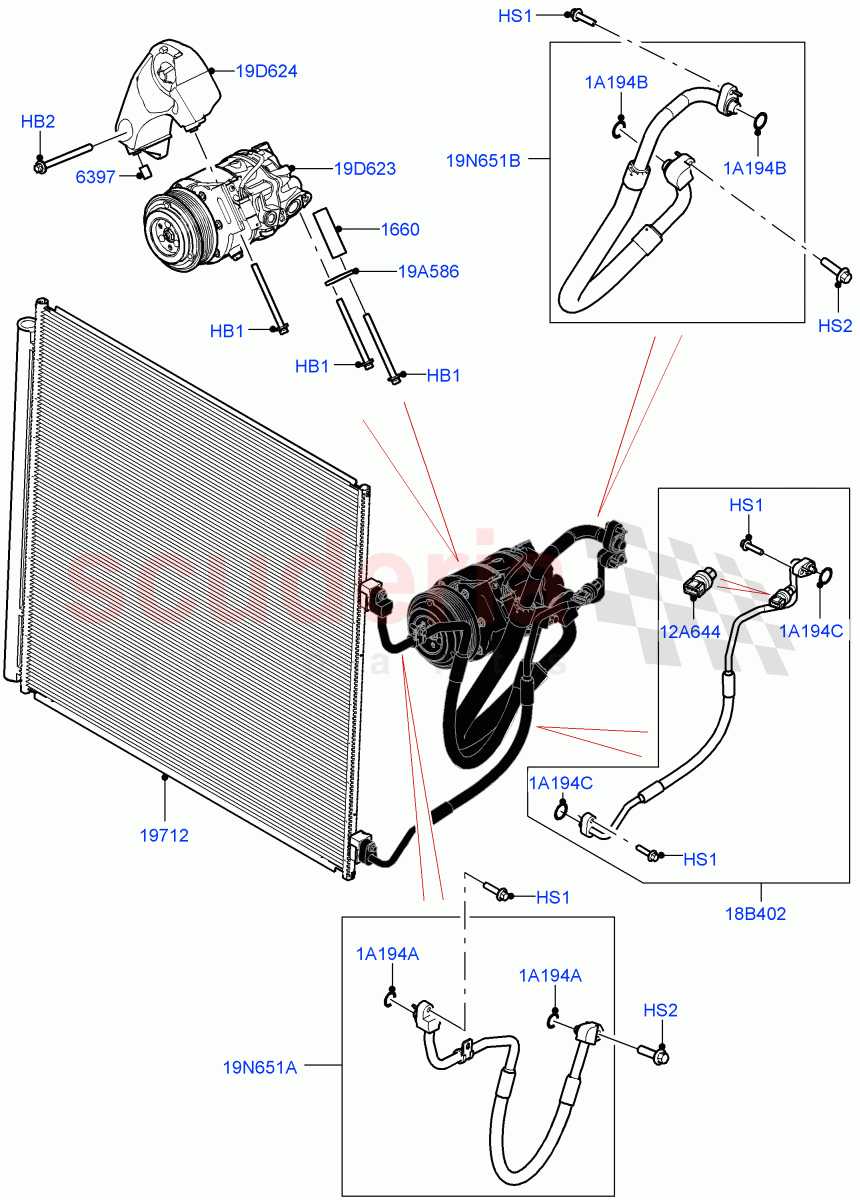

Air Conditioning Condensr/Compressr (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR153879
BOLT
M8 x 95MM 		$4.68 4
HB2 LR158521
SCREW
M8 X 75MM 		$3.66 3
HS1 FS106256
SCREW
M6 x 25MM 		$0.42 4
HS2 FS108306
SCREW
M8 x 30MM 		$0.46 2
1A194A LR122304
WASHER - SEALING
12.7MM 		$15.25 2
1A194B LR122305
WASHER - SEALING
19.05 MM 		$14.52 2
1A194C LR124621
WASHER - SEALING
3/8" 		$15.67 2
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Pressure Sensor 		$239.21 1
18B402 LR153390
HOSE - AIR CONDITIONING
Condenser Outlet 		$186.71 1
19A586 LR153864
PLATE - COMPRESSOR MOUNTING 		$18.67 1
19D623 LR153312
COMPRESSOR - AIR CONDITIONING 		$1,572.60 1
19D624 LR159342
BRACKET - COMPRESSOR 		$62.47 1
19N651A LR153388
TUBE - COMPRESSOR LINE
Condenser Inlet Tube 		$167.78 1
19N651B LR153387
TUBE - A/C COMPRESSOR
Compressor Inlet 		$168.27 1
1660 LR153378
SPACER 		$14.19 1
6397 LR159067
DOWEL 		$5.69 2
19712 LR152171
CONDENSER 		$487.74 1
