Air Conditioning Condensr/Compressr (3.0L Aj20D6 Diesel High, Premium Air Conditioning-Front/Rear,...

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Air Conditioning Condensr/Compressr (3.0L AJ20D6 Diesel High, Premium Air Conditioning-Front/Rear,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FB108076 BOLT $0.62 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.96 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.09 IN STOCK
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
LR153403 LABEL - DUAL BATTERY $18.49 To Order
Photo Part No Description Price (each) Stock
LR153402 SEAL - RUBBER $17.84 To Order
Photo Part No Description Price (each) Stock
LR153394 TUBE- A/C EVAPORATOR INLET & OUTLET $220.57 To Order
LR153392 TUBE- A/C EVAPORATOR INLET & OUTLET $220.16 To Order
Photo Part No Description Price (each) Stock
LR153395 TUBE- A/C EVAPORATOR INLET & OUTLET $211.65 To Order
Photo Part No Description Price (each) Stock
LR153400 TUBE - AUXILIARY EVAPORATOR $131.85 To Order
Photo Part No Description Price (each) Stock
LR153396 TUBE - AUXILIARY EVAPORATOR $131.85 To Order
Photo Part No Description Price (each) Stock
LR153397 TUBE - AUXILIARY EVAPORATOR $246.80 To Order
LR153399 TUBE - AUXILIARY EVAPORATOR $246.82 To Order
Photo Part No Description Price (each) Stock
LR153398 TUBE - AUXILIARY EVAPORATOR $197.77 To Order
Photo Part No Description Price (each) Stock
LR131164 VALVE - AIR CONDITIONING $51.18 To Order
LR131165 VALVE - AIR CONDITIONING $53.35 To Order
JUS500030 VALVE $15.41 To Order
Photo Part No Description Price (each) Stock
LR133088 CAP - VALVE $23.84 To Order
LR133089 CAP - VALVE $25.12 To Order
LR133087 CAP - VALVE $27.17 To Order
Photo Part No Description Price (each) Stock
LR124621 WASHER - SEALING $15.67 To Order
Photo Part No Description Price (each) Stock
LR124622 WASHER - SEALING $15.67 To Order
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING $14.52 To Order
View All

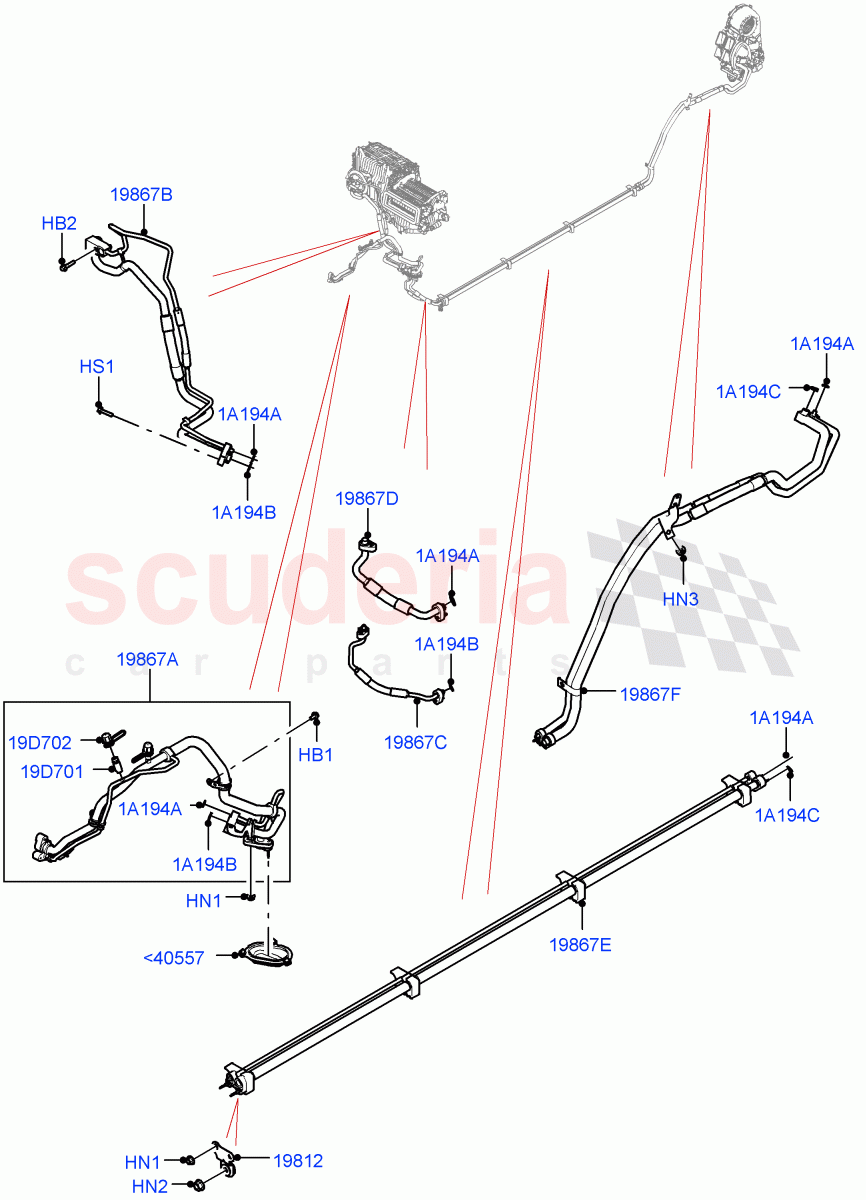

Air Conditioning Condensr/Compressr (3.0L AJ20D6 Diesel High, Premium Air Conditioning-Front/Rear, 3.0L AJ20P6 Petrol High, 4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<40557 LR153402
SEAL - RUBBER 		$17.84 1
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.52 4
HB2 FB108076
BOLT
M8 X 35MM 		$0.62 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 4
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 		$1.96 1
HN3 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$3.09 2
HS1 FS106256
SCREW
M6 x 25MM 		$0.42 2
1A194A LR124621
WASHER - SEALING
3/8" 		$15.67 6
1A194B LR124622
WASHER - SEALING
15.88MM 		$15.67 2
1A194C LR122305
WASHER - SEALING
19.05 MM 		$14.52 4
19D701 LR131164
VALVE - AIR CONDITIONING
Air Con Refrigerant-HF01234YF / High Pressure Charge Port 		$51.18 1
19D701 LR131165
VALVE - AIR CONDITIONING
Air Con Refrigerant-HF01234YF / Low Pressure Charge Port 		$53.35 1
19D701 JUS500030
VALVE
Air Conditioning Refrigerant-R134A / High Pressure Charge Port, Low Pressure Port 		$15.41 2
19D702 LR133088
CAP - VALVE
Air Con Refrigerant-HF01234YF / High Pressure Charge Port 		$23.84 1
19D702 LR133089
CAP - VALVE
Air Con Refrigerant-HF01234YF / Low Pressure Charge Port 		$25.12 1
19D702 LR133087
CAP - VALVE
Air Conditioning Refrigerant-R134A / High Pressure Charge Port, Low Pressure Port 		$27.17 2
19812 LR153403
LABEL - DUAL BATTERY 		$18.49 1
19867A LR153394
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / To Compressor, To Condenser 		$220.57 1
19867A LR153392
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / To Compressor, To Condenser 		$220.16 1
19867B LR153395
TUBE- A/C EVAPORATOR INLET & OUTLET
To HVAC Unit 		$211.65 1
19867C LR153400
TUBE - AUXILIARY EVAPORATOR
LH Front 		$131.85 1
19867D LR153396
TUBE - AUXILIARY EVAPORATOR
RH Front 		$131.85 1
19867E LR153397
TUBE - AUXILIARY EVAPORATOR
Standard Wheelbase / Middle 		$246.80 1
19867E LR153399
TUBE - AUXILIARY EVAPORATOR
Long Wheelbase / Middle 		$246.82 1
19867F LR153398
TUBE - AUXILIARY EVAPORATOR
Rear 		$197.77 1
