Name: Engine Harness (LH Side) (4.4 V8 Turbo Petrol (NC10))
Rating: 4.1 (1 reviews)

View All

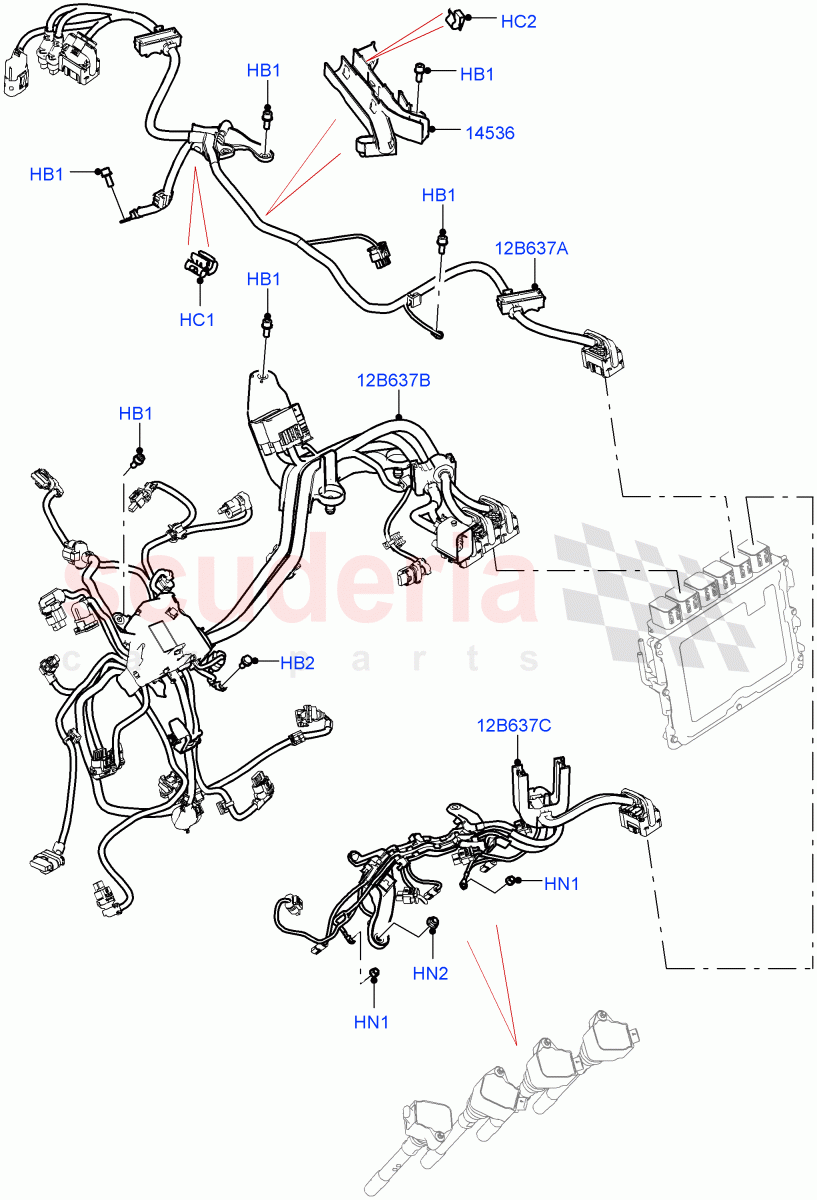

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158585	BOLT AND WASHER - TORX HEAD	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158328	BOLT AND WASHER - HEX.HEAD	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166985	CLIP - WIRING	$3.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163186	CLIP - SINGLE	$18.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158472	NUT - FLANGED	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166039	NUT - FLANGED	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159853	BRACKET	$46.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158901	WIRING	$1,000.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158813	WIRING - ENGINE	$1,000.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158875	WIRING - FUEL INJECTORS	$142.23	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158585	BOLT AND WASHER - TORX HEAD	LR158585 BOLT AND WASHER - TORX HEAD M6 X 16MM	$2.15	8
HB2	LR158328	BOLT AND WASHER - HEX.HEAD	LR158328 BOLT AND WASHER - HEX.HEAD M6 x 14mm	$2.15	1
HC1	LR166985	CLIP - WIRING	LR166985 CLIP - WIRING Engine Harness, Ground Link	$3.75	1
HC2	LR163186	CLIP - SINGLE	LR163186 CLIP - SINGLE Bracket, Engine Harness, Interconnection	$18.65	2
HN1	LR158472	NUT - FLANGED	LR158472 NUT - FLANGED M5	$1.30	2
HN2	LR166039	NUT - FLANGED	LR166039 NUT - FLANGED M6	$2.58	1
12B637A	LR158901	WIRING	LR158901 WIRING Interconnection, RH And LH	$1,000.40	1
12B637B	LR158813	WIRING - ENGINE	LR158813 WIRING - ENGINE LH Cylinder Bank, Main Harness - Engine	$1,000.40	1
12B637C	LR158875	WIRING - FUEL INJECTORS	LR158875 WIRING - FUEL INJECTORS Fuel Injector, Ignition Coil, LH Cylinder Bank	$142.23	1
14536	LR159853	BRACKET	LR159853 BRACKET Interconnection, RH And LH, Wire	$46.76	1

Engine Harness (Lh Side) (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
