Rear Lamps

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Lamps

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR163962 NUT AND WASHER - HEX. $2.81 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR089442 LAMP - LICENCE PLATE $35.66 To Order
Photo Part No Description Price (each) Stock
LR152194 LAMP - SIDE MARKER $59.58 To Order
LR152199 LAMP - SIDE MARKER $59.58 To Order
Photo Part No Description Price (each) Stock
453123546 LAMP PANEL - TAILGATE $976.72 To Order
LR152207 LAMP PANEL - TAILGATE $494.20 To Order
Photo Part No Description Price (each) Stock
LR152172 LAMP - REAR- STOP AND FLASHER $263.56 IN STOCK
LR152173 LAMP $343.87 To Order
Photo Part No Description Price (each) Stock
LR152301 LAMP - REAR $156.37 To Order
LR152299 LAMP - REAR $156.37 To Order
453123549 LAMP - REAR $156.37 To Order
...and 1 more part variants. See table on right for more details.
View All

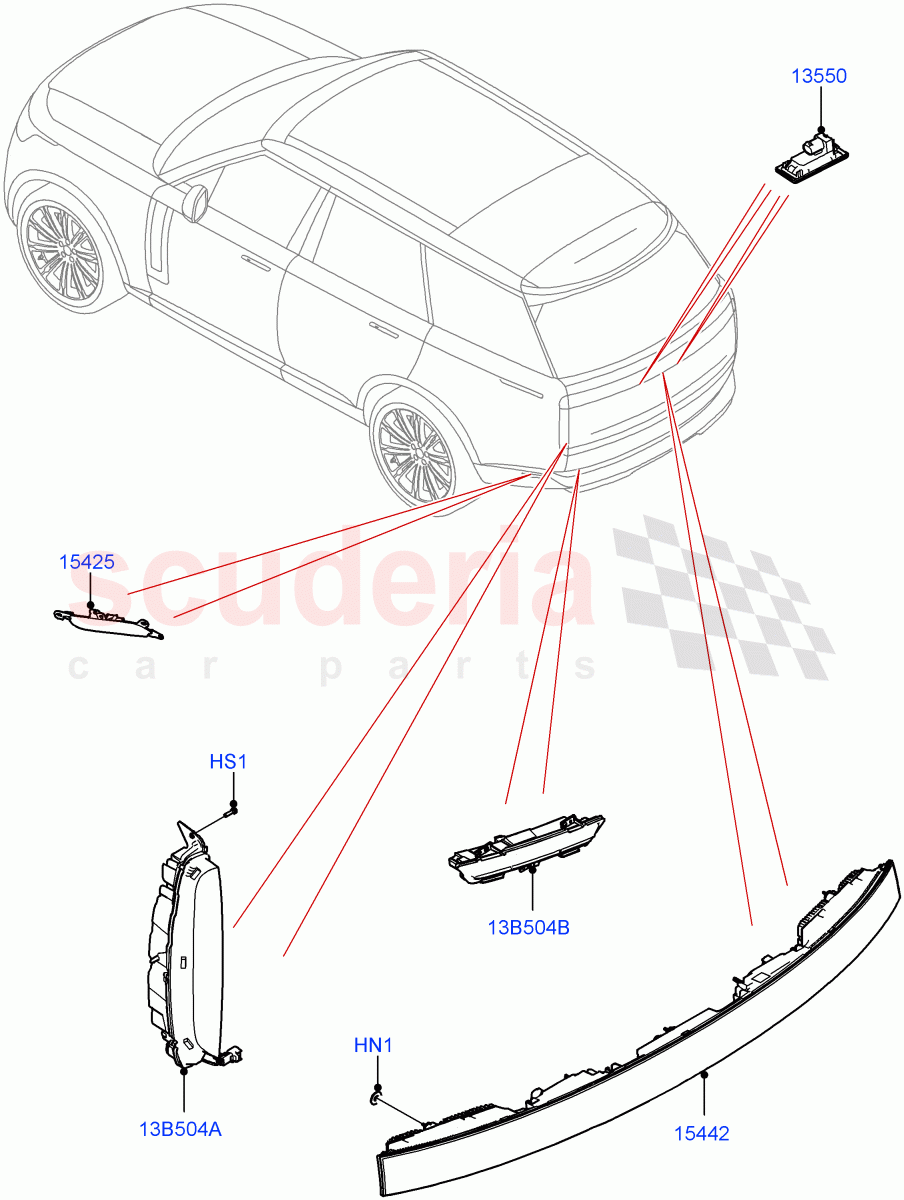

Rear Lamps of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR163962
NUT AND WASHER - HEX.
Located On Tailgate, Nut - M5 Hex Flange 8 		$2.81 5
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 4
13B504A LR152172
LAMP - REAR- STOP AND FLASHER
RH, Bodyside
IN STOCK 		$263.56 1
13B504A LR152173
LAMP
LH, Bodyside 		$343.87 1
13B504B LR152301
LAMP - REAR
H/Lamp Operation FM VSS 108 Pattern / LH, Bumper Side 		$156.37 1
13B504B LR152299
LAMP - REAR
H/Lamp Operation RHD - Left Justify / LH, Bumper Side 		$156.37 1
13B504B 453123549
LAMP - REAR
H/Lamp Operation FM VSS 108 Pattern / RH, Bumper Side 		$156.37 1
13B504B 453123548
LAMP - REAR
H/Lamp Operation RHD - Left Justify / RH, Bumper Side 		$156.37 1
13550 LR089442
LAMP - LICENCE PLATE 		$35.66 2
15425 LR152194
LAMP - SIDE MARKER
H/Lamp Operation FM VSS 108 Pattern / RH 		$59.58 1
15425 LR152199
LAMP - SIDE MARKER
H/Lamp Operation FM VSS 108 Pattern / LH 		$59.58 1
15442 453123546
LAMP PANEL - TAILGATE
H/Lamp Operation LHD-Right Justify / Located On Tailgate 		$976.72 1
15442 LR152207
LAMP PANEL - TAILGATE
H/Lamp Operation FM VSS 108 Pattern / Located On Tailgate 		$494.20 1
