Rear Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With Ace)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR096556 BOLT $4.42 To Order
Photo Part No Description Price (each) Stock
LR093829 BOLT $1.23 To Order
Photo Part No Description Price (each) Stock
LR090496 BOLT $2.92 To Order
Photo Part No Description Price (each) Stock
FY112056 NUT - HEX. $1.95 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
RYH500390 NUT AND WASHER - HEX. $1.71 To Order
Photo Part No Description Price (each) Stock
RYH500590 NUT - HEX. $1.36 To Order
Photo Part No Description Price (each) Stock
LR033039 SCREW AND WASHER - HEX HEAD $1.68 To Order
Photo Part No Description Price (each) Stock
LR038560 SCREW $3.28 To Order
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
LR153459 SHIELD - SPLASH $141.13 To Order
Photo Part No Description Price (each) Stock
LR153446 BAR - REAR STABILIZER $3,633.01 To Order
Photo Part No Description Price (each) Stock
LR153871 WIRE - EARTH $21.91 To Order
Photo Part No Description Price (each) Stock
LR152928 LINK - STABILIZER BAR $116.06 To Order
Photo Part No Description Price (each) Stock
LR153853 MODULE - ELECTRONIC CONTROL UNIT $935.00 To Order
Photo Part No Description Price (each) Stock
LR153857 BRACKET - MODULE $36.45 To Order
Photo Part No Description Price (each) Stock
LR154191 BRACKET - CABLE SUPPORT $28.07 To Order
View All

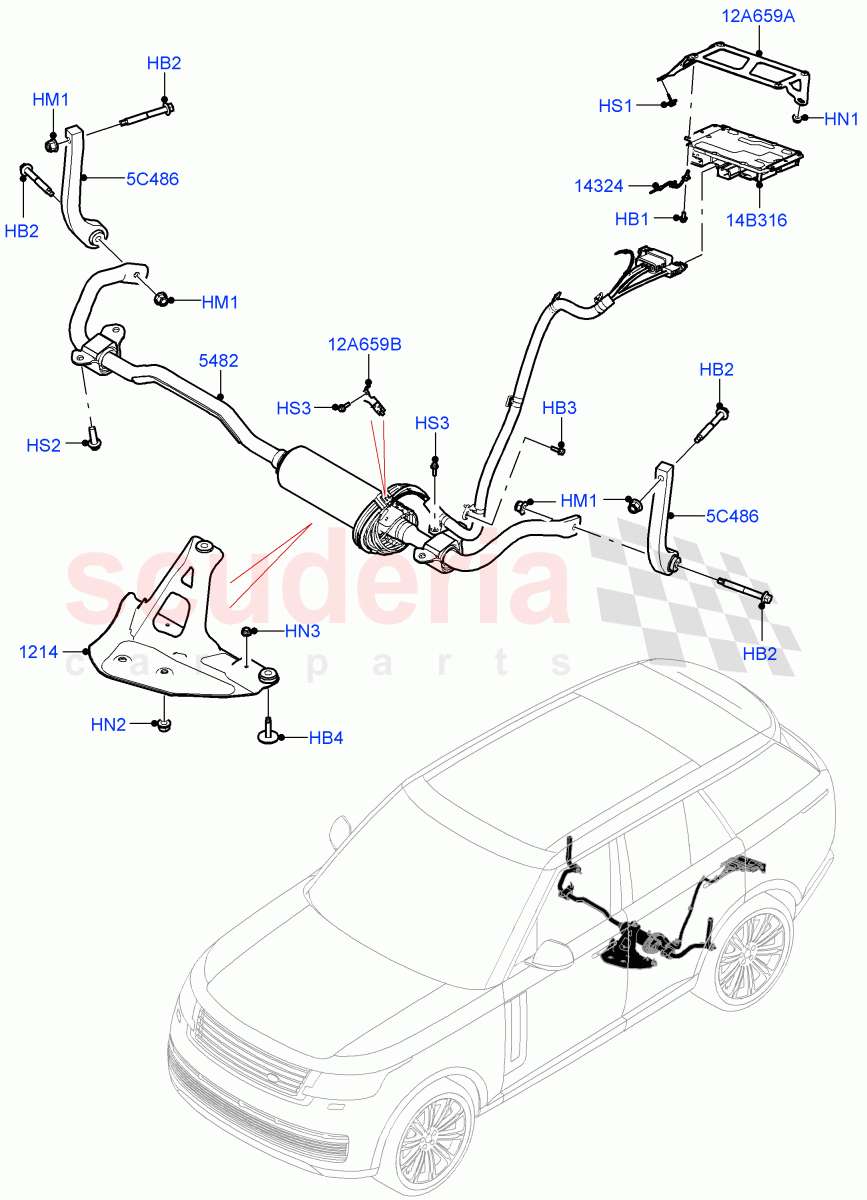

Rear Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.52 4
HB2 LR096556
BOLT
Hexagonal Head, M12 x 90MM 		$4.42 4
HB3 LR093829
BOLT
Hexagonal Head, M6 X 20MM 		$1.23 1
HB4 LR090496
BOLT
3.0L AJ20P6 Petrol High / Hexagonal Head, M10 X 50MM 		$2.92 2
HM1 FY112056
NUT - HEX.
Hex Nut Type, M12
IN STOCK 		$1.95 4
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 1
HN2 RYH500390
NUT AND WASHER - HEX.
4.4 V8 Turbo Petrol (NC10) / M10, Nut And Washer 		$1.71 2
HN3 RYH500590
NUT - HEX.
3.0L AJ20P6 Petrol High / Hexagonal Head, M6 		$1.36 2
HS1 LR033039
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 x 19MM 		$1.68 2
HS2 LR038560
SCREW
Hexagonal Head, M12 x 40MM 		$3.28 4
HS3 RYP500200
SCREW
Hexagonal Head, M6 X 20MM 		$0.95 2
5C486 LR152928
LINK - STABILIZER BAR
RH/LH 		$116.06 2
12A659A LR153857
BRACKET - MODULE
ECU 		$36.45 1
12A659B LR154191
BRACKET - CABLE SUPPORT
Cable Bracket 		$28.07 1
14B316 LR153853
MODULE - ELECTRONIC CONTROL UNIT
Active Roll Bar (ARB) System Control 		$935.00 1
1214 LR153459
SHIELD - SPLASH
4.4 V8 Turbo Petrol (NC10) / EARC Protection 		$141.13 1
5482 LR153446
BAR - REAR STABILIZER
Includes Insulators And Clamps, With Harness 		$3,633.01 1
14324 LR153871
WIRE - EARTH
Module To Body 		$21.91 1
