Air Suspension Compressor And Lines (Air Suspension Lines)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Air Suspension Compressor And Lines (Air Suspension Lines)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037085 CLIP - DOUBLE $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR037084 CLIP - HOSE $1.16 To Order
Photo Part No Description Price (each) Stock
LR169121 CONNECTOR - VALVE BLOCK TO PIPE $23.18 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.00 IN STOCK
Photo Part No Description Price (each) Stock
LR153305 TUBE - AIR SUSPENSION $140.33 To Order
Photo Part No Description Price (each) Stock
LR153304 TUBE - AIR SUSPENSION $135.59 To Order
Photo Part No Description Price (each) Stock
LR153299 TUBE - AIR SUSPENSION $125.15 To Order
LR153300 TUBE - AIR SUSPENSION $185.72 To Order
Photo Part No Description Price (each) Stock
LR153291 TUBE - AIR SUSPENSION $111.75 To Order
Photo Part No Description Price (each) Stock
LR153293 TUBE - AIR SUSPENSION $125.84 To Order
Photo Part No Description Price (each) Stock
LR153296 TUBE - AIR SUSPENSION $98.60 To Order
Photo Part No Description Price (each) Stock
LR153320 TANK - AIR SUSPENSION $315.88 To Order
Photo Part No Description Price (each) Stock
LR153319 TANK - AIR SUSPENSION $315.88 To Order
View All

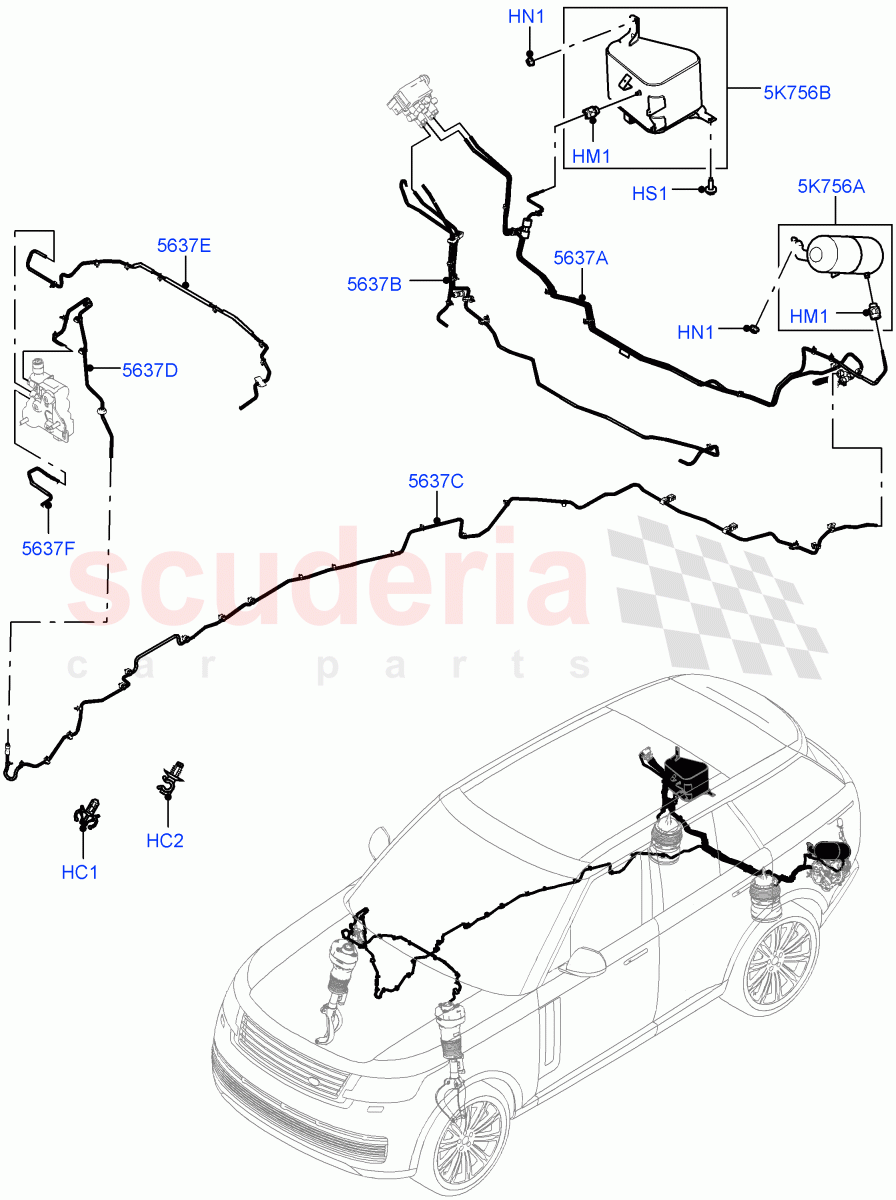

Air Suspension Compressor And Lines (Air Suspension Lines) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR037085
CLIP - DOUBLE
6MM, Double
IN STOCK 		$1.11 -
HC2 LR037084
CLIP - HOSE
6MM, Single 		$1.16 -
HM1 LR169121
CONNECTOR - VALVE BLOCK TO PIPE
Air Tube Connector 		$23.18 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 3
HS1 RYG501590
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$1.00 3
5K756A LR153320
TANK - AIR SUSPENSION
LH 		$315.88 1
5K756B LR153319
TANK - AIR SUSPENSION
RH 		$315.88 1
5637A LR153305
TUBE - AIR SUSPENSION
Air Compressor To Valve Block, Air Tanks Connection, Axle Valve To Reservoir Tank, Rear 		$140.33 1
5637B LR153304
TUBE - AIR SUSPENSION
Axle Valve To Rear LH Spring, Axle Valve To Rear RH Spring, Rear 		$135.59 1
5637C LR153299
TUBE - AIR SUSPENSION
Standard Wheelbase / Compressor To Front Pipeline, Middle 		$125.15 1
5637C LR153300
TUBE - AIR SUSPENSION
Long Wheelbase / Compressor To Front Pipeline, Middle 		$185.72 1
5637D LR153291
TUBE - AIR SUSPENSION
Front, To Front Axle Valve 		$111.75 1
5637E LR153293
TUBE - AIR SUSPENSION
Axle Valve To Front LH Spring, Front 		$125.84 1
5637F LR153296
TUBE - AIR SUSPENSION
Axle Valve To Front RH Spring, Front 		$98.60 1
