Name: Turbocharger (Lubrication And Cooling) (3.0L AJ20P6 Petrol High)
Rating: 5.0 (1 reviews)

View All

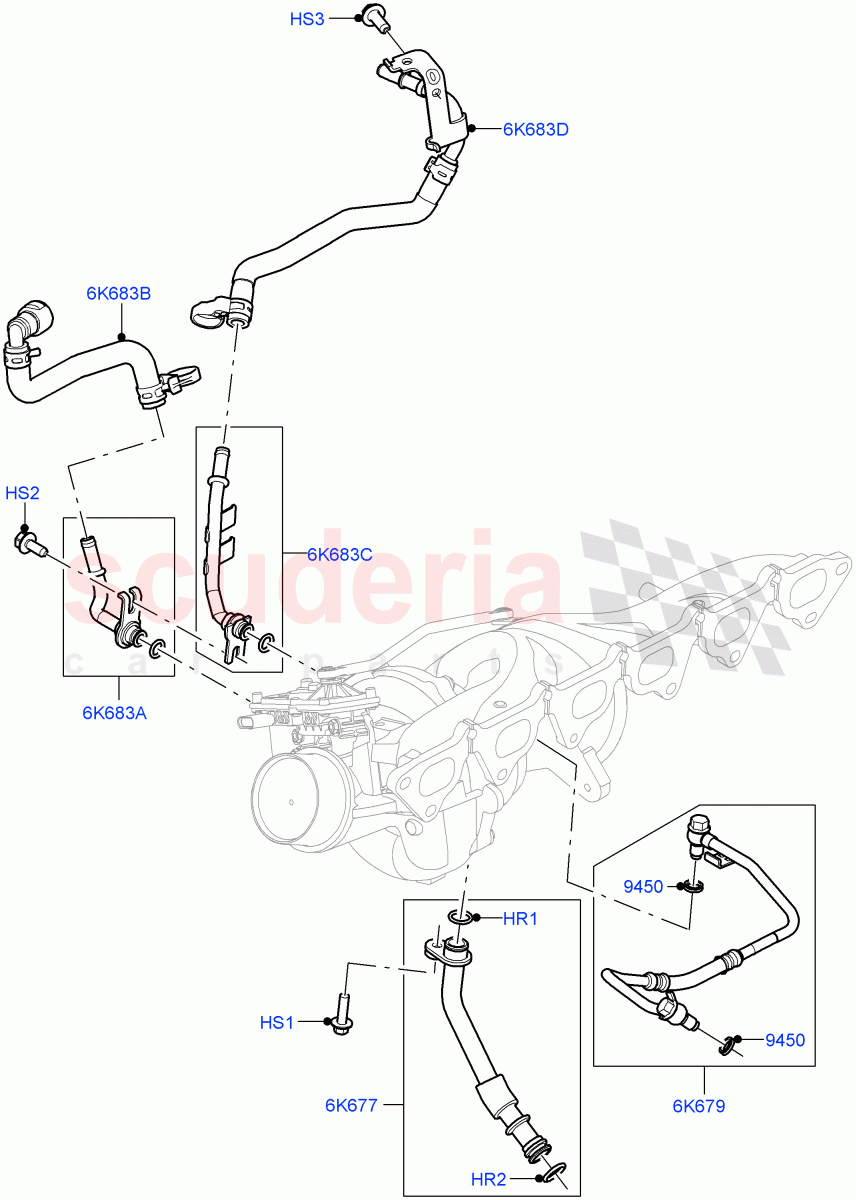

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR136779	RING - SEALING	$4.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122683	SCREW	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYP500070	SCREW	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR150102	TUBE	$26.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150103	PIPE - OIL DRAIN	$26.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR183050	CONNECTION - WATER	$73.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151547	HOSE - WATER	$65.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR183052	HOSE - WATER OUTLET	$71.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124541	CONNECTION - WATER	$54.14	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR136779	RING - SEALING IN STOCK	LR136779 RING - SEALING 13.8 x 2.5, Drain, Upper IN STOCK	$4.84	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Drain, Lower IN STOCK	$3.98	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.60	1
HS2	LR122683	SCREW IN STOCK	LR122683 SCREW M6 X 16MM IN STOCK	$1.89	1
HS3	PYP500070	SCREW	PYP500070 SCREW 6 x 16MM, Hexagonal Head	$0.80	1
6K677	LR150102	TUBE	LR150102 TUBE	$26.98	1
6K679	LR150103	PIPE - OIL DRAIN	LR150103 PIPE - OIL DRAIN	$26.98	1
6K683A	LR183050	CONNECTION - WATER	LR183050 CONNECTION - WATER Cooling For Turbocharger, Feed, Lower	$73.69	1
6K683B	LR151547	HOSE - WATER	LR151547 HOSE - WATER Cooling For Turbocharger, Feed, Upper	$65.01	1
6K683C	LR183052	HOSE - WATER OUTLET	LR183052 HOSE - WATER OUTLET Cooling For Turbocharger, Lower, Return	$71.17	1
6K683D	LR124541	CONNECTION - WATER	LR124541 CONNECTION - WATER Cooling For Turbocharger, Return, Upper	$54.14	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt IN STOCK	$4.69	4

Turbocharger (Lubrication And Cooling) (3.0L Aj20P6 Petrol High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]
