Name: Fuel Pump And Sender Unit (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)
Rating: 5.0 (1 reviews)

View All

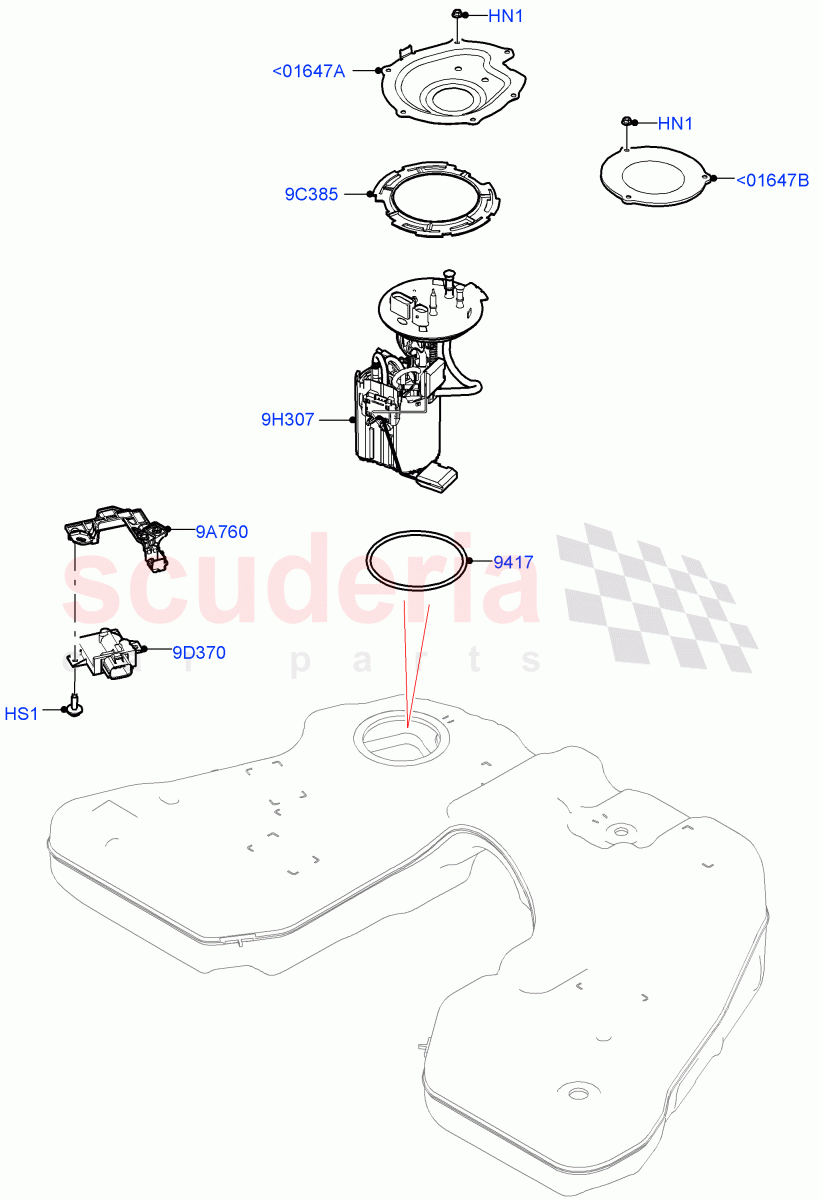

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR158226	BRACKET	$11.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR187425	CONTROL - FUEL PUMP DRIVE	$269.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159561	COVER - FUEL SENDER	$31.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161830	PLUG - FLOOR PAN	$18.06	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01647A	LR159561	COVER - FUEL SENDER	LR159561 COVER - FUEL SENDER RH	$31.47	1
<01647B	LR161830	PLUG - FLOOR PAN	LR161830 PLUG - FLOOR PAN LH	$18.06	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 IN STOCK	$1.03	9
HS1	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM	$3.07	2
9A760	LR158226	BRACKET	LR158226 BRACKET Module	$11.56	1
9C385	LR152287	RING - RETAINING	LR152287 RING - RETAINING Tank Pet NVLD	$24.14	1
9C385	LR152285	RING - RETAINING	LR152285 RING - RETAINING Tank PHEV	$24.14	1
9D370	LR187425	CONTROL - FUEL PUMP DRIVE	LR187425 CONTROL - FUEL PUMP DRIVE	$269.30	1
9H307	LR158454	SENDER AND PUMP	LR158454 SENDER AND PUMP Pet Tank W/O Leak Det - Std Filter	$628.62	1
9H307	LR165092	SENDER AND PUMP	LR165092 SENDER AND PUMP Tank PHEV	$504.93	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring IN STOCK	$10.56	1

Fuel Pump And Sender Unit (3.0L Aj20P6 Petrol High, 3.0L Aj20P6 Petrol Phev)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]
