Name: Front Exhaust System (3.0L AJ20D6 Diesel High, Euro Stage 4 Emissions)
Rating: 5.0 (1 reviews)

View All

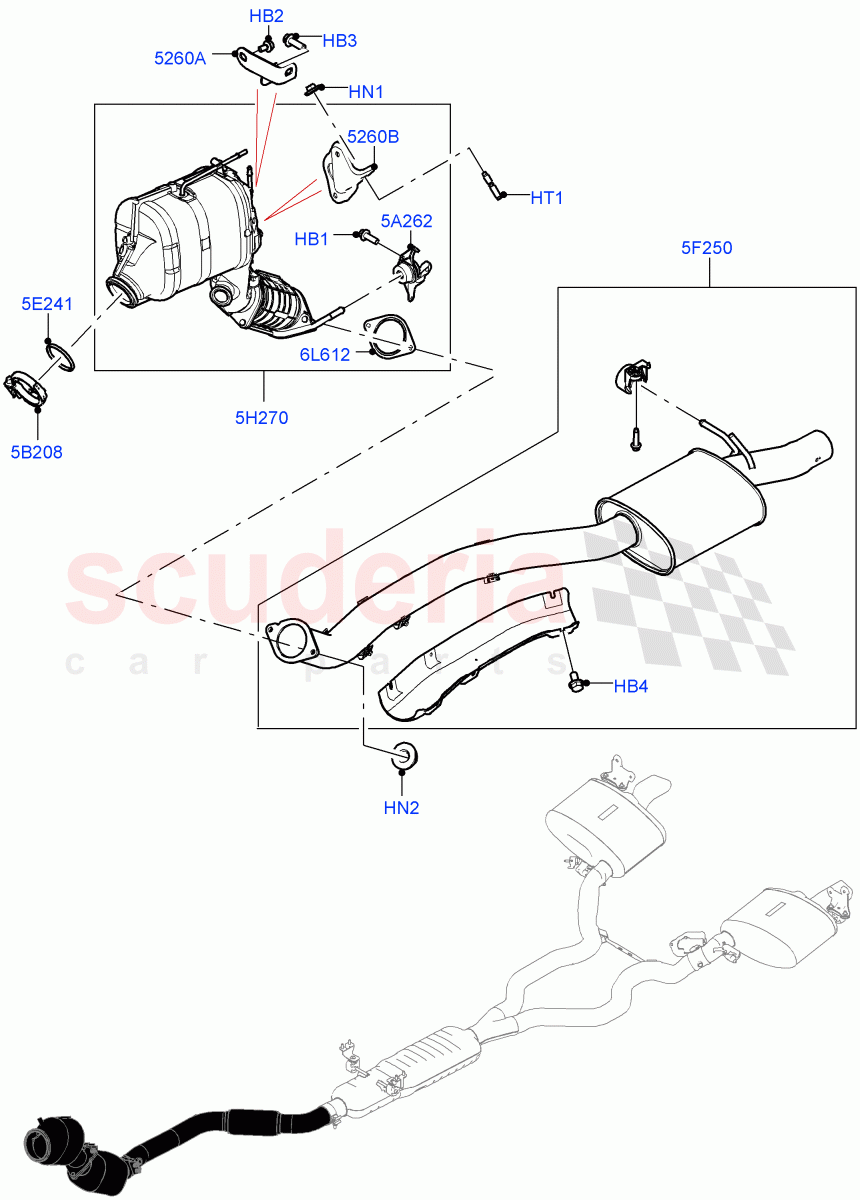

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR138364	BOLT	$4.68	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138362	BRACKET	$21.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135801	BRACKET - EXHAUST PIPE MOUNTING	$40.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135802	INSULATOR - RUBBER	$24.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125287	CLAMP - EXHAUST	$38.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	$30.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156158	PIPE - EXHAUST	$816.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155142	FILTER - DIESEL PARTICLE	$3,027.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135804	GASKET - TURBOCHARGER	$13.36	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM IN STOCK	$3.57	1
HB2	LR138364	BOLT	LR138364 BOLT M8 X 16, To Upper Bracket	$4.68	1
HB3	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. M10 X 25MM, To Upper Bracket	$1.79	1
HB4	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM, Shield IN STOCK	$0.52	6
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.67	2
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL Exhaust pipe, M8	$0.52	2
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	$2.07	2
5A262	LR135802	INSULATOR - RUBBER	LR135802 INSULATOR - RUBBER Front	$24.27	1
5B208	LR125287	CLAMP - EXHAUST	LR125287 CLAMP - EXHAUST Turbocharger Outlet	$38.56	1
5E241	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet	$30.12	1
5F250	LR156158	PIPE - EXHAUST	LR156158 PIPE - EXHAUST	$816.82	1
5H270	LR155142	FILTER - DIESEL PARTICLE	LR155142 FILTER - DIESEL PARTICLE	$3,027.55	1
6L612	LR135804	GASKET - TURBOCHARGER	LR135804 GASKET - TURBOCHARGER Outlet	$13.36	1
5260A	LR138362	BRACKET	LR138362 BRACKET Upper	$21.63	1
5260B	LR135801	BRACKET - EXHAUST PIPE MOUNTING	LR135801 BRACKET - EXHAUST PIPE MOUNTING Lower	$40.43	1

Front Exhaust System (3.0L Aj20D6 Diesel High, Euro Stage 4 Emissions)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]
