Name: Exhaust Sensors And Modules (3.0L AJ20D6 Diesel High, Euro Stage 4 Emissions, Stage V Plus DPF)
Rating: 5.0 (1 reviews)

View All

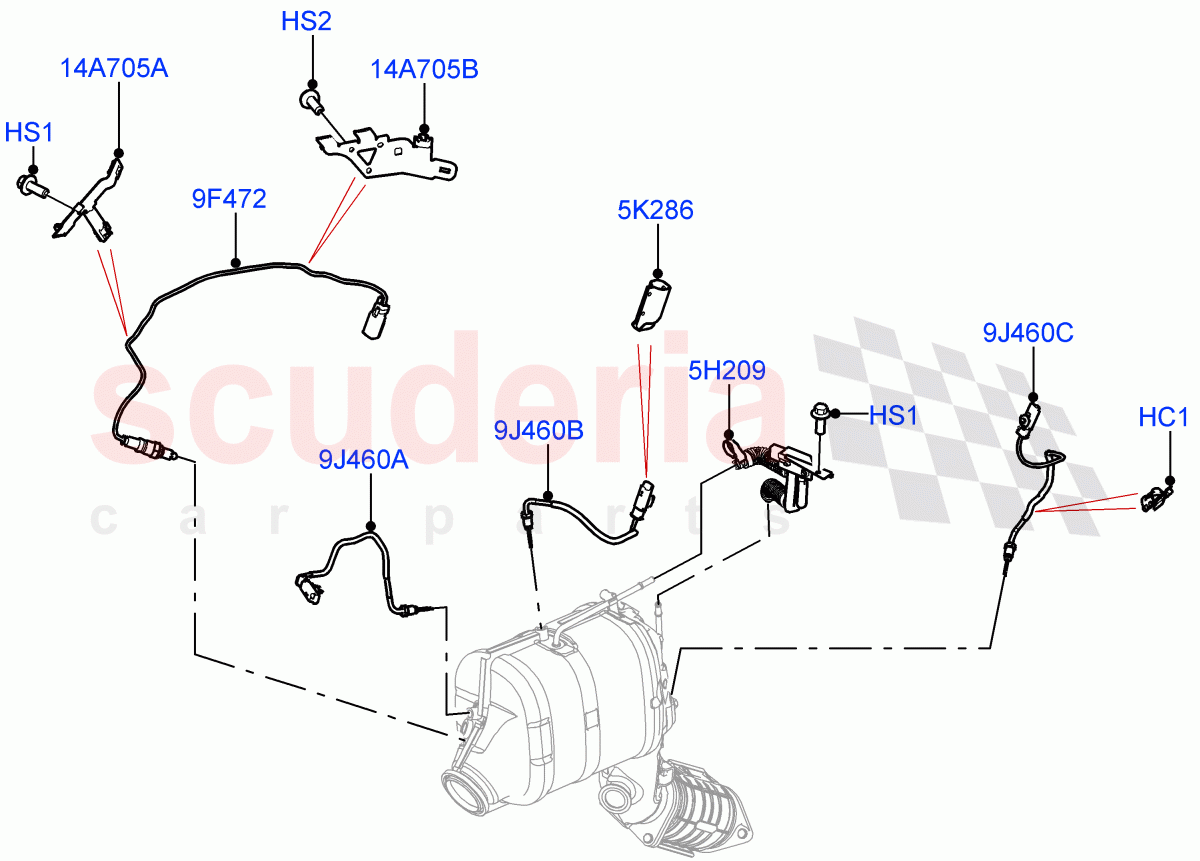

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR063050	CLIP	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133155	SENSOR - EXHAUST GAS PRESSURE	$123.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139159	HEAT SHIELD - CONNECTOR	$37.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125273	SENSOR - EXHAUST GAS - OXYGEN	$351.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR180808	SENSOR - EXHAUST GAS - TEMPERATURE	$138.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125271	SENSOR - EXHAUST GAS - TEMPERATURE	$160.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125272	SENSOR - EXHAUST GAS - TEMPERATURE	$172.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156718	BRACKET	$49.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141647	BRACKET	$49.22	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR063050	CLIP	LR063050 CLIP 8-9MM X 3-6MM	$1.79	2
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$1.24	2
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.31	3
5H209	LR133155	SENSOR - EXHAUST GAS PRESSURE	LR133155 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure, Includes Bracket	$123.62	1
5K286	LR139159	HEAT SHIELD - CONNECTOR	LR139159 HEAT SHIELD - CONNECTOR Connector	$37.19	2
9F472	LR125273	SENSOR - EXHAUST GAS - OXYGEN	LR125273 SENSOR - EXHAUST GAS - OXYGEN Hego Sensor	$351.57	1
9J460A	LR180808	SENSOR - EXHAUST GAS - TEMPERATURE	LR180808 SENSOR - EXHAUST GAS - TEMPERATURE Front	$138.80	1
9J460B	LR125271	SENSOR - EXHAUST GAS - TEMPERATURE	LR125271 SENSOR - EXHAUST GAS - TEMPERATURE Middle	$160.44	1
9J460C	LR125272	SENSOR - EXHAUST GAS - TEMPERATURE	LR125272 SENSOR - EXHAUST GAS - TEMPERATURE Rear	$172.06	1
14A705A	LR156718	BRACKET	LR156718 BRACKET Front, HEGO Bracket	$49.22	1
14A705B	LR141647	BRACKET	LR141647 BRACKET HEGO Bracket, Rear	$49.22	1

Exhaust Sensors And Modules (3.0L Aj20D6 Diesel High, Euro Stage 4 Emissions, Stage V Plus Dpf)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]
