Name: Exhaust Gas Recirculation (LH Side) (3.0L AJ20D6 Diesel High)
Rating: 4.2 (1 reviews)

View All

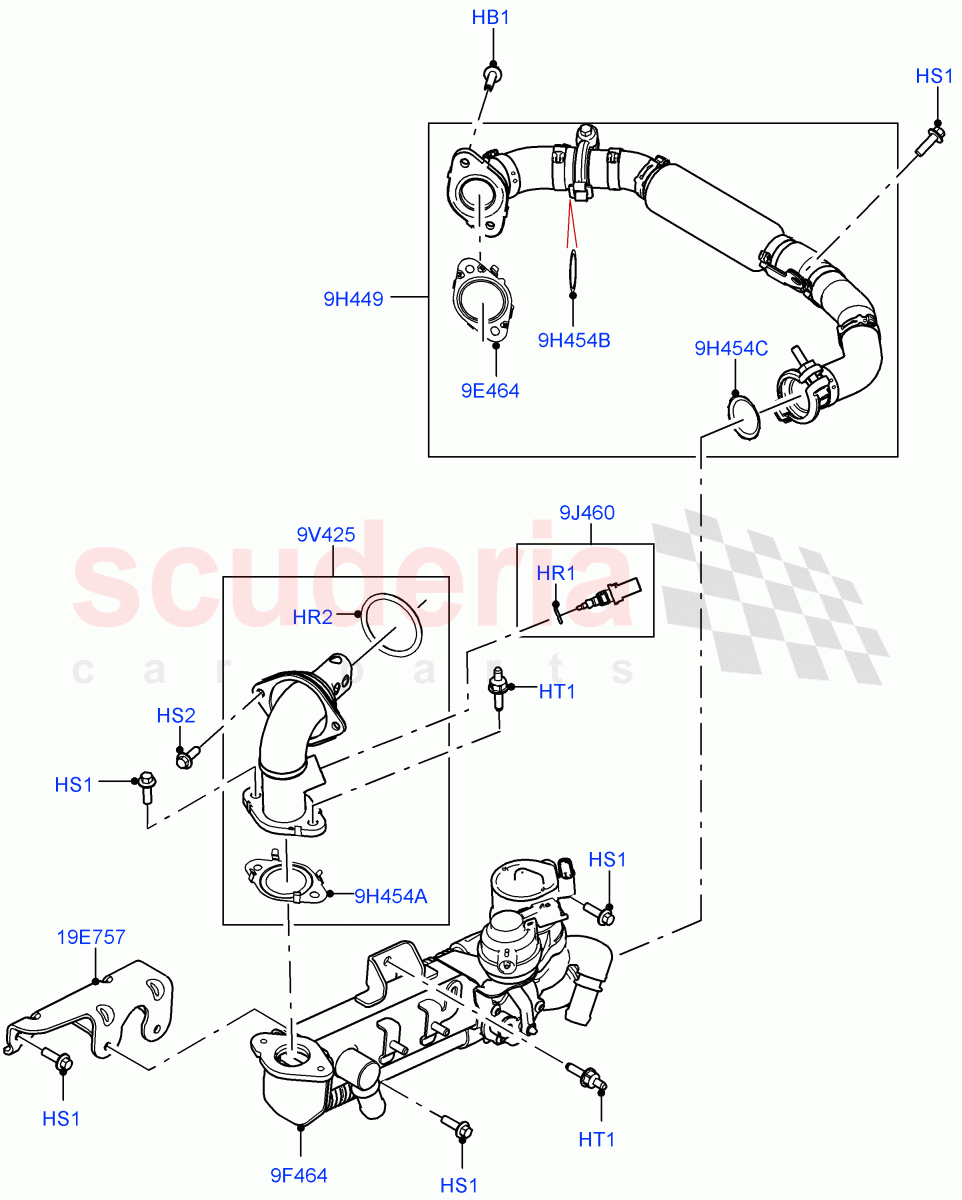

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$5.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR155610	O-RING	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155609	GASKET	$24.32	To Order

Photo	Part No	Description	Price (each)	Stock
	109123544	EGR Unit	$590.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140363	TUBE - EXHAUST GAS RECIRCULATION	$264.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$48.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125541	TUBE - EXHAUST GAS RECIRCULATION	$120.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125543	BRACKET - SUPPORT	$21.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155608	GASKET	$13.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155607	GASKET	$11.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155606	GASKET	$12.55	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR091557	BOLT	LR091557 BOLT M6 X 25MM	$3.01	2
HR1	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM IN STOCK	$5.12	1
HR2	LR155610	O-RING	LR155610 O-RING From EGR Cooler To Inlet Manifold, Tube	$3.45	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.60	7
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.30	2
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm	$3.99	3
9E464	LR155609	GASKET	LR155609 GASKET EGR Tube To Exhaust Manifold	$24.32	1
9F464	109123544	EGR Unit	109123544 EGR Unit	$590.75	1
9H449	LR140363	TUBE - EXHAUST GAS RECIRCULATION	LR140363 TUBE - EXHAUST GAS RECIRCULATION	$264.80	1
9H454A	LR155608	GASKET	LR155608 GASKET From EGR Cooler To Inlet Manifold, Tube	$13.56	1
9H454B	LR155607	GASKET	LR155607 GASKET	$11.97	1
9H454C	LR155606	GASKET	LR155606 GASKET	$12.55	1
9J460	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature	$48.07	1
9V425	LR125541	TUBE - EXHAUST GAS RECIRCULATION	LR125541 TUBE - EXHAUST GAS RECIRCULATION From EGR Cooler To Inlet Manifold	$120.89	1
19E757	LR125543	BRACKET - SUPPORT	LR125543 BRACKET - SUPPORT EGR Cooler	$21.70	1

Exhaust Gas Recirculation (Lh Side) (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]
