| Photo | Part No | Description | Price (each) | Stock |
 |
FN106046 | NUT - HEX. | $1.48 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
 |
FX108046 | NUT - LOCKING | $0.42 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
 |
RYG500190 | SCREW | $0.75 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR154397 | STUD | $4.56 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR133194 | KIT - FIXING PARTS | $49.62 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR157063 | TANK - DIESEL EXHAUST FLUID | $796.42 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR156115 | FILLER | $108.38 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR133195 | PUMP - DIESEL EXHAUST FLUID | $465.09 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR152198 | BRACKET | $12.93 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR152218 | SHIELD - TANK | $251.18 | To Order |
|
LR176322 | Shield | $247.10 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR115637 | CAP - FILLER | $14.41 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| HN1 |
FN106046 NUT - HEX. Filler Pipe, Hexagonal Head, M6 IN STOCK |
$1.48 | 3 | |
| HN2 |
FX108046 NUT - LOCKING M8, Shield IN STOCK |
$0.42 | 4 | |
| HS1 |
RYG500190 SCREW Bracket To Body, Hexagonal Head, M6 X 16MM IN STOCK |
$0.75 | 3 | |
| HT1 |
LR154397 STUD M10 x 34 mm + M8 x 26 mm |
$4.56 | 4 | |
| 2L051 |
LR133194 KIT - FIXING PARTS Diesel Exhaust Fluid Pump |
$49.62 | 1 | |
| 5J225 |
LR157063 TANK - DIESEL EXHAUST FLUID Complete Assembly |
$796.42 | 1 | |
| 5J232 |
LR156115 FILLER Assembly |
$108.38 | 1 | |
| 5L212 |
LR133195 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit |
$465.09 | 1 | |
| 9A760 |
LR152198 BRACKET RH Side |
$12.93 | 1 | |
| 9B007 |
LR152218 SHIELD - TANK To: NA004322 |
$251.18 | 1 | |
| 9B007 |
LR176322 Shield From: NA004323 |
$247.10 | 1 | |
| 17B626 |
LR115637 CAP - FILLER |
$14.41 | 1 |
Haven't found what you're looking for?

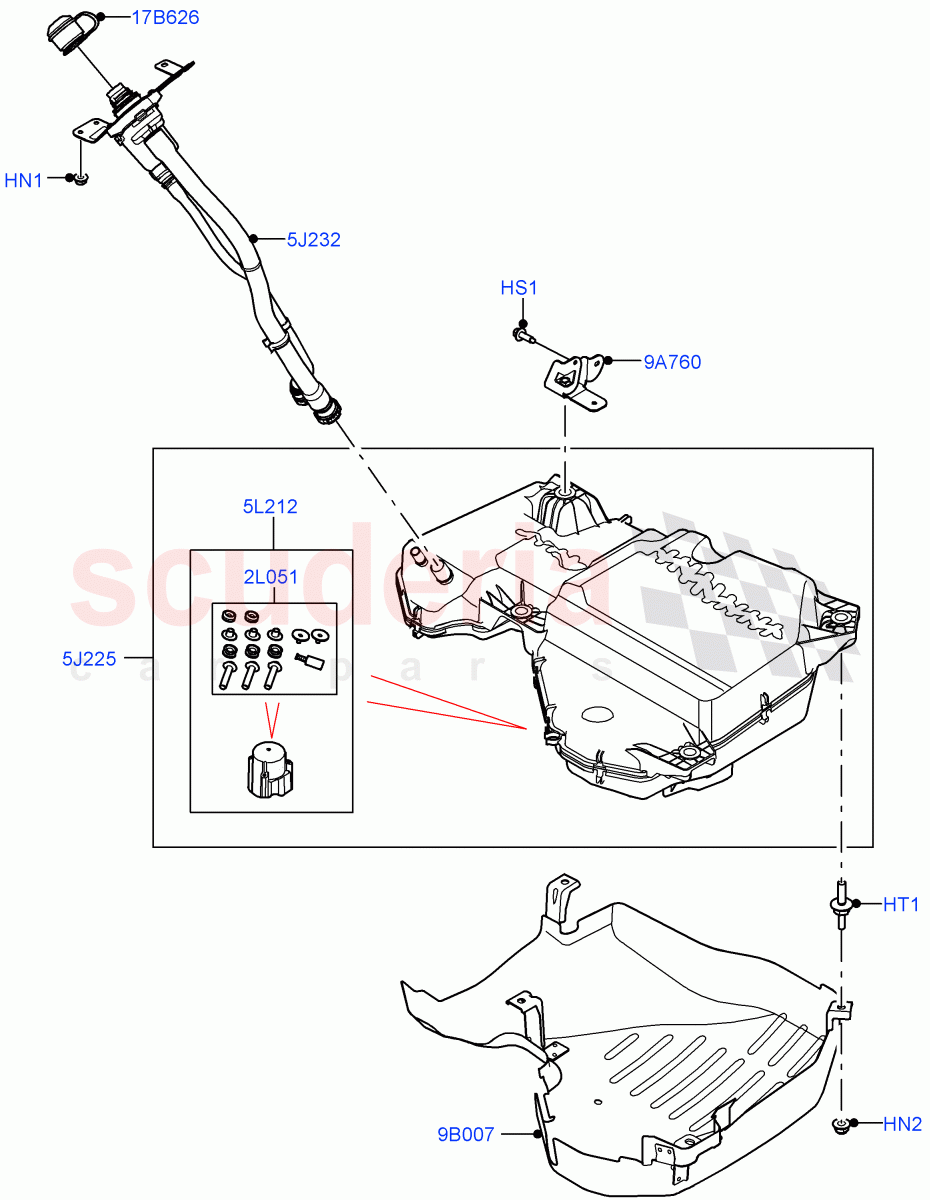

![Exhaust Fluid Injection System (Tank And Filler) (3.0L AJ20D6 Diesel High, With Diesel Exh Fluid Emission Tank) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]](/images/diagrams/landrover/HJWN7CLUE2G2QJM95WUJ.gif)
