Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Speakers (Less Armoured, Hi ICE Branded) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYH100110 NUT - FLANGED $0.65 To Order
Photo Part No Description Price (each) Stock
XYH000050 LOCKNUT $2.96 To Order
Photo Part No Description Price (each) Stock
EYP000190 SCREW $1.13 To Order
Photo Part No Description Price (each) Stock
XYP500190 SCREW $0.40 To Order
Photo Part No Description Price (each) Stock
FS106167 Screw $0.17 To Order
Photo Part No Description Price (each) Stock
XQM500390 SPEAKER $92.47 To Order
Photo Part No Description Price (each) Stock
XQM500430 SPEAKER $85.53 To Order
Photo Part No Description Price (each) Stock
XQM500360 SPEAKER $71.87 To Order
Photo Part No Description Price (each) Stock
XQA500090 PARA AUDIOFRECUENCIAS BAJAS $325.54 To Order
Photo Part No Description Price (each) Stock
LR018101 SPEAKER $38.25 To Order
LR018100 SPEAKER $17.90 To Order
Photo Part No Description Price (each) Stock
XQN500020 SPEAKER $30.42 To Order
View All

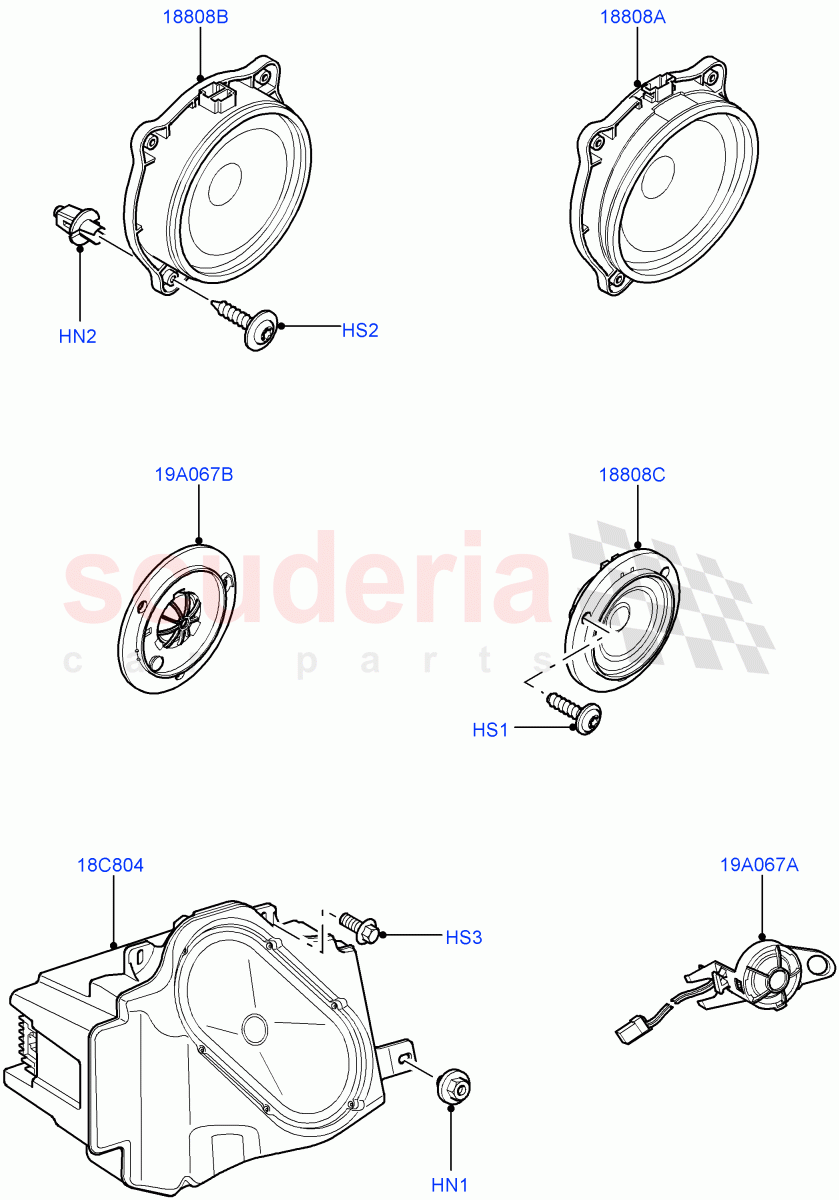

Speakers (Less Armoured, Hi ICE Branded) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 YYH100110
NUT - FLANGED
M6, Sub-Woofer / From: AA000001 		$0.65 -
HN2 XYH000050
LOCKNUT
For Front Door, Locking Type / From: AA000001 		$2.96 -
HS1 EYP000190
SCREW
4 x 14MM, Mid Range / From: AA000001 		$1.13 -
HS2 XYP500190
SCREW
5 X 22MM, Self Tapping, Torx / From: AA000001 		$0.40 -
HS3 FS106167
Screw
M6 X 16MM / From: AA000001 		$0.17 -
18C804 XQA500090
PARA AUDIOFRECUENCIAS BAJAS
From: AA000001 		$325.54 1
19A067A LR018101
SPEAKER
LH, Front, Tweeter / From: AA000001 		$38.25 1
19A067A LR018100
SPEAKER
RH, Front, Tweeter / From: AA000001 		$17.90 1
19A067B XQN500020
SPEAKER
Rear Door, Tweeter / From: AA000001 		$30.42 2
18808A XQM500390
SPEAKER
Low Range, Rear Door / From: AA000001 		$92.47 2
18808B XQM500430
SPEAKER
Front Door, Low Range / From: AA000001 		$85.53 2
18808C XQM500360
SPEAKER
Front Door, Mid Range / From: AA000001 		$71.87 2
