Name: Battery Cables And Horn (Horn) ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

Battery Cables And Horn (Horn) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Battery Cables And Horn (Horn) ((V) FROMAA000001)

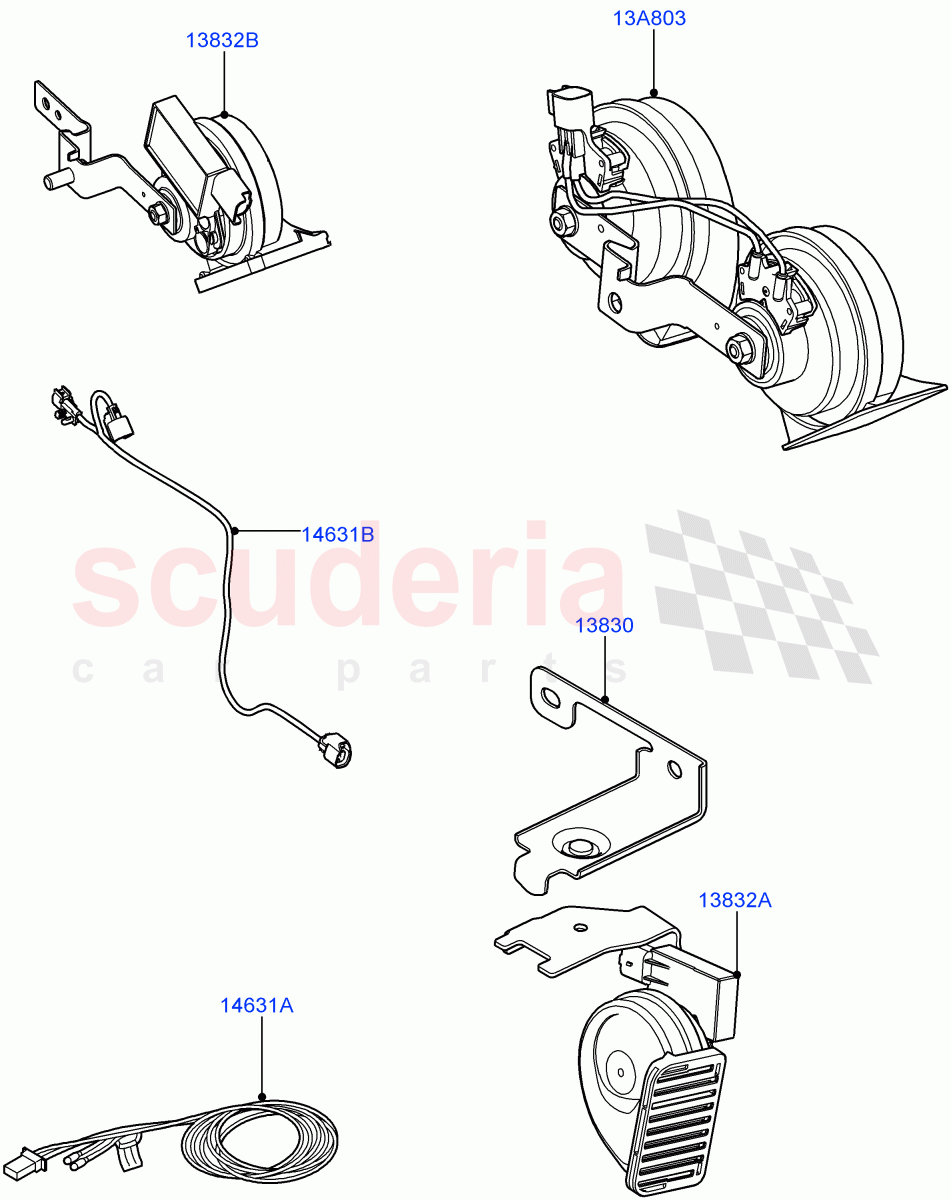

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025241	BRACKET	$13.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025237	HORN	$95.32	To Order
	LR025238	HORN	$102.36	To Order
	LR034093	HORN	$97.02	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025239	HORN - LOW PITCH	$30.40	To Order
	LR025240	HORN - LOW PITCH	$119.66	To Order
	LR032050	HORN - LOW PITCH	$67.44	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010778	HORN	$160.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024771	WIRE	$43.93	To Order
	LR024770	WIRE	$52.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024772	WIRE	$45.41	To Order
	LR024773	WIRE	$25.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
13A803	LR010778	HORN	LR010778 HORN From: AA000001 / To: AA333274	$160.45	1
13830	LR025241	BRACKET	LR025241 BRACKET Horn / From: AA333275	$13.28	1
13832A	LR025237	HORN	LR025237 HORN Dual Note Electric Horn / From: AA333275	$95.32	1
13832A	LR025238	HORN	LR025238 HORN Dual Note Electric Horn - Level 2 / From: AA333275 / To: BA999999	$102.36	1
13832A	LR034093	HORN	LR034093 HORN Dual Note Electric Horn - Level 2 / From: CA000001 / To: CA361922	$97.02	1
13832A	LR047632	HORN - HIGH PITCH	LR047632 HORN - HIGH PITCH Dual Note Electric Horn - Level 2 / From: CA361923 / To: CA366923	$50.35	1
13832A	LR065129	HORN - HIGH PITCH	LR065129 HORN - HIGH PITCH Dual Note Electric Horn - Level 2 / From: CA366924	$50.95	1
13832B	LR025239	HORN - LOW PITCH	LR025239 HORN - LOW PITCH Dual Note Electric Horn / From: AA333275 / To: BA353657	$30.40	1
13832B	LR025240	HORN - LOW PITCH	LR025240 HORN - LOW PITCH Dual Note Electric Horn - Level 2 / From: AA333275 / To: BA353657	$119.66	1
13832B	LR032050	HORN - LOW PITCH	LR032050 HORN - LOW PITCH Dual Note Electric Horn / From: BA353658	$67.44	1
13832B	LR032051	HORN - LOW PITCH	LR032051 HORN - LOW PITCH Dual Note Electric Horn - Level 2 / From: BA353658 / To: BA999999	$119.66	1
13832B	LR047631	HORN - LOW PITCH	LR047631 HORN - LOW PITCH Dual Note Electric Horn - Level 2 / From: CA361923 / To: CA380334	$75.50	1
13832B	LR034092	HORN - LOW PITCH	LR034092 HORN - LOW PITCH Dual Note Electric Horn - Level 2 / From: CA000001 / To: CA361923	$96.68	1
13832B	LR072173	HORN - LOW PITCH	LR072173 HORN - LOW PITCH Dual Note Electric Horn - Level 2 / From: CA380335	$67.27	1
14631A	LR024771	WIRE	LR024771 WIRE Horn, Links Connectors C1709, C0004, Please Refer To Electrical Library In TOPIx, Repair Kit / From: AA333275	$43.93	1
14631A	LR024770	WIRE	LR024770 WIRE Horn, Links Connectors C0420, C0004, C1516, Please Refer To Electrical Library In TOPIx, Repair Kit / From: AA333275	$52.84	1
14631B	LR024772	WIRE	LR024772 WIRE Dual Note Electric Horn - Level 2 / Horn / From: AA333275	$45.41	1
14631B	LR024773	WIRE	LR024773 WIRE Dual Note Electric Horn / Horn / From: AA333275	$25.66	1

Battery Cables And Horn (Horn) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Battery Cables And Horn (Horn) ((V) FROMAA000001)
