Thermostat/Housing & Related Parts (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011158 CLIP - HOSE $3.19 To Order
Photo Part No Description Price (each) Stock
LR011038 PLUG - BLANKING $5.13 To Order
Photo Part No Description Price (each) Stock
LR048472 O-RING $6.51 IN STOCK
Photo Part No Description Price (each) Stock
LR010800 O-RING $6.64 IN STOCK
Photo Part No Description Price (each) Stock
LR011270 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR011272 SCREW $1.39 To Order
Photo Part No Description Price (each) Stock
LR018274 TUBE - WATER INLET $125.98 To Order
LR036661 TUBE - WATER INLET $30.99 To Order
LR090630 TUBE - WATER INLET $56.09 IN STOCK
Photo Part No Description Price (each) Stock
LR010739 CONNECTION - WATER OUTLET $10.96 To Order
LR092992 TUBE - WATER OUTLET $56.20 To Order
Photo Part No Description Price (each) Stock
LR034109 CLAMP - HOSE $8.50 To Order
Photo Part No Description Price (each) Stock
LR010794 TUBE $20.13 To Order
LR033994 TUBE - WATER OUTLET $22.87 IN STOCK
Photo Part No Description Price (each) Stock
LR011856 TUBE - THERMOSTAT $20.01 To Order
Photo Part No Description Price (each) Stock
LR048474 Tube $50.39 To Order
LR049990 TUBE - THERMOSTAT $55.57 To Order
Photo Part No Description Price (each) Stock
LR010733 TUBE - WATER OUTLET $73.81 To Order
LR036664 TUBE - WATER OUTLET $68.40 To Order
LR018961 TUBE - WATER OUTLET $88.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010799 THERMOSTAT AND HOUSING $69.10 To Order
LR032135 THERMOSTAT AND HOUSING $104.44 IN STOCK
LR032135 THERMOSTAT AND HOUSING $104.44 IN STOCK
Photo Part No Description Price (each) Stock
LR012780 SHIELD $103.04 To Order
LR051007 SHIELD - PROTECTION $101.57 To Order
Photo Part No Description Price (each) Stock
LR045239 HOSE - THROTTLE BODY HEATER OUTLET $51.03 To Order
Photo Part No Description Price (each) Stock
LR045239 HOSE - THROTTLE BODY HEATER OUTLET $51.03 To Order
View All

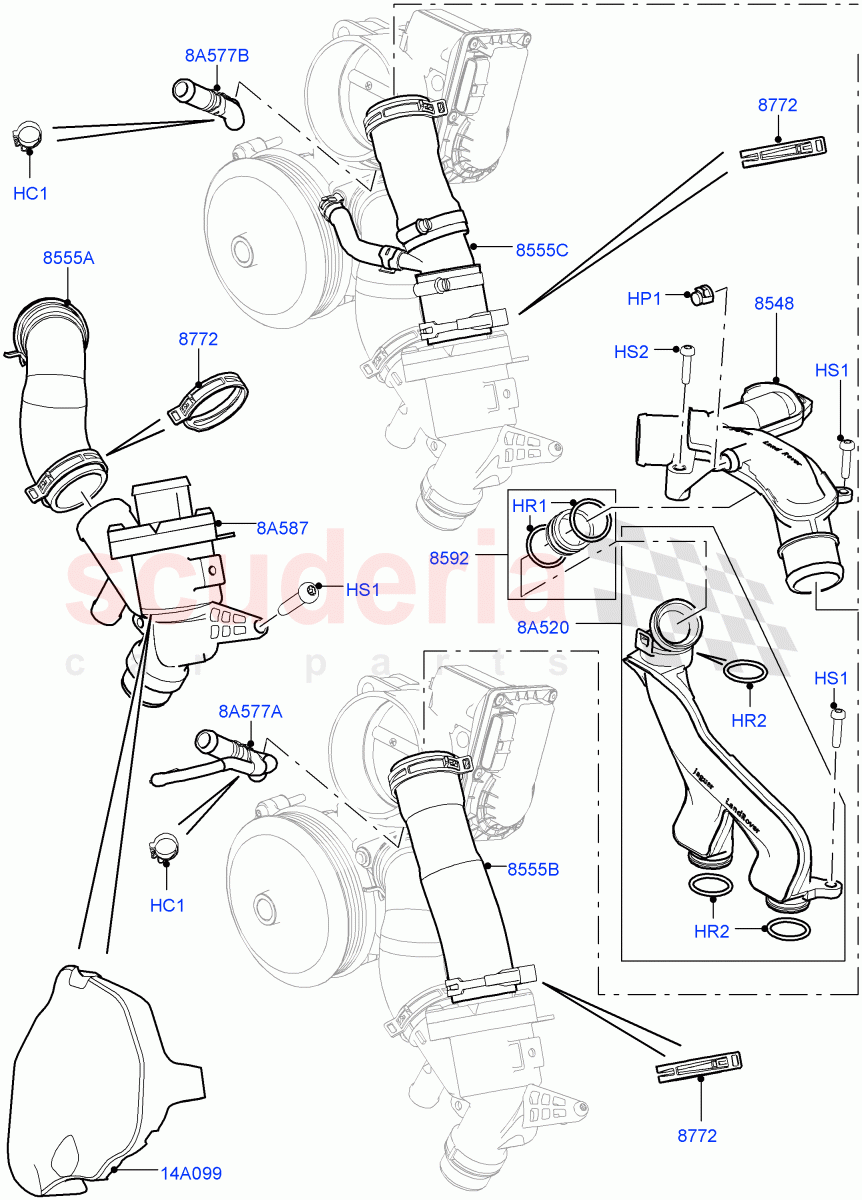

Thermostat/Housing & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR011158
CLIP - HOSE
13-14 X 8, Hose - Throttle Body Heater / From: AA000001 		$3.19 1
HP1 LR011038
PLUG - BLANKING
Blanking, Cooling System Bleed / From: AA000001 		$5.13 1
HR1 LR048472
O-RING
IN STOCK 		$6.51 3
HR2 LR010800
O-RING
Ring - Sealing - Tube Water Outlet From Cylinder Block / From: AA000001
IN STOCK 		$6.64 2
HS1 LR011270
SCREW
M6 x 25MM, Torx / From: AA000001 		$1.24 5
HS2 LR011272
SCREW
M6 X 40MM, Torx / From: AA000001 		$1.39 1
8A520 LR010733
TUBE - WATER OUTLET
Includes O-Ring, Tube Water Outlet To Cylinder Block / From: AA000001 / To: BA999999 		$73.81 1
8A520 LR036664
TUBE - WATER OUTLET
Includes O-Ring, Tube Water Outlet To Cylinder Block / From: CA382809 / To: CA389999 		$68.40 1
8A520 LR018961
TUBE - WATER OUTLET
Includes O-Ring, Tube Water Outlet To Cylinder Block / From: CA000001 / To: CA382808 		$88.78 1
8A520 LR092992
TUBE - WATER OUTLET
Includes O-Ring, Tube Water Outlet To Cylinder Block / From: CA390001 		$56.20 1
8A577A LR045239
HOSE - THROTTLE BODY HEATER OUTLET
Hose - Throttle Body Heater, Outlet / From: AA000001 / To: CA300000 		$51.03 1
8A577B LR045239
HOSE - THROTTLE BODY HEATER OUTLET
Hose - Throttle Body Heater, Outlet / From: CA300001 		$51.03 1
8A587 LR010799
THERMOSTAT AND HOUSING
Thermostat And Housing Assy / From: AA000001 / To: AA315503 		$69.10 1
8A587 LR032135
THERMOSTAT AND HOUSING
Thermostat And Housing Assy / From: AA315504 / To: CA374367
IN STOCK 		$104.44 1
8A587 LR032135
THERMOSTAT AND HOUSING
Thermostat And Housing Assy / From: CA374368
IN STOCK 		$104.44 1
14A099 LR012780
SHIELD
Engine Air Deflector / From: AA000001 / To: CA300000 		$103.04 1
14A099 LR051007
SHIELD - PROTECTION
Engine Air Deflector / From: CA300001 		$101.57 1
8548 LR018274
TUBE - WATER INLET
Upper / From: AA000001 / To: BA999999 		$125.98 1
8548 LR036661
TUBE - WATER INLET
Upper / From: CA000001 / To: CA385648 		$30.99 1
8548 LR090630
TUBE - WATER INLET
Upper / From: CA385649
IN STOCK 		$56.09 1
8555A LR010794
TUBE
From Water Pump To Thermostat, With Clamps / From: AA000001 / To: CA374367 		$20.13 1
8555A LR033994
TUBE - WATER OUTLET
From Water Pump To Thermostat, With Clamps / From: CA374368
IN STOCK 		$22.87 1
8555B LR011856
TUBE - THERMOSTAT
Thermostat To Engine, With Clamps / From: AA000001 / To: CA300000 		$20.01 1
8555C LR048474
Tube
Thermostat To Engine, With Clamps / From: CA300001 / To: CA390000 		$50.39 1
8555C LR049990
TUBE - THERMOSTAT
Thermostat To Engine, With Clamps / From: CA390001 		$55.57 1
8592 LR010739
CONNECTION - WATER OUTLET
Includes O-Ring / From: AA000001 / To: CA393564 		$10.96 1
8592 LR092992
TUBE - WATER OUTLET
Includes "O" Ring / From: CA393565 		$56.20 1
8772 LR034109
CLAMP - HOSE
49MM / From: AA000001 		$8.50 2
