Cooling System Pipes And Hoses (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR017360 CLIP $3.05 To Order
Photo Part No Description Price (each) Stock
LR012615 HOSE - RADIATOR $203.04 To Order
LR011482 HOSE - RADIATOR $186.23 To Order
LR012615 HOSE - RADIATOR $203.04 To Order
Photo Part No Description Price (each) Stock
LR011480 HOSE $117.05 To Order
Photo Part No Description Price (each) Stock
LR017364 HOSE $33.75 To Order
Photo Part No Description Price (each) Stock
LR017361 HOSE - OVERFLOW $52.45 To Order
Photo Part No Description Price (each) Stock
LR011462 HOSE $55.99 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.87 To Order
Photo Part No Description Price (each) Stock
LR017358 HOSE - TURBOCHARGER TO INTERCOOLER $124.03 To Order
Photo Part No Description Price (each) Stock
LR010891 HOSE - HEATER WATER $27.14 To Order
Photo Part No Description Price (each) Stock
LR017363 HOSE - WATER $64.84 To Order
LR031523 HOSE - WATER $47.67 To Order
LR017363 HOSE - WATER $64.84 To Order
Photo Part No Description Price (each) Stock
LR017362 HOSE - RADIATOR $30.13 To Order
LR017362 HOSE - RADIATOR $30.13 To Order
Photo Part No Description Price (each) Stock
LR017359 HOSE - WATER $76.33 To Order
View All

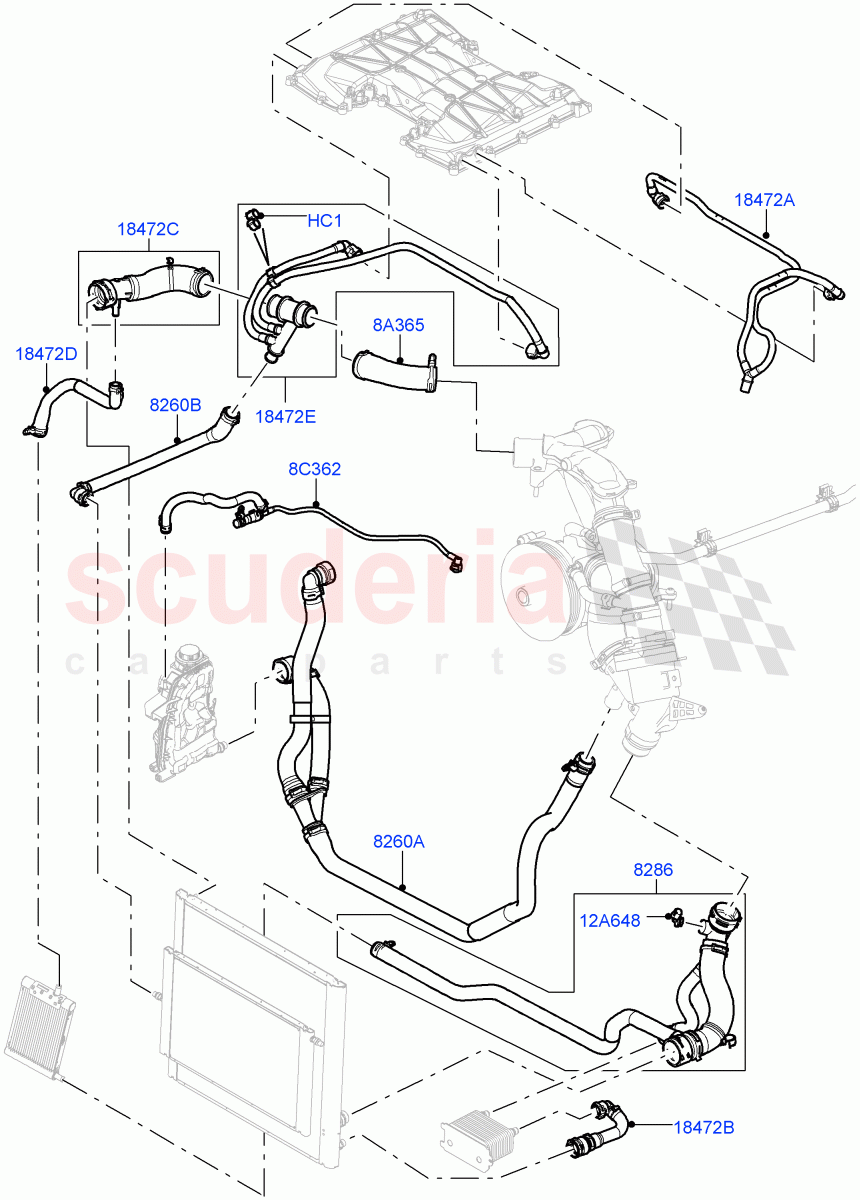

Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR017360
CLIP
Double / From: AA000001 		$3.05 1
8A365 LR017361
HOSE - OVERFLOW
To Cylinder Head, Upper / From: AA000001 		$52.45 1
8C362 LR011462
HOSE
Expansion Reservoir Overflow / From: AA000001 		$55.99 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 		$59.87 1
8260A LR011480
HOSE
Bottom, Expansion Reservoir To Thermostat, From Heater Outlet To Thermostat / From: AA000001 		$117.05 1
8260B LR017364
HOSE
Radiator Hose / From: AA000001 		$33.75 1
8286 LR012615
HOSE - RADIATOR
Bottom, Radiator To Thermostat, With Sensor / From: AA000001 / To: BA345199 		$203.04 1
8286 LR011482
HOSE - RADIATOR
(-)"GCC" / Bottom, Radiator To Thermostat, With Sensor / From: BA345200 		$186.23 1
8286 LR012615
HOSE - RADIATOR
(+)"GCC" / Bottom, Radiator To Thermostat, With Sensor / From: BA345200 		$203.04 1
18472A LR017358
HOSE - TURBOCHARGER TO INTERCOOLER
Intercooler, Supply From Pump / From: AA000001 		$124.03 1
18472B LR010891
HOSE - HEATER WATER
Radiator To Cooler / From: AA000001 		$27.14 1
18472C LR017363
HOSE - WATER
Engine To Radiator, Upper / From: AA000001 / To: BA345199 		$64.84 1
18472C LR031523
HOSE - WATER
(-)"GCC" / Engine To Radiator, Upper / From: BA345200 		$47.67 1
18472C LR017363
HOSE - WATER
(+)"GCC" / Engine To Radiator, Upper / From: BA345200 		$64.84 1
18472D LR017362
HOSE - RADIATOR
Auxiliary cooler, Upper / From: AA000001 / To: BA345199 		$30.13 1
18472D LR017362
HOSE - RADIATOR
(+)"GCC" / Auxiliary cooler, Upper / From: BA345200 		$30.13 1
18472E LR017359
HOSE - WATER
Intercooler / From: AA000001 		$76.33 1
