Front Seat Base ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Front Seat Base ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HYP500270 BOLT $6.37 To Order
Photo Part No Description Price (each) Stock
HYP500320 SCREW $1.22 IN STOCK
Photo Part No Description Price (each) Stock
HYP500180 SCREW $4.15 To Order
Photo Part No Description Price (each) Stock
LR014529 FRAME - SEAT $1,165.69 To Order
LR014530 FRAME - SEAT $1,262.76 To Order
LR014542 FRAME - SEAT $1,242.29 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HAT500010 BRACKET $20.62 To Order
LR019278 BRACKET - STOWAGE MOUNTING $21.65 To Order
Photo Part No Description Price (each) Stock
HJX500200LNQ COVER $7.98 To Order
HJX500210LNQ COVER $7.98 To Order
LR027176 COVER - FRONT SEAT TRACK SUPPORT $16.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HGD500020 SUPPORT - FRONT SEAT CUSHION $56.03 To Order
Photo Part No Description Price (each) Stock
LR014533 MOTOR - SEAT ADJUSTER $535.14 To Order
LR014532 MOTOR - SEAT ADJUSTER $535.14 To Order
Photo Part No Description Price (each) Stock
HHL500240 MOTOR - SEAT ADJUSTER $391.95 To Order
HHL500250 MOTOR - SEAT ADJUSTER $390.03 To Order
HHL500300 MOTOR - SEAT ADJUSTER $134.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HHL500260 MOTOR - SEAT ADJUSTER $399.89 To Order
HHL500270 MOTOR - SEAT ADJUSTER $399.89 To Order
HHL500320 MOTOR - SEAT ADJUSTER $312.84 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016960 MOTOR - SEAT ADJUSTER $380.88 To Order
LR016961 MOTOR - SEAT ADJUSTER $399.89 To Order
LR028225 MOTOR - SEAT ADJUSTER $388.83 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HAK500140 SEAT - FILTER ELEMENT $37.23 To Order
View All

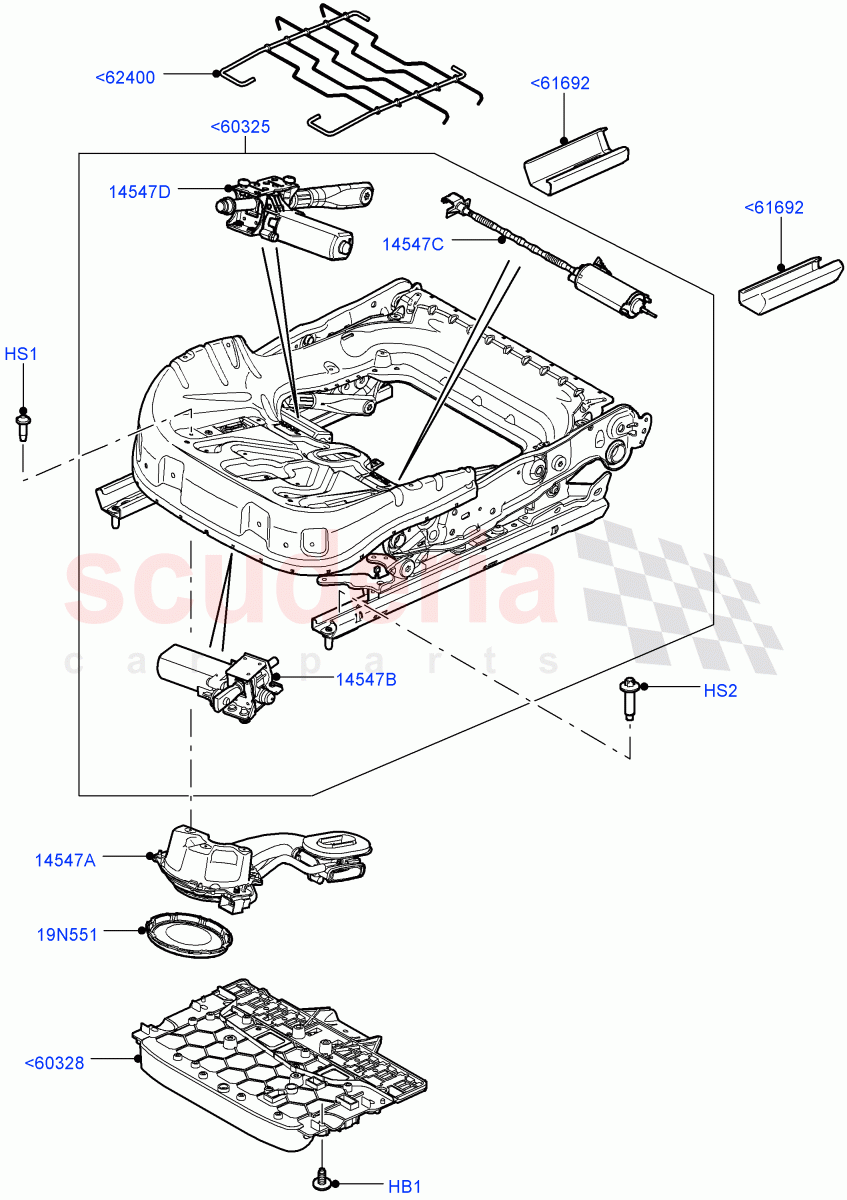

Front Seat Base ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<60325 LR014529
FRAME - SEAT
LHD, With Driver 8 Way Pwr.Seat Adjuster / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,165.69 1
<60325 LR014530
FRAME - SEAT
LHD, With Driver 10 Way Pwr Seat Adjust / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,262.76 1
<60325 LR014542
FRAME - SEAT
RHD, With Driver 8 Way Pwr.Seat Adjuster / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,242.29 1
<60325 LR014543
FRAME - SEAT
RHD, With Driver 10 Way Pwr Seat Adjust / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,345.83 1
<60325 LR016749
FRAME - SEAT
RHD, With Driver 10 Way Pwr Seat Adjust / Driver Frt Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,333.32 1
<60325 LR016750
FRAME - SEAT
LHD, With Driver 8 Way Pwr.Seat Adjuster / Driver Frt Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,449.35 1
<60325 LR017627
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, LHD / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,246.84 1
<60325 LR017628
FRAME AND SPRING - FRT SEAT CUSHION
Driver/Pass Elec Fr Seat Adj/Memory, RHD / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: BA359904 		$1,246.84 1
<60325 LR032926
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, LHD / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$1,059.43 1
<60325 LR032927
FRAME - SEAT
Electric Front Seat Adj Drv Memory, LHD, With Driver 8 Way Pwr.Seat Adjuster / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$1,471.58 1
<60325 LR032928
FRAME - SEAT
Electric Front Seat Adj Drv Memory, LHD, With Driver 10 Way Pwr Seat Adjust / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$1,532.81 1
<60325 LR032929
FRAME - SEAT
RHD, With Driver 8 Way Pwr.Seat Adjuster / Driver Frt Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$705.57 1
<60325 LR032931
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, RHD / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$1,233.89 1
<60325 LR032932
FRAME - SEAT
Electric Front Seat Adj Drv Memory, RHD, With Driver 8 Way Pwr.Seat Adjuster / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$1,153.55 1
<60325 LR032933
FRAME - SEAT
Electric Front Seat Adj Drv Memory, RHD, With Driver 10 Way Pwr Seat Adjust / For Passenger Front Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$1,213.33 1
<60325 LR032934
FRAME - SEAT
LHD, With Driver 8 Way Pwr.Seat Adjuster / Driver Frt Seat, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA359905 		$1,971.25 1
<60328 HAT500010
BRACKET
ECU / From: AA000001 / To: AA313068 		$20.62 2
<60328 LR019278
BRACKET - STOWAGE MOUNTING
ECU / From: AA313069 		$21.65 2
<61692 HJX500200LNQ
COVER
RH / From: AA000001 / To: BA342762 		$7.98 1
<61692 HJX500210LNQ
COVER
LH / From: AA000001 / To: BA342762 		$7.98 1
<61692 LR027176
COVER - FRONT SEAT TRACK SUPPORT
RH / From: BA342763 		$16.47 1
<61692 LR028216
COVER - FRONT SEAT TRACK SUPPORT
LH / From: BA342763 		$16.79 1
<62400 HGD500020
SUPPORT - FRONT SEAT CUSHION
Support / From: AA000001 		$56.03 1
HB1 HYP500270
BOLT
ECU, M6 x 25MM / From: AA000001 		$6.37 8
HS1 HYP500320
SCREW
M4 x 12MM / From: AA000001
IN STOCK 		$1.22 6
HS2 HYP500180
SCREW
Frame To Body, M10 x 40MM / From: AA000001 		$4.15 8
19N551 HAK500140
SEAT - FILTER ELEMENT
With Heated/Cooled Front Seats Only / From: AA000001 		$37.23 2
14547A LR014533
MOTOR - SEAT ADJUSTER
Heated/Cooled Front/Rear Seat / RH / From: AA000001 		$535.14 1
14547A LR014532
MOTOR - SEAT ADJUSTER
Heated/Cooled Front/Rear Seat / LH / From: AA000001 		$535.14 1
14547B HHL500240
MOTOR - SEAT ADJUSTER
RHD / RH, Driver Frt Seat, Tilt Motor, With Fixing Parts / From: AA000001 		$391.95 1
14547B HHL500250
MOTOR - SEAT ADJUSTER
LHD / LH, Driver Frt Seat, Tilt Motor, With Fixing Parts, With Memory Seat / From: AA000001 		$390.03 1
14547B HHL500300
MOTOR - SEAT ADJUSTER
RHD / RH, For Passenger Front Seat, Less Memory Seat, Tilt Motor, With Fixing Parts / From: AA000001 		$134.39 1
14547B HHL500310
MOTOR - SEAT ADJUSTER
LHD / LH, For Passenger Front Seat, Tilt Motor, With Fixing Parts / From: AA000001 		$72.63 1
14547C HHL500260
MOTOR - SEAT ADJUSTER
RHD / RH, Driver Frt Seat, Seat Tracks, With Fixing Parts / From: AA000001 / To: BA999999 		$399.89 1
14547C HHL500270
MOTOR - SEAT ADJUSTER
LHD / LH, Driver Frt Seat, Seat Tracks, With Fixing Parts / From: AA000001 / To: BA999999 		$399.89 1
14547C HHL500320
MOTOR - SEAT ADJUSTER
LHD / RH, For Passenger Front Seat, Seat Tracks, With Fixing Parts / From: AA000001 		$312.84 1
14547C HHL500330
MOTOR - SEAT ADJUSTER
RHD / LH, For Passenger Front Seat, Seat Tracks, With Fixing Parts / From: AA000001 		$134.39 1
14547C LR028226
MOTOR - SEAT ADJUSTER
Driver Frt Seat, RH/RHD LH/LHD, Seat Tracks, With Fixing Parts / From: CA000001 		$379.35 2
14547D LR016960
MOTOR - SEAT ADJUSTER
RH, With Fixing Parts / From: AA000001 / To: BA999999 		$380.88 1
14547D LR016961
MOTOR - SEAT ADJUSTER
LH, With Fixing Parts / From: AA000001 / To: BA999999 		$399.89 1
14547D LR028225
MOTOR - SEAT ADJUSTER
RH, With Fixing Parts / From: CA000001 		$388.83 1
14547D LR028227
MOTOR - SEAT ADJUSTER
LH, With Fixing Parts / From: CA000001 		$381.52 1
