Front Seat Back ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Front Seat Back ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HYG500360 BOLT $2.28 To Order
Photo Part No Description Price (each) Stock
HYG500370 BOLT $1.76 To Order
Photo Part No Description Price (each) Stock
HZM500040 CLIP - TRIM $1.21 To Order
Photo Part No Description Price (each) Stock
HYP500320 SCREW $1.21 IN STOCK
Photo Part No Description Price (each) Stock
HFA501360 FRAME - SEAT $1,077.05 To Order
HFA501380 FRAME - SEAT $930.67 To Order
HFA501370 FRAME - SEAT $592.85 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HHC500150 SUPPORT - SEAT ADJUSTER $264.69 To Order
Photo Part No Description Price (each) Stock
HJJ500030 MOTOR - HEADREST $335.10 To Order
HJJ500040 MOTOR - HEADREST $323.50 To Order
Photo Part No Description Price (each) Stock
HHK500060 MOTOR - SEAT ADJUSTER $521.76 To Order
Photo Part No Description Price (each) Stock
HHL500220 MOTOR - SEAT ADJUSTER $455.29 To Order
HHL500190 MOTOR - SEAT ADJUSTER $515.54 To Order
Photo Part No Description Price (each) Stock
HAK500140 SEAT - FILTER ELEMENT $36.30 To Order
Photo Part No Description Price (each) Stock
LR010988 SLEEVE - GUIDE $30.28 To Order
HJQ500160JMN SLEEVE - HEADREST GUIDE $30.28 To Order
HJQ500160LER SLEEVE - HEADREST GUIDE $30.28 To Order
...and 13 more part variants. See table on right for more details.
View All

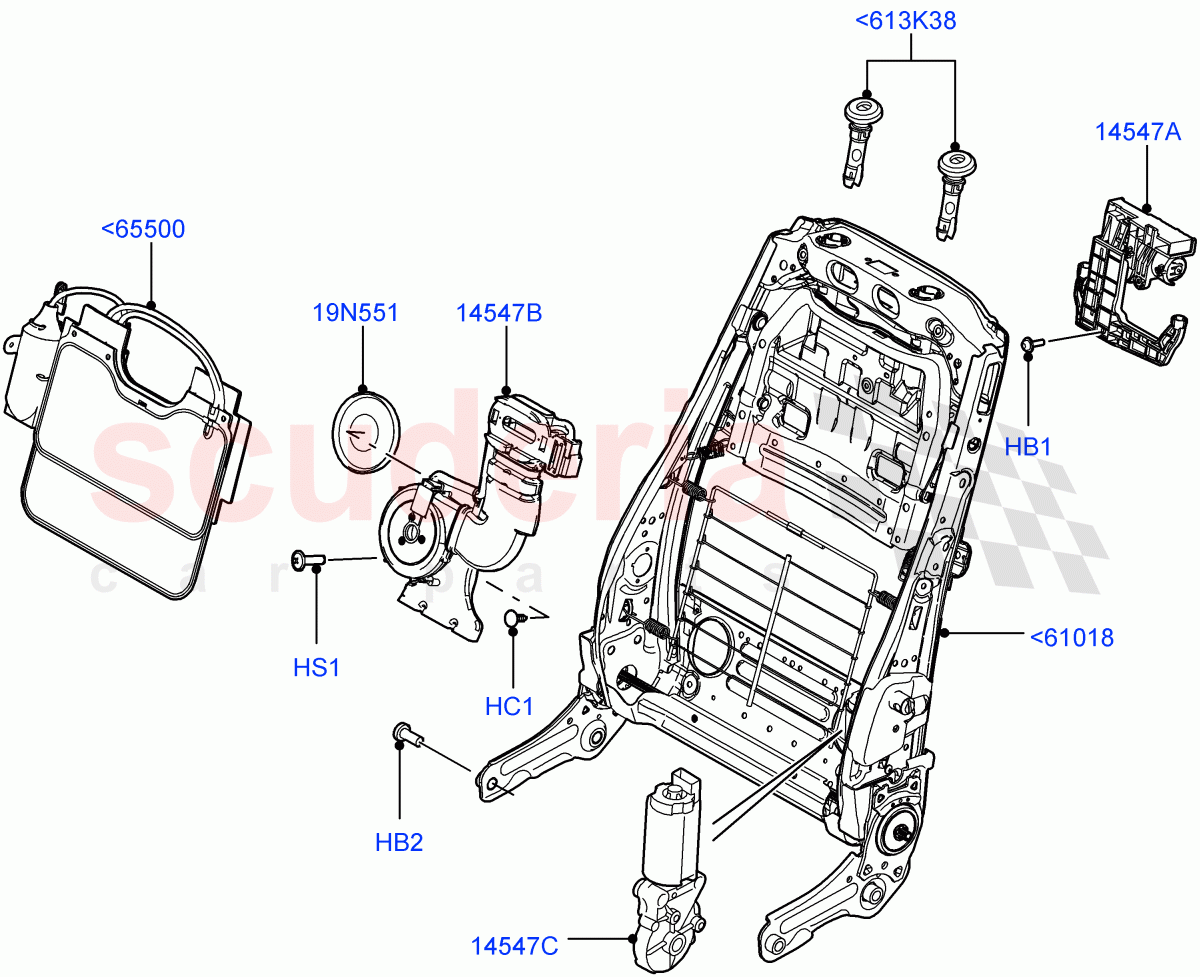

Front Seat Back ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<613K38 LR010988
SLEEVE - GUIDE
Arabica/Ivory, Semi Aniline Leather Perf / Locking / From: AA000001 / To: AA326570 		$30.28 4
<613K38 HJQ500160JMN
SLEEVE - HEADREST GUIDE
Navy/Parchment Interior, Oxford Leather Windsor / Locking / From: AA000001 / To: AA326570 		$30.28 4
<613K38 HJQ500160LER
SLEEVE - HEADREST GUIDE
Semi Aniline Leather Perf, Storm / Locking / From: AA000001 / To: AA326570 		$30.28 4
<613K38 HJQ500160NUG
SLEEVE - HEADREST GUIDE
Navy/Ivory, Oxford Leather Windsor / Locking / From: AA000001 		$30.28 4
<613K38 HJQ500160PUY
SLEEVE - HEADREST GUIDE
Standard Leather Blenheim / Locking / From: AA000001 		$30.28 2
<613K38 HJQ500160PUY
SLEEVE - HEADREST GUIDE
Ivory/Jet/Jet, Oxford Leather Windsor / Locking / From: AA000001 		$30.28 4
<613K38 HJQ500160SUN
SLEEVE - HEADREST GUIDE
Sand/Jet Interior, Semi Aniline Leather Perf / Locking / From: AA000001 / To: AA326570 		$30.28 4
<613K38 HJQ500160VAE
SLEEVE - HEADREST GUIDE
Navy/Parch/Parch, Semi Aniline Leather Perf / Locking / From: AA000001 		$39.55 4
<613K38 HJQ500170PUY
SLEEVE - HEADREST GUIDE
Standard Leather Blenheim / Non Locking / From: AA000001 		$12.25 2
<613K38 LR021933
SLEEVE - GUIDE
Jet/Ivory / Non Locking / From: AA313069 		$12.14 4
<613K38 LR021934
SLEEVE - GUIDE
Parchment/Dark Saddle / Non Locking / From: AA313069 		$12.14 4
<613K38 LR023927
SLEEVE - HEADREST GUIDE
Arabica/Ivory/Ivory, Semi Aniline Leather Perf / Non Locking / From: AA326571 		$13.25 4
<613K38 LR023928
SLEEVE - HEADREST GUIDE
Navy/Parch/Parch, Oxford Leather Windsor / Non Locking / From: AA326571 		$16.37 4
<613K38 LR023929
SLEEVE - HEADREST GUIDE
Standard Leather Blenheim, Storm/Jet/Jet / Non Locking / From: AA326571 		$13.25 4
<613K38 LR023930
SLEEVE - HEADREST GUIDE
Oxford Leather Windsor, Sand/Jet Interior / Non Locking / From: AA326571 		$13.25 4
<613K38 LR028674
SLEEVE - HEADREST GUIDE
Jet/Ivory Interior, Standard Leather Blenheim / Non Locking / From: AA326561 		$14.29 4
<61018 HFA501360
FRAME - SEAT
RH, For Passenger Front Seat / From: AA000001 		$1,077.05 1
<61018 HFA501380
FRAME - SEAT
RH, Driver Frt Seat / From: AA000001 		$930.67 1
<61018 HFA501370
FRAME - SEAT
LH, For Passenger Front Seat / From: AA000001 		$592.85 1
<61018 HFA501390
FRAME - SEAT
LH, Driver Frt Seat / From: AA000001 		$914.32 1
<65500 HHC500150
SUPPORT - SEAT ADJUSTER
From: AA000001 		$264.69 2
HB1 HYG500360
BOLT
M5 x 14MM, With Adjustable Headrest / From: AA000001 		$2.28 2
HB2 HYG500370
BOLT
M10 x 27MM / From: AA000001 		$1.76 8
HC1 HZM500040
CLIP - TRIM
Heated/Cooled Front/Rear Seat / Blower Motor / From: AA000001 		$1.21 2
HS1 HYP500320
SCREW
Heated/Cooled Front/Rear Seat / M4 x 12MM / From: AA000001
IN STOCK 		$1.21 1
19N551 HAK500140
SEAT - FILTER ELEMENT
With Heated/Cooled Front Seats Only / From: AA000001 		$36.30 2
14547A HJJ500030
MOTOR - HEADREST
Electric Front Seat Adj Drv Memory, With Driver 10 Way Pwr Seat Adjust / Headrest / From: AA000001 		$335.10 1
14547A HJJ500040
MOTOR - HEADREST
Electric Front Seat Adj Drv Memory, With Driver 10 Way Pwr Seat Adjust / Headrest / From: AA000001 		$323.50 1
14547B HHK500060
MOTOR - SEAT ADJUSTER
Heated/Cooled Front/Rear Seat / From: AA000001 		$521.76 2
14547C HHL500220
MOTOR - SEAT ADJUSTER
Motor - Seat Recline, With Fixing Parts, With Memory / From: AA000001 		$455.29 1
14547C HHL500190
MOTOR - SEAT ADJUSTER
Less Memory, Motor - Seat Recline, With Fixing Parts / From: AA000001 		$515.54 1
