Fuses, Holders And Circuit Breakers (Passenger / Luggage Compartment) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Fuses, Holders And Circuit Breakers (Passenger / Luggage Compartment) ((V) FROMAA000001)

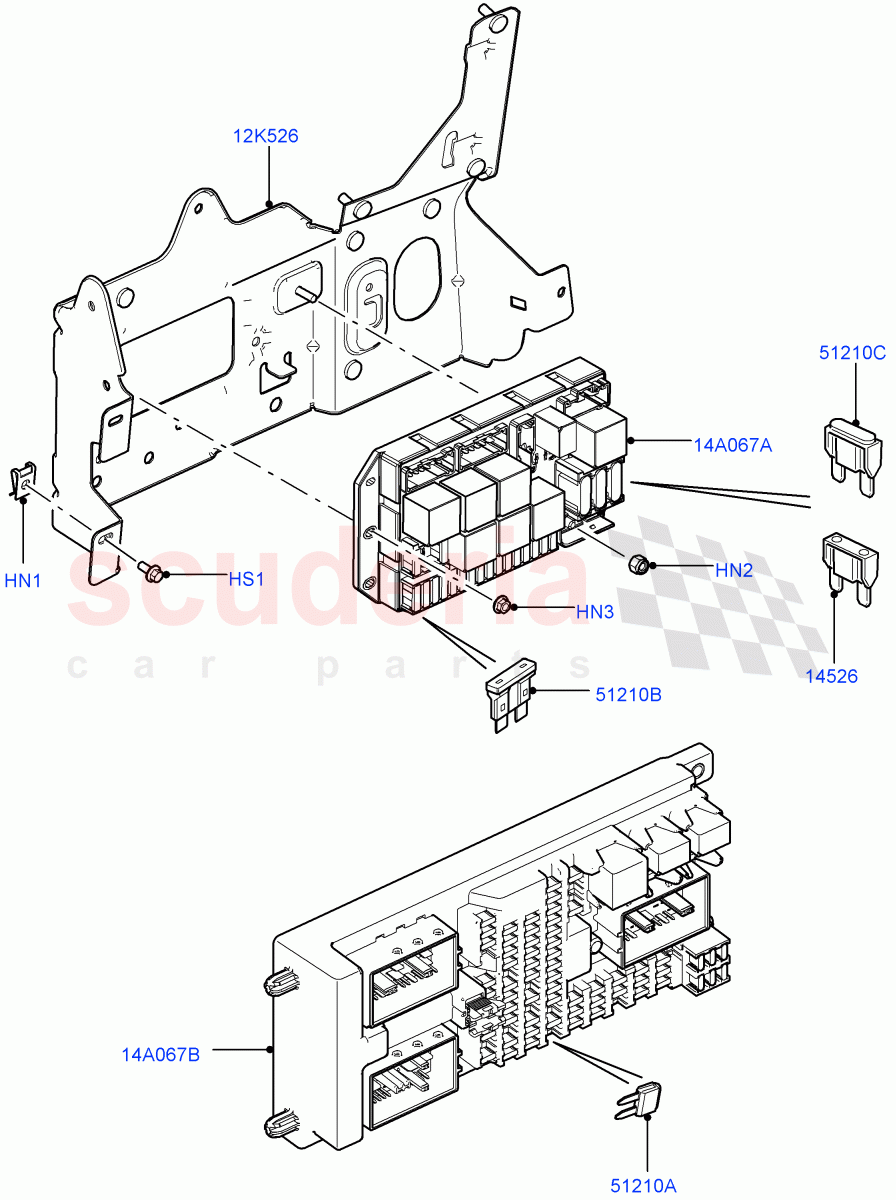

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYH500040	NUT - FLANGED	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000046	NUT - HEX.	$0.52	To Order
	RYH500440	NUT AND WASHER - HEX.	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS105126	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	YQG10011	Circuit Breaker	$4.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012892	BRACKET - CHILD SEAT MOUNTING	$58.91	To Order
	LR020153	BRACKET - CHILD SEAT MOUNTING	$58.91	To Order
	LR022571	BRACKET	$37.37	To Order

Photo	Part No	Description	Price (each)	Stock
	YQF100490	FUSE	$0.59	To Order
	YQF100510	FUSE	$0.61	To Order
	YQF100520	FUSE	$1.03	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ADU1874	Fuse	$0.01	To Order
	ADU1876	Fuse	$0.25	To Order
	ADU1877	Fuse	$0.25	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YQG10009	Fuse	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012680	PANEL - FUSE JUNCTION	$448.84	To Order
	LR021665	PANEL - FUSE JUNCTION	$448.84	To Order
	LR023357	PANEL - FUSE JUNCTION	$230.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017432	JUNCTION BOX	$836.06	To Order
	LR019219	JUNCTION BOX	$836.06	To Order
	LR019431	JUNCTION BOX	$784.13	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	XYH500040	NUT - FLANGED	XYH500040 NUT - FLANGED M5 / From: AA000001	$0.79	3
HN2	LR000046	NUT - HEX.	LR000046 NUT - HEX. Hexagonal Head, M6 / From: AA000001	$0.52	1
HN2	RYH500440	NUT AND WASHER - HEX.	RYH500440 NUT AND WASHER - HEX. M8 / From: AA000001	$3.23	1
HN3	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 / From: AA000001 IN STOCK	$0.52	2
HS1	FS105126	SCREW	FS105126 SCREW M5 X 12MM / From: AA000001	$0.59	3
12K526	LR012892	BRACKET - CHILD SEAT MOUNTING	LR012892 BRACKET - CHILD SEAT MOUNTING Luggage Compartment / From: AA000001 / To: AA309293	$58.91	1
12K526	LR020153	BRACKET - CHILD SEAT MOUNTING	LR020153 BRACKET - CHILD SEAT MOUNTING Luggage Compartment / From: AA309294 / To: BA334342	$58.91	1
12K526	LR022571	BRACKET	LR022571 BRACKET Luggage Compartment / From: BA334343	$37.37	1
14A067A	LR012680	PANEL - FUSE JUNCTION	LR012680 PANEL - FUSE JUNCTION Luggage Compartment / From: AA000001 / To: AA320864	$448.84	1
14A067A	LR021665	PANEL - FUSE JUNCTION	LR021665 PANEL - FUSE JUNCTION Luggage Compartment / From: AA320865 / To: BA334342	$448.84	1
14A067A	LR023357	PANEL - FUSE JUNCTION	LR023357 PANEL - FUSE JUNCTION Luggage Compartment / From: BA334343	$230.86	1
14A067B	LR017432	JUNCTION BOX	LR017432 JUNCTION BOX Passenger Compartment / From: AA000001 / To: AA309293	$836.06	1
14A067B	LR019219	JUNCTION BOX	LR019219 JUNCTION BOX Passenger Compartment / From: AA309294 / To: AA312478	$836.06	1
14A067B	LR019431	JUNCTION BOX	LR019431 JUNCTION BOX Passenger Compartment / From: AA312479 / To: AA312978	$784.13	1
14A067B	LR019454	JUNCTION BOX	LR019454 JUNCTION BOX Passenger Compartment / From: AA312979 / To: AA313500	$757.38	1
14A067B	LR020152	JUNCTION BOX	LR020152 JUNCTION BOX Passenger Compartment / From: AA313501 / To: AA324900	$823.67	1
14A067B	LR023491	JUNCTION BOX	LR023491 JUNCTION BOX Passenger Compartment / From: AA324901 / To: AA999999	$832.52	1
14A067B	LR023679	BOX - FUSE	LR023679 BOX - FUSE Passenger Compartment / From: BA000001	$1,047.45	1
14A067B	LR043259	JUNCTION BOX	LR043259 JUNCTION BOX Passenger Compartment / From: CA387841	$840.20	1
14526	YQG10011	Circuit Breaker	YQG10011 Circuit Breaker 60 AMP, Blade Type, Light Blue Maxifuse / From: AA000001	$4.16	-
51210A	YQF100490	FUSE	YQF100490 FUSE Mini 5 Amp, Tan Minifuse / From: AA000001 / To: AA999999	$0.59	-
51210A	YQF100510	FUSE	YQF100510 FUSE MINI 10 AMP, Red Minifuse / From: AA000001 / To: AA999999	$0.61	-
51210A	YQF100520	FUSE	YQF100520 FUSE Blue Minifuse, MINI 15 AMP / From: AA000001 / To: AA999999	$1.03	-
51210A	YQF100530	FUSE	YQF100530 FUSE 20 AMP, Yellow Minifuse / From: AA000001 / To: AA999999	$0.56	-
51210A	YQF100540	FUSE	YQF100540 FUSE 25 AMP, Natural Minifuse / From: AA000001 / To: AA999999	$0.59	-
51210A	YQF100550	FUSE	YQF100550 FUSE Green Minifuse, MINI 30 AMP / From: AA000001 / To: AA999999	$0.57	-
51210A	LR003737	FUSE	LR003737 FUSE 5 AMP, Tan Minifuse / From: BA000001	$0.99	1
51210A	LR003739	FUSE	LR003739 FUSE 10 AMP, Red Minifuse / From: BA000001	$0.99	1
51210A	LR003740	FUSE	LR003740 FUSE 15 AMP, Blue Minifuse / From: BA000001	$0.51	1
51210A	LR003741	FUSE	LR003741 FUSE 20 AMP, Yellow Minifuse / From: BA000001	$0.56	1
51210A	LR003742	FUSE	LR003742 FUSE 25 AMP, Natural Minifuse / From: BA000001	$4.96	1
51210A	LR003743	FUSE	LR003743 FUSE 30 AMP, Green Minifuse / From: BA000001	$4.96	1
51210B	ADU1874	Fuse	ADU1874 Fuse 5 AMP, Blade Type, Tan / From: AA000001	$0.01	-
51210B	ADU1876	Fuse	ADU1876 Fuse 10 AMP, Blade Type, Red / From: AA000001	$0.25	-
51210B	ADU1877	Fuse	ADU1877 Fuse 15 AMP, Blade Type, Light Blue / From: AA000001	$0.25	-
51210B	ADU1878	Fuse	ADU1878 Fuse 20 AMP, Blade Type, Yellow / From: AA000001	$0.25	-
51210B	ADU1880	Fuse	ADU1880 Fuse 30 AMP, Blade Type, Light Green / From: AA000001 / To: AA999999	$1.69	-
51210B	YQF100170L	FUSE	YQF100170L FUSE 40 AMP, Blade Type / From: AA000001	$13.57	-
51210B	LR003734	FUSE	LR003734 FUSE 30 AMP, Blade Type, Light Green / From: BA000001	$0.56	1
51210C	YQG10009	Fuse	YQG10009 Fuse Blade Type, MAXI 40 AMP / From: AA000001	$3.68	-
