Name: Electrical Wiring - Engine And Dash (Engine Compartment) ((V) FROMAA000001)
Rating: 4.5 (1 reviews)

Electrical Wiring - Engine And Dash (Engine Compartment) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (Engine Compartment) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR032839	WIRING - FRONT DAMPER	$63.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030017	WIRING - AIR SUSPENSION	$14.86	To Order
	LR030018	WIRING - AIR SUSPENSION	$19.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021840	WIRE	$4,001.95	To Order
	LR021841	WIRE	$4,097.40	To Order
	LR021843	WIRE	$2,166.03	To Order

...and 27 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012362	WIRING	$1,142.13	To Order
	LR012364	WIRING	$1,233.50	To Order
	LR021858	WIRING	$1,898.68	To Order

...and 21 more part variants. See table on right for more details.

View All

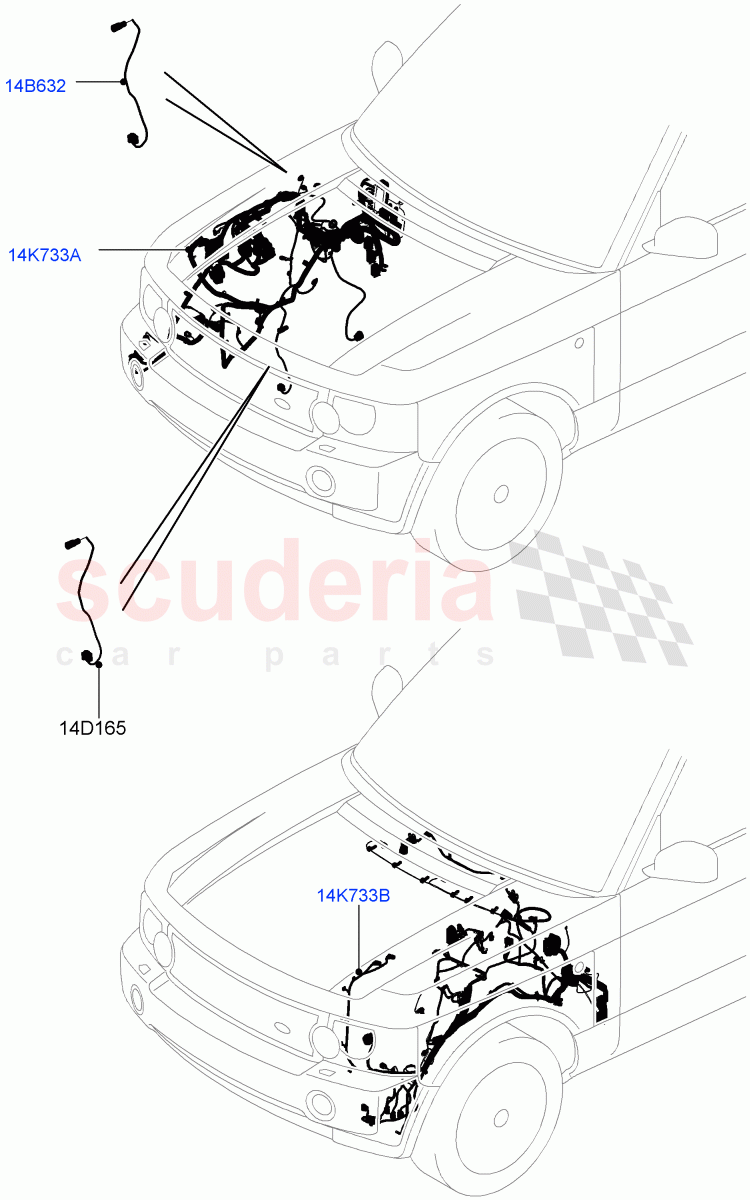

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
14B632	LR032839	WIRING - FRONT DAMPER	LR032839 WIRING - FRONT DAMPER Adaptive Damper, Service Fix / From: AA302697	$63.83	2
14D165	LR030017	WIRING - AIR SUSPENSION	LR030017 WIRING - AIR SUSPENSION Less Adaptive Damping / Front / Rear, Height Sensor Lead, Service Fix / From: AA000001	$14.86	-
14D165	LR030018	WIRING - AIR SUSPENSION	LR030018 WIRING - AIR SUSPENSION With Continuous Variable Damping / Front / Rear, Height Sensor Lead, Service Fix / From: AA000001	$19.34	-
14K733A	LR021840	WIRE	LR021840 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, LHD, Less Adaptive Damping, Rear View Camera-Fixed / RH / From: AA000001	$4,001.95	1
14K733A	LR021841	WIRE	LR021841 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, LHD, Rear View Camera-Fixed, With Continuous Variable Damping / RH / From: AA000001	$4,097.40	1
14K733A	LR021843	WIRE	LR021843 WIRE 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Adaptive Damping, Rear View Camera-Fixed / RH / From: AA000001 / To: AA999999	$2,166.03	1
14K733A	LR021845	WIRE	LR021845 WIRE 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Rear View Camera-Fixed, With Continuous Variable Damping / RH / From: AA000001 / To: AA999999	$3,667.94	1
14K733A	LR021846	WIRE	LR021846 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, LHD, Less Adaptive Damping, Surround Camera System / RH / From: AA000001	$3,026.62	1
14K733A	LR021847	WIRE	LR021847 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, LHD, Surround Camera System, With Continuous Variable Damping / RH / From: AA000001	$4,891.42	1
14K733A	LR021848	Wire	LR021848 Wire 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Adaptive Damping, Surround Camera System / RH / From: AA000001 / To: AA999999	$1,020.99	1
14K733A	LR021849	WIRE	LR021849 WIRE 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Surround Camera System, With Continuous Variable Damping / RH / From: AA000001 / To: AA999999	$3,191.23	1
14K733A	LR021850	WIRE	LR021850 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, RHD, Rear View Camera-Fixed, With Continuous Variable Damping / RH / From: AA000001	$4,150.55	1
14K733A	LR021851	Wire	LR021851 Wire 3.6L V8 32V DOHC EFi Diesel Lion, Less Adaptive Damping, RHD, Rear View Camera-Fixed / RH / From: AA000001	$1,020.99	1
14K733A	LR021852	WIRE	LR021852 WIRE 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Rear View Camera-Fixed, With Continuous Variable Damping / RH / From: AA000001 / To: AA999999	$3,156.95	1
14K733A	LR021853	Wire	LR021853 Wire 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Adaptive Damping, RHD, Rear View Camera-Fixed / RH / From: AA000001 / To: AA999999	$849.41	1
14K733A	LR021854	WIRE	LR021854 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, RHD, Surround Camera System, With Continuous Variable Damping / RH / From: AA000001	$4,948.07	1
14K733A	LR021855	Wire	LR021855 Wire 3.6L V8 32V DOHC EFi Diesel Lion, Less Adaptive Damping, RHD, Surround Camera System / RH / From: AA000001	$1,250.43	1
14K733A	LR021856	WIRE	LR021856 WIRE 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Surround Camera System, With Continuous Variable Damping / RH / From: AA000001 / To: AA999999	$2,540.56	1
14K733A	LR021857	Wire	LR021857 Wire 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Adaptive Damping, RHD, Surround Camera System / RH / From: AA000001 / To: AA999999	$1,020.99	1
14K733A	LR022708	WIRE	LR022708 WIRE 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Surround Camera System, With Continuous Variable Damping / RH / From: BA000001 / To: BA353657	$2,015.06	1
14K733A	LR022714	WIRE	LR022714 WIRE 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Surround Camera System, With Continuous Variable Damping / RH / From: BA000001 / To: BA353657	$1,799.25	1
14K733A	LR031007	WIRING - ENGINE COMPARTMENT	LR031007 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, LHD, Rear View Camera-Fixed / RH / From: BA000001	$1,958.64	1
14K733A	LR031008	WIRING - ENGINE COMPARTMENT	LR031008 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Adaptive Damping, Rear View Camera-Fixed / RH / From: BA000001	$1,572.11	1
14K733A	LR031009	WIRING - ENGINE COMPARTMENT	LR031009 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Rear View Camera-Fixed, With Continuous Variable Damping / RH / From: BA000001	$1,527.92	1
14K733A	LR031010	WIRING - ENGINE COMPARTMENT	LR031010 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, LHD, Surround Camera System / RH / From: BA000001	$2,060.10	1
14K733A	LR031011	WIRING - ENGINE COMPARTMENT	LR031011 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Adaptive Damping, Surround Camera System / RH / From: BA000001	$1,885.67	1
14K733A	LR031012	WIRING - ENGINE COMPARTMENT	LR031012 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Surround Camera System, With Continuous Variable Damping / RH / From: BA353658	$2,053.43	1
14K733A	LR031013	WIRING - ENGINE COMPARTMENT	LR031013 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, RHD, Rear View Camera-Fixed / RH / From: BA000001	$1,350.68	1
14K733A	LR031014	WIRING - ENGINE COMPARTMENT	LR031014 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Rear View Camera-Fixed, With Continuous Variable Damping / RH / From: BA000001	$1,248.63	1
14K733A	LR031015	WIRING - ENGINE COMPARTMENT	LR031015 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Adaptive Damping, RHD, Rear View Camera-Fixed / RH / From: BA000001	$1,201.03	1
14K733A	LR031016	WIRING - ENGINE COMPARTMENT	LR031016 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, RHD, Surround Camera System, With Continuous Variable Damping / RH / From: BA000001	$2,066.10	1
14K733A	LR031018	WIRING - ENGINE COMPARTMENT	LR031018 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Surround Camera System, With Continuous Variable Damping / RH / From: BA353658	$1,463.71	1
14K733A	LR031019	WIRING - ENGINE COMPARTMENT	LR031019 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Adaptive Damping, RHD, Surround Camera System / RH / From: BA000001	$1,416.73	1
14K733B	LR012362	WIRING	LR012362 WIRING 5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / LH / From: AA000001 / To: AA322563	$1,142.13	1
14K733B	LR012364	WIRING	LR012364 WIRING 3.6L V8 32V DOHC EFi Diesel Lion, RHD, With Continuous Variable Damping / LH / From: AA000001 / To: AA322563	$1,233.50	1
14K733B	LR021858	WIRING	LR021858 WIRING 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Adaptive Damping / LH / From: AA000001 / To: AA999999	$1,898.68	1
14K733B	LR021859	WIRING	LR021859 WIRING 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, With Continuous Variable Damping / LH / From: AA000001 / To: AA999999	$1,708.84	1
14K733B	LR021860	WIRING	LR021860 WIRING 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD / LH / From: AA000001 / To: AA999999	$1,708.84	1
14K733B	LR021861	WIRING	LR021861 WIRING 3.6L V8 32V DOHC EFi Diesel Lion, LHD, Less Adaptive Damping / LH / From: AA000001	$2,154.48	1
14K733B	LR021862	WIRING	LR021862 WIRING 3.6L V8 32V DOHC EFi Diesel Lion, LHD, With Continuous Variable Damping / LH / From: AA000001	$2,270.85	1
14K733B	LR021863	WIRING	LR021863 WIRING 5.0L OHC SGDI NA V8 Petrol - AJ133, Less Adaptive Damping, RHD / LH / From: AA000001 / To: AA999999	$2,574.57	1
14K733B	LR021864	WIRING	LR021864 WIRING 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, With Continuous Variable Damping / LH / From: AA000001 / To: AA999999	$2,018.01	1
14K733B	LR021865	WIRING	LR021865 WIRING 5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / LH / From: AA322564 / To: AA999999	$2,714.33	1
14K733B	LR021866	WIRING	LR021866 WIRING 3.6L V8 32V DOHC EFi Diesel Lion, Less Adaptive Damping, RHD / LH / From: AA000001	$1,514.19	1
14K733B	LR021867	WIRING	LR021867 WIRING 3.6L V8 32V DOHC EFi Diesel Lion, RHD, With Continuous Variable Damping / LH / From: AA322564	$2,097.56	1
14K733B	LR022665	WIRING	LR022665 WIRING 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Adaptive Damping / LH / From: BA000001 / To: BA353657	$843.66	1
14K733B	LR022671	WIRING	LR022671 WIRING 5.0L OHC SGDI NA V8 Petrol - AJ133, Less Adaptive Damping, RHD / LH / From: BA000001 / To: BA353657	$1,129.69	1
14K733B	LR022673	WIRING	LR022673 WIRING 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, With Continuous Variable Damping / LH / From: BA000001 / To: BA353657	$1,173.67	1
14K733B	LR022674	WIRING	LR022674 WIRING 5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / LH / From: BA000001 / To: BA353657	$1,187.43	1
14K733B	LR031189	WIRING - ENGINE COMPARTMENT	LR031189 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Adaptive Damping / LH / From: BA353658	$391.26	1
14K733B	LR031190	WIRING - ENGINE COMPARTMENT	LR031190 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, With Continuous Variable Damping / LH / From: BA000001	$906.37	1
14K733B	LR031191	WIRING - ENGINE COMPARTMENT	LR031191 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD / LH / From: BA000001	$2,702.00	1
14K733B	LR031192	WIRING - ENGINE COMPARTMENT	LR031192 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, LHD / LH / From: BA000001	$2,165.99	1
14K733B	LR031193	WIRING - ENGINE COMPARTMENT	LR031193 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, Less Adaptive Damping, RHD / LH / From: BA353658	$948.18	1
14K733B	LR031194	WIRING - ENGINE COMPARTMENT	LR031194 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, With Continuous Variable Damping / LH / From: BA353658	$989.03	1
14K733B	LR031195	WIRING - ENGINE COMPARTMENT	LR031195 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / LH / From: BA353658	$3,436.97	1
14K733B	LR031196	WIRING - ENGINE COMPARTMENT	LR031196 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, RHD / LH / From: BA000001	$1,028.08	1

Electrical Wiring - Engine And Dash (Engine Compartment) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (Engine Compartment) ((V) FROMAA000001)
