Turbocharger (Lh Side - Secondary) (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Turbocharger (LH Side - Secondary) (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023104 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD $0.99 To Order
Photo Part No Description Price (each) Stock
QYG500090 BOLT - HEX.HEAD $0.59 To Order
Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.09 To Order
Photo Part No Description Price (each) Stock
LR014199 NUT - HEX. $1.13 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
TYP500030 SCREW $1.07 To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.96 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR004104 SCREW $3.32 To Order
Photo Part No Description Price (each) Stock
FS108166M SCREW $1.51 To Order
Photo Part No Description Price (each) Stock
LR113358 STUD $4.44 To Order
Photo Part No Description Price (each) Stock
LR022781 TUBE - DRAIN $68.18 To Order
LR032130 TUBE - DRAIN $100.60 To Order
Photo Part No Description Price (each) Stock
LR022788 PIPE - OIL FEED $44.42 To Order
Photo Part No Description Price (each) Stock
LR027187 TURBOCHARGER $3,098.76 To Order
LR044563 TURBOCHARGER $3,212.65 To Order
Photo Part No Description Price (each) Stock
LR022742 GASKET - OIL TUBE $7.45 To Order
Photo Part No Description Price (each) Stock
LR022798 SHIELD $99.99 To Order
Photo Part No Description Price (each) Stock
LR022677 HOSE - AIR $79.90 To Order
Photo Part No Description Price (each) Stock
LR033284 KIT - ACTUATOR SHUT OFF VALVE $120.21 To Order
Photo Part No Description Price (each) Stock
LR022795 VALVE-AIR SHUT-OFF & RECIRCULATION $550.08 To Order
LR031463 VALVE-AIR SHUT-OFF & RECIRCULATION $807.25 To Order
LR032127 VALVE-AIR SHUT-OFF & RECIRCULATION $857.66 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027196 KIT - TURBINE SHUT OFF VALVE $1,138.11 To Order
LR066428 KIT - TURBINE SHUT OFF VALVE $909.71 To Order
Photo Part No Description Price (each) Stock
LR022792 BRACKET - TURBOCHARGER $19.93 To Order
Photo Part No Description Price (each) Stock
LR022793 BRACKET - TURBOCHARGER $11.89 To Order
Photo Part No Description Price (each) Stock
LR022796 BRACKET - TURBOCHARGER $16.55 To Order
LR027017 BRACKET - TURBOCHARGER $14.67 To Order
View All

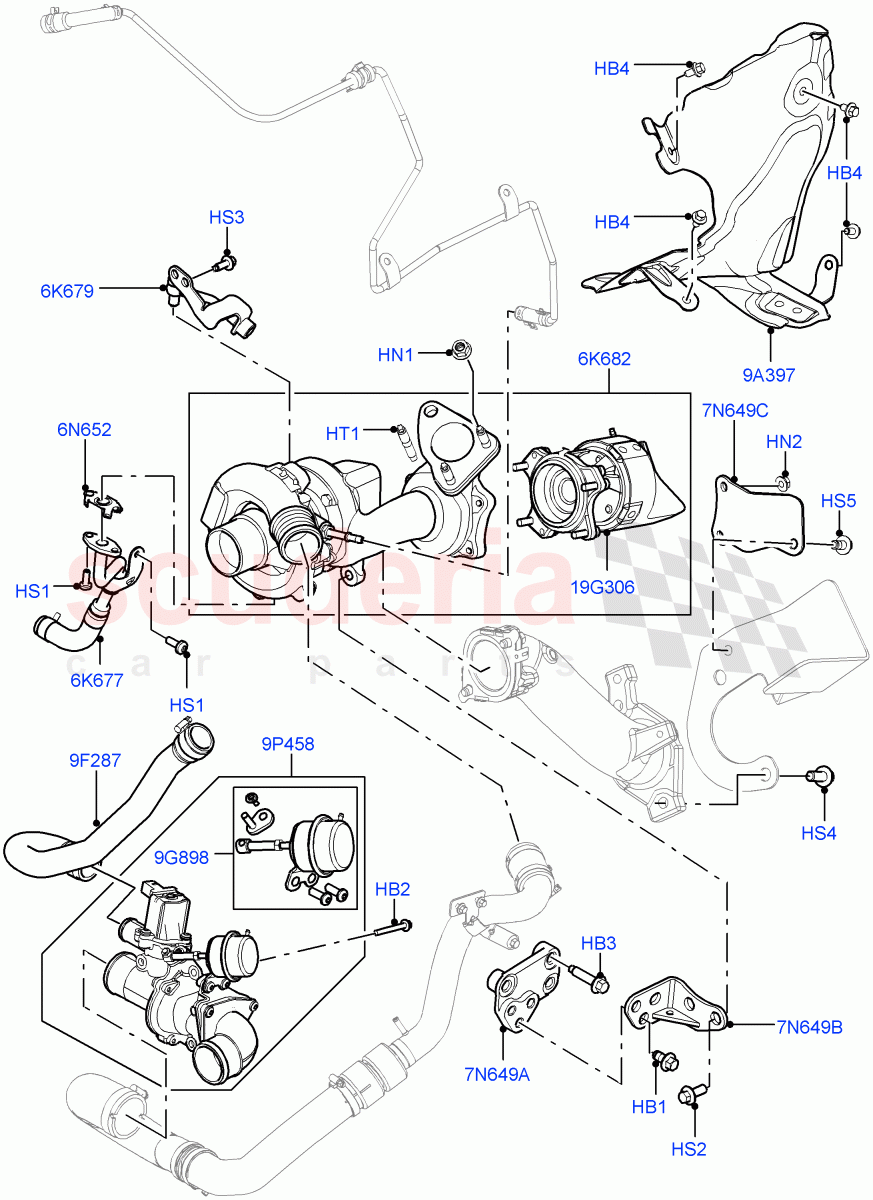

Turbocharger (LH Side - Secondary) (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR023104
BOLT
Bracket, M8 X 16MM / From: BA000001 		$1.16 3
HB2 FB106116
BOLT - HEX.HEAD
M6 x 55MM, Shut Off Valve / From: BA000001 		$0.99 3
HB3 QYG500090
BOLT - HEX.HEAD
Bracket, Hexagonal Head, M8 X 30 / From: BA000001 		$0.59 3
HB4 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / From: BA000001 		$1.09 4
HN1 LR014199
NUT - HEX.
Exhaust Manifold, M8 / From: BA000001 		$1.13 3
HN2 FN106042
NUT
Hexagonal Head, M6 / From: BA000001
IN STOCK 		$1.03 2
HS1 TYP500030
SCREW
M6 X 16MM, Torx, Tube - Oil Return / From: BA000001 		$1.07 3
HS2 WYP000025
SCREW
Hexagonal Head, M8 X 20MM, Turbocharger Bracket / From: BA000001 		$2.96 2
HS3 RYG500190
SCREW
Hexagonal Head, M6 X 16MM, Oil Tube Bracket / From: BA000001
IN STOCK 		$0.73 2
HS4 LR004104
SCREW
M10 X 25MM / From: BA000001 		$3.32 2
HS5 FS108166M
SCREW
M8 X 16MM / From: BA000001 		$1.51 1
HT1 LR113358
STUD
Exhaust Manifold, M8 X 16MM, M8 x 8MM / From: BA000001 		$4.44 3
6K677 LR022781
TUBE - DRAIN
LH / From: BA000001 / To: CA393013 		$68.18 1
6K677 LR032130
TUBE - DRAIN
LH / From: CA393014 		$100.60 1
6K679 LR022788
PIPE - OIL FEED
LH / From: BA000001 		$44.42 1
6K682 LR027187
TURBOCHARGER
LH, Connection Between Turbocharger And Exhaust Manifold Does Not Require Gasket, Secondary / From: BA000001 / To: CA393569 		$3,098.76 1
6K682 LR044563
TURBOCHARGER
LH, Connection Between Turbocharger And Exhaust Manifold Does Not Require Gasket, Secondary / From: CA393570 		$3,212.65 1
6N652 LR022742
GASKET - OIL TUBE
Tube - Oil Return / From: BA000001 		$7.45 1
7N649A LR022792
BRACKET - TURBOCHARGER
Turbocharger / From: BA000001 		$19.93 1
7N649B LR022793
BRACKET - TURBOCHARGER
Turbocharger / From: BA000001 		$11.89 1
7N649C LR022796
BRACKET - TURBOCHARGER
From: BA000001 / To: BA334438 		$16.55 1
7N649C LR027017
BRACKET - TURBOCHARGER
From: BA334439 		$14.67 1
9A397 LR022798
SHIELD
LH, Turbocharger Assembly / From: BA000001 		$99.99 1
9F287 LR022677
HOSE - AIR
Compressed Air Recirculation, From Valve To Air Inlet Hose / From: BA000001 		$79.90 1
9G898 LR033284
KIT - ACTUATOR SHUT OFF VALVE
Compressed Air Recirculation And Shut Off Valve / From: BA000001 		$120.21 1
9P458 LR022795
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: BA000001 / To: BA347724 		$550.08 1
9P458 LR031463
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: BA347725 / To: BA355615 		$807.25 1
9P458 LR032127
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation And Shut Off Valve / From: BA355616 / To: CA393569 		$857.66 1
9P458 LR038320
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation And Shut Off Valve / From: CA393570 / To: CA393572 		$741.84 1
9P458 LR043998
VALVE - AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation And Shut Off Valve / From: CA393573 		$857.66 1
19G306 LR027196
KIT - TURBINE SHUT OFF VALVE
Service Kit, Turbine Shut Off Valve / From: BA000001 / To: BA999999 		$1,138.11 1
19G306 LR066428
KIT - TURBINE SHUT OFF VALVE
Service Kit, Turbine Shut Off Valve / From: CA000001 		$909.71 1
