Turbocharger (Rh Side - Primary) (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Turbocharger (RH Side - Primary) (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.09 To Order
Photo Part No Description Price (each) Stock
LR023099 BOLT - BANJO $5.64 To Order
Photo Part No Description Price (each) Stock
LR023104 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
LR008026 BOLT $1.17 IN STOCK
Photo Part No Description Price (each) Stock
LR023967 BOLT - BANJO $19.57 To Order
Photo Part No Description Price (each) Stock
LR014199 NUT - HEX. $1.13 To Order
Photo Part No Description Price (each) Stock
TYP500030 SCREW $1.07 To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.96 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
RYG500150 SCREW $1.61 To Order
Photo Part No Description Price (each) Stock
RYP500960 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
LR113358 STUD $4.44 To Order
Photo Part No Description Price (each) Stock
LR008722 CLIP - SPECIAL $3.87 To Order
Photo Part No Description Price (each) Stock
LR023098 WASHER - SEALING $13.67 To Order
Photo Part No Description Price (each) Stock
LR023050 GASKET - TURBOCHARGER COOLING $6.48 To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE $13.38 To Order
Photo Part No Description Price (each) Stock
LR022780 TUBE - DRAIN $67.16 To Order
LR032129 TUBE - DRAIN $99.11 To Order
Photo Part No Description Price (each) Stock
LR022790 TURBOCHARGER $3,212.53 To Order
Photo Part No Description Price (each) Stock
LR022742 GASKET - OIL TUBE $7.45 To Order
Photo Part No Description Price (each) Stock
LR022794 BRACKET - COOLING HOSE $23.62 To Order
Photo Part No Description Price (each) Stock
LR023051 HOSE - WATER INLET $227.68 To Order
LR038010 HOSE - WATER INLET $223.36 To Order
Photo Part No Description Price (each) Stock
LR022797 SHIELD $54.74 To Order
Photo Part No Description Price (each) Stock
LR022782 PIPE - OIL FEED $180.45 To Order
LR033343 PIPE - OIL FEED $438.10 To Order
Photo Part No Description Price (each) Stock
LR022787 PIPE - OIL FEED $51.66 To Order
View All

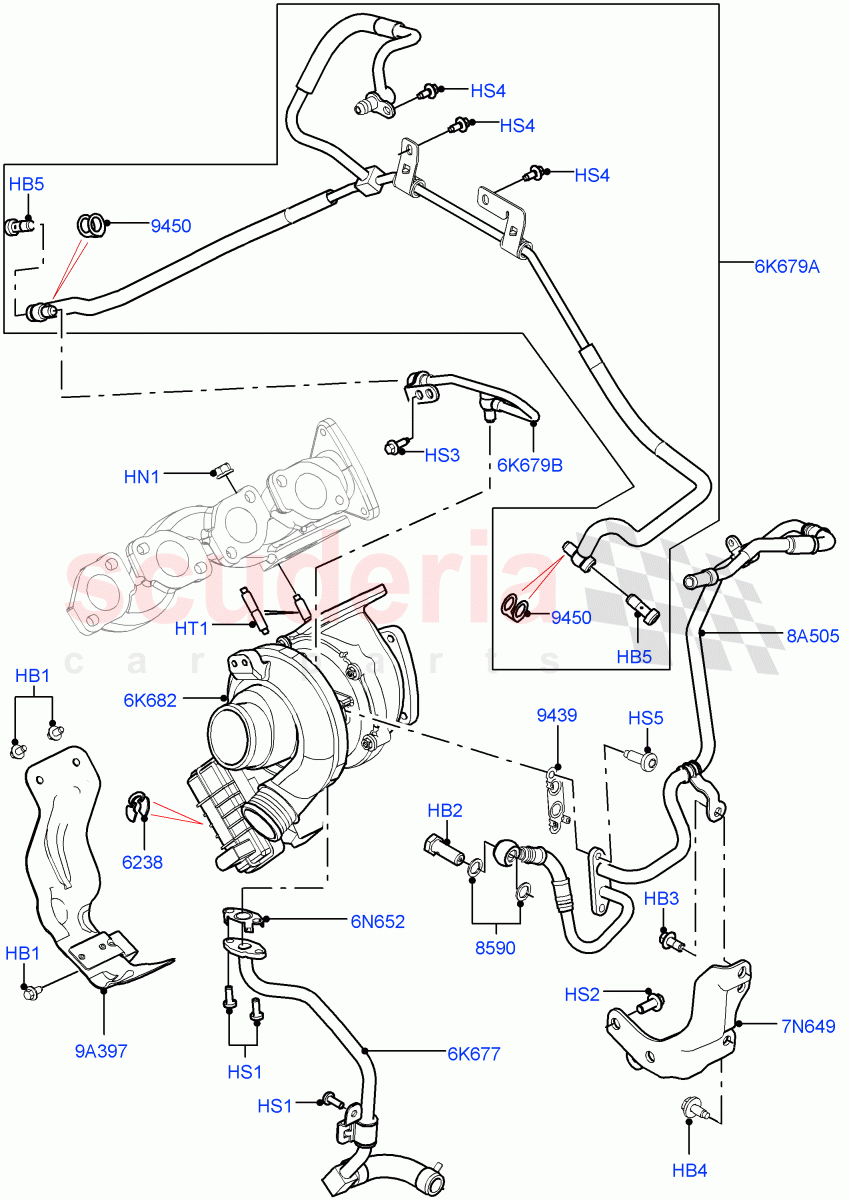

Turbocharger (RH Side - Primary) (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / From: BA000001 		$1.09 3
HB2 LR023099
BOLT - BANJO
Banjo Bolt / From: BA000001 		$5.64 1
HB3 LR023104
BOLT
Bracket, M8 X 16MM / From: BA000001 		$1.16 3
HB4 LR008026
BOLT
Bolt And Washer, M8 X 17MM / From: BA000001
IN STOCK 		$1.17 1
HB5 LR023967
BOLT - BANJO
Banjo Bolt, Hexagonal Head, Service Part May Differ From Production, Turbocharger Oil Feed / From: BA000001 		$19.57 2
HN1 LR014199
NUT - HEX.
Exhaust Manifold, M8 / From: BA000001 		$1.13 3
HS1 TYP500030
SCREW
M6 X 16MM, Torx, Tube - Oil Return / From: BA000001 		$1.07 3
HS2 WYP000025
SCREW
Hexagonal Head, M8 X 20MM, Turbocharger Bracket / From: BA000001 		$2.96 2
HS3 RYG500190
SCREW
Hexagonal Head, M6 X 16MM, Oil Tube Bracket / From: BA000001
IN STOCK 		$0.73 2
HS4 RYG500150
SCREW
M6 x 12MM / From: BA000001 		$1.61 3
HS5 RYP500960
SCREW
M6 X 16MM, Torx / From: BA000001 		$0.57 2
HT1 LR113358
STUD
Exhaust Manifold, M8 X 16MM, M8 x 8MM / From: BA000001 		$4.44 3
6K677 LR022780
TUBE - DRAIN
RH / From: BA000001 / To: CA393013 		$67.16 1
6K677 LR032129
TUBE - DRAIN
RH / From: CA393014 		$99.11 1
6K679A LR022782
PIPE - OIL FEED
Centre / From: BA000001 / To: CA393013 		$180.45 1
6K679A LR033343
PIPE - OIL FEED
Centre / From: CA393014 		$438.10 1
6K679B LR022787
PIPE - OIL FEED
RH / From: BA000001 		$51.66 1
6K682 LR022790
TURBOCHARGER
RH, Primary / From: BA000001 		$3,212.53 1
6N652 LR022742
GASKET - OIL TUBE
Tube - Oil Return / From: BA000001 		$7.45 1
7N649 LR022794
BRACKET - COOLING HOSE
For Turbocharger Cooling Hose / From: BA000001 		$23.62 1
8A505 LR023051
HOSE - WATER INLET
Cooling For Turbocharger / From: BA000001 / To: BA999999 		$227.68 1
8A505 LR038010
HOSE - WATER INLET
Cooling For Turbocharger / From: CA000001 		$223.36 1
9A397 LR022797
SHIELD
RH, Turbocharger Assembly / From: BA000001 		$54.74 1
6238 LR008722
CLIP - SPECIAL
From: BA000001 		$3.87 2
8590 LR023098
WASHER - SEALING
Banjo Bolt / From: BA000001 		$13.67 2
9439 LR023050
GASKET - TURBOCHARGER COOLING
For Turbocharger Cooling Hose / From: BA000001 		$6.48 1
9450 1372726
GASKET - OIL TUBE
Banjo Washer / From: BA000001 		$13.38 2
