Exhaust System (Rear, Muffler) (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Rear, Muffler) (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP000220 BOLT $0.65 To Order
Photo Part No Description Price (each) Stock
ESR2034 NUT - FLANGED $4.03 To Order
Photo Part No Description Price (each) Stock
LR020941 EXTENSION - EXHAUST PIPE $706.84 To Order
LR029119 EXTENSION - EXHAUST PIPE $1,004.81 To Order
LR059416 EXTENSION - EXHAUST PIPE $954.65 To Order
Photo Part No Description Price (each) Stock
WCL500040 CLAMP - EXHAUST $87.36 To Order
Photo Part No Description Price (each) Stock
WCS500030 INSULATOR - RUBBER $27.86 To Order
Photo Part No Description Price (each) Stock
YTV000070 WIRE $29.60 To Order
Photo Part No Description Price (each) Stock
LR025971 SHIELD $467.57 To Order
Photo Part No Description Price (each) Stock
LR025970 HEAT SHIELD $530.22 To Order
Photo Part No Description Price (each) Stock
LR022589 MUFFLER - REAR $1,138.76 To Order
Photo Part No Description Price (each) Stock
LR022591 MUFFLER - REAR $1,138.76 To Order
Photo Part No Description Price (each) Stock
WCU500260 BRACKET - MUFFLER OUTLET PIPE $13.82 To Order
Photo Part No Description Price (each) Stock
WCU500270 BRACKET - MUFFLER OUTLET PIPE $13.82 To Order
View All

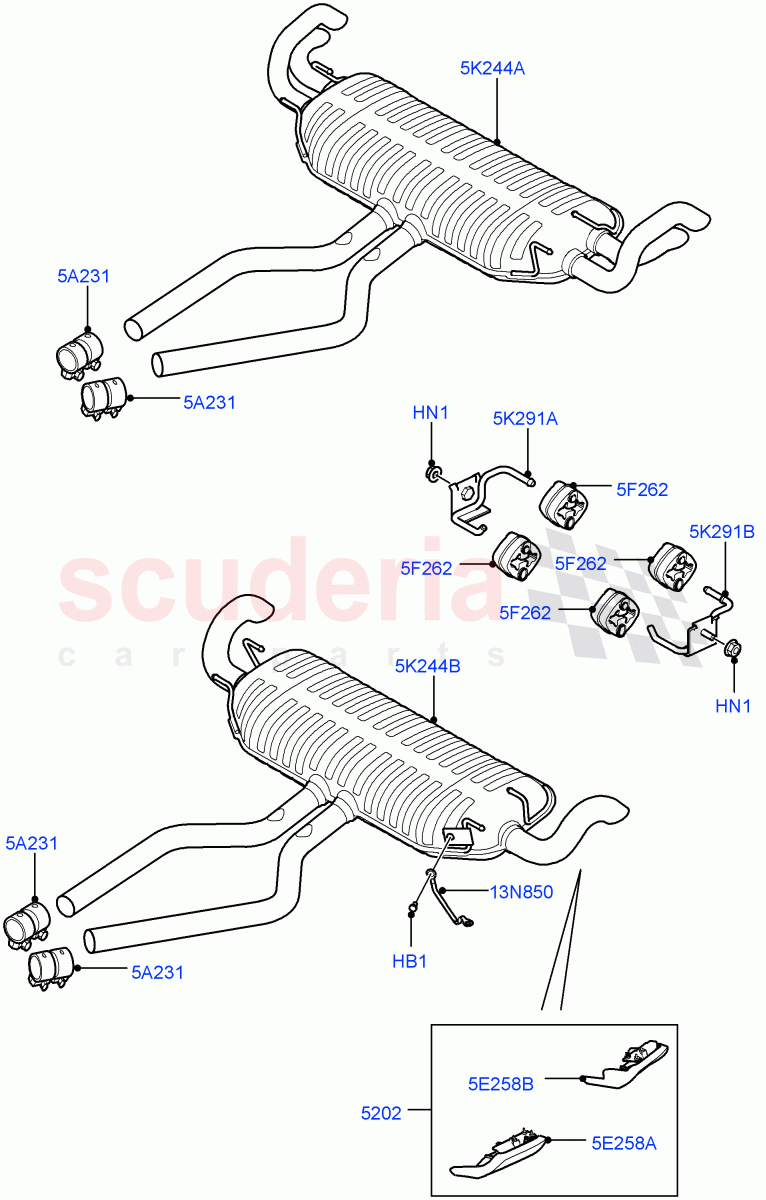

Exhaust System (Rear, Muffler) (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP000220
BOLT
M6 x 12MM / From: BA000001 		$0.65 1
HN1 ESR2034
NUT - FLANGED
M10 X 1.5 / From: BA000001 		$4.03 2
5A231 WCL500040
CLAMP - EXHAUST
60MM / From: BA000001 		$87.36 2
5E258A LR025971
SHIELD
4.4L DOHC DITC V8 Diesel, Rear Bumper - Body Kit / LH / From: BA000001 		$467.57 1
5E258B LR025970
HEAT SHIELD
4.4L DOHC DITC V8 Diesel, Rear Bumper - Body Kit / RH / From: BA000001 		$530.22 1
5F262 WCS500030
INSULATOR - RUBBER
From: BA000001 		$27.86 7
5K244A LR022589
MUFFLER - REAR
Stage V Plus DPF / From: BA000001 		$1,138.76 1
5K244B LR022591
MUFFLER - REAR
Euro Stage 4 Emissions / From: BA000001 		$1,138.76 1
5K291A WCU500260
BRACKET - MUFFLER OUTLET PIPE
RH / From: BA000001 		$13.82 1
5K291B WCU500270
BRACKET - MUFFLER OUTLET PIPE
LH / From: BA000001 		$13.82 1
13N850 YTV000070
WIRE
From: BA000001 		$29.60 1
5202 LR020941
EXTENSION - EXHAUST PIPE
4.4L DOHC DITC V8 Diesel, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: BA000001 / To: BA337138 		$706.84 1
5202 LR029119
EXTENSION - EXHAUST PIPE
4.4L DOHC DITC V8 Diesel, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: BA337139 / To: BA338718 		$1,004.81 1
5202 LR059416
EXTENSION - EXHAUST PIPE
4.4L DOHC DITC V8 Diesel, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: BA338719 		$954.65 1
