Exhaust System (Front) (4.4L Dohc Ditc V8 Diesel, Stage V Plus Dpf, With Diesel Particulate Filter)...

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Stage V Plus DPF, With Diesel Particulate Filter)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000631 BOLT - HEX.HEAD $2.63 To Order
Photo Part No Description Price (each) Stock
1419376 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR020699 CLIP $0.59 To Order
LR028536 CLIP $1.41 To Order
Photo Part No Description Price (each) Stock
LR016623 CLIP $1.72 To Order
Photo Part No Description Price (each) Stock
LR022620 CLIP $14.81 To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $8.01 IN STOCK
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.40 IN STOCK
Photo Part No Description Price (each) Stock
DYP500160 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
FA108202 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LYR500010 STUD $6.36 To Order
Photo Part No Description Price (each) Stock
LR023024 ELBOW - EXHAUST MANIFOLD $120.50 To Order
Photo Part No Description Price (each) Stock
LR022603 TUBE - EXHAUST $500.77 To Order
LR029095 PIPE - EXHAUST $468.87 To Order
LR032274 PIPE - EXHAUST $406.68 To Order
Photo Part No Description Price (each) Stock
LR022651 PIPE - EXHAUST $422.87 To Order
Photo Part No Description Price (each) Stock
LR023083 BRACKET $16.71 To Order
Photo Part No Description Price (each) Stock
LR022625 CONVERTER $3,338.52 To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE $12.57 IN STOCK
Photo Part No Description Price (each) Stock
WCS500030 INSULATOR - RUBBER $27.91 To Order
Photo Part No Description Price (each) Stock
LR022602 FILTER - DIESEL PARTICLE $4,038.00 To Order
Photo Part No Description Price (each) Stock
WCU500290 BRACKET $21.28 To Order
Photo Part No Description Price (each) Stock
LR001370 SENSOR - EXHAUST GAS - OXYGEN $350.39 To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST $83.94 To Order
Photo Part No Description Price (each) Stock
LR007465 CLAMP $49.77 To Order
Photo Part No Description Price (each) Stock
WCM500080 GASKET - EXHAUST PIPE $16.34 To Order
Photo Part No Description Price (each) Stock
WCM500130 GASKET - CATALYST $4.93 To Order
LR032289 GASKET - EXHAUST PIPE $13.58 To Order
Photo Part No Description Price (each) Stock
LR022779 GASKET - EXHAUST PIPE $8.13 To Order
Photo Part No Description Price (each) Stock
LR022644 SUPPORT $15.31 To Order
Photo Part No Description Price (each) Stock
WCU500310 BRACKET - EXHAUST PIPE MOUNTING $18.53 To Order
Photo Part No Description Price (each) Stock
LR022944 SENSOR - EXHAUST GAS PRESSURE $297.60 To Order
Photo Part No Description Price (each) Stock
LR023134 SENSOR - EXHAUST GAS PRESSURE $117.21 To Order
Photo Part No Description Price (each) Stock
LR022608 TUBE - EXHAUST PRESSURE $51.27 To Order
Photo Part No Description Price (each) Stock
LR022609 TUBE - EXHAUST PRESSURE $62.71 To Order
Photo Part No Description Price (each) Stock
LR022894 SENSOR - EXHAUST GAS - TEMPERATURE $169.81 To Order
Photo Part No Description Price (each) Stock
LR022906 SENSOR - EXHAUST GAS - TEMPERATURE $113.18 To Order
Photo Part No Description Price (each) Stock
WDN500130 SENSOR - EXHAUST GAS - TEMPERATURE $126.06 To Order
Photo Part No Description Price (each) Stock
LR022893 SENSOR - EXHAUST GAS - TEMPERATURE $184.39 To Order
LR033094 SENSOR - EXHAUST GAS - TEMPERATURE $85.10 To Order
LR052169 SENSOR - EXHAUST GAS - TEMPERATURE $184.39 To Order
View All

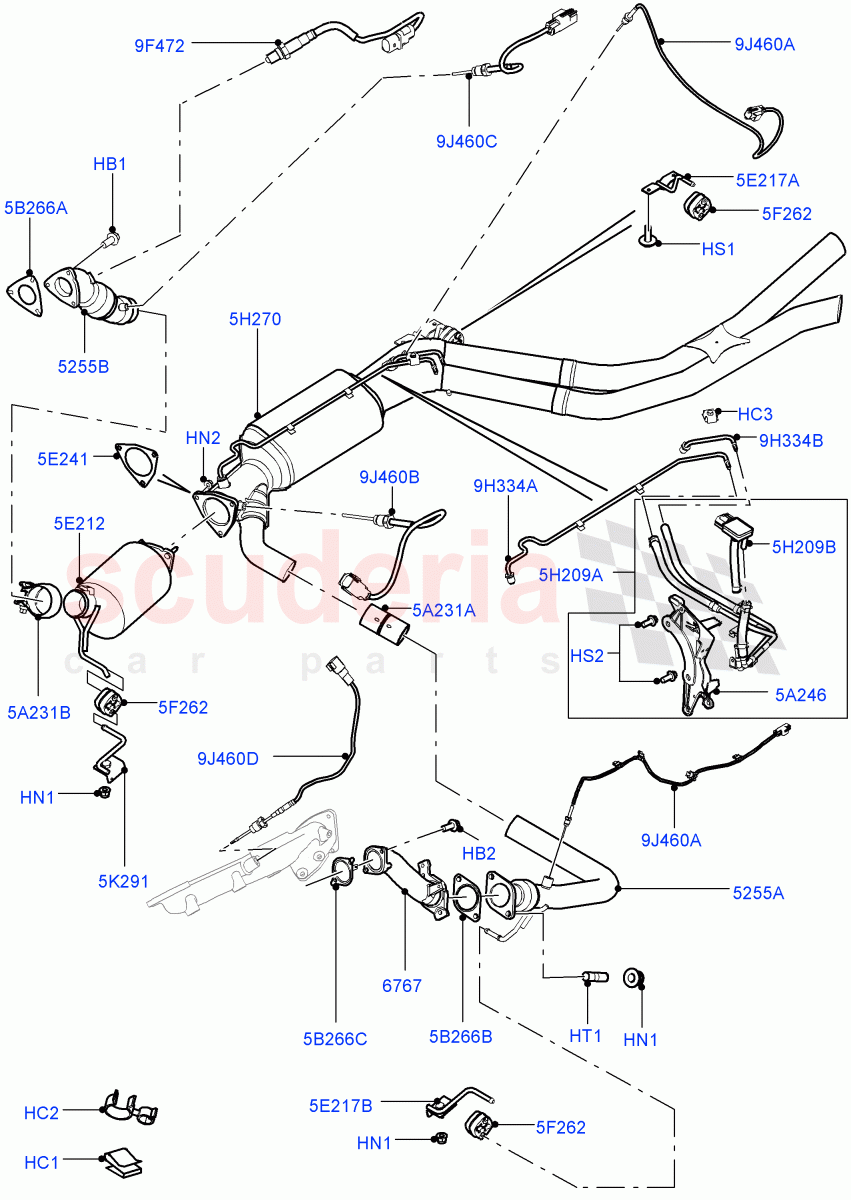

Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Stage V Plus DPF, With Diesel Particulate Filter) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000631
BOLT - HEX.HEAD
M8 1.25 X 25 / From: BA000001 		$2.63 3
HB2 1419376
BOLT
Hexagonal Head, M8 X 16MM / From: BA000001 		$2.57 2
HC1 LR020699
CLIP
Single / From: BA000001 / To: BA343770 		$0.59 1
HC1 LR028536
CLIP
Exhaust Gas Temperature Sensor / From: BA343771 		$1.41 1
HC2 LR016623
CLIP
Double / From: BA000001 		$1.72 1
HC3 LR022620
CLIP
Exhaust Gas Pressure, Tube / From: BA000001 		$14.81 1
HN1 LR025680
M10 FLANGED HEX NUT
M10 / From: BA000001
IN STOCK 		$8.01 4
HN2 FX108046
NUT - LOCKING
M8 / From: BA000001
IN STOCK 		$0.40 3
HS1 DYP500160
SCREW
M8 X 25MM / From: BA000001 		$0.79 2
HS2 FA108202
SCREW
Hexagonal Head, M8 X 20MM, Taptite / From: BA000001 		$1.36 2
HT1 LYR500010
STUD
M10 x 13MM, M10 X 20MM / From: BA000001 		$6.36 2
5A231A WCL500030
CLAMP - EXHAUST
55MM / From: BA000001 		$83.94 1
5A231B LR007465
CLAMP
60MM / From: BA000001 		$49.77 1
5A246 LR023083
BRACKET
From: BA000001 		$16.71 1
5B266A WCM500080
GASKET - EXHAUST PIPE
Exhaust pipe / From: BA000001 		$16.34 1
5B266B WCM500130
GASKET - CATALYST
Catalyst / From: BA000001 / To: CA363651 		$4.93 1
5B266B LR032289
GASKET - EXHAUST PIPE
Catalyst / From: CA363652 		$13.58 1
5B266C LR022779
GASKET - EXHAUST PIPE
Elbow Connector, Exhaust pipe, Secondary Turbo To Down Pipe / From: BA000001 		$8.13 1
5E212 LR022625
CONVERTER
From: BA000001 		$3,338.52 1
5E217A LR022644
SUPPORT
From: BA000001 		$15.31 1
5E217B WCU500310
BRACKET - EXHAUST PIPE MOUNTING
LH / From: BA000001 		$18.53 1
5E241 WCM500120
GASKET - EXHAUST PIPE
From: BA000001
IN STOCK 		$12.57 1
5F262 WCS500030
INSULATOR - RUBBER
From: BA000001 		$27.91 7
5H209A LR022944
SENSOR - EXHAUST GAS PRESSURE
Pressure / From: BA000001 		$297.60 1
5H209B LR023134
SENSOR - EXHAUST GAS PRESSURE
Pressure / From: BA000001 		$117.21 1
5H270 LR022602
FILTER - DIESEL PARTICLE
From: BA000001 		$4,038.00 1
5K291 WCU500290
BRACKET
RH, Front / From: BA000001 		$21.28 1
9F472 LR001370
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen / From: BA000001 		$350.39 1
9H334A LR022608
TUBE - EXHAUST PRESSURE
Front / From: BA000001 		$51.27 1
9H334B LR022609
TUBE - EXHAUST PRESSURE
Rear / From: BA000001 		$62.71 1
9J460A LR022894
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: BA000001 		$169.81 2
9J460B LR022906
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: BA000001 		$113.18 1
9J460C WDN500130
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: BA000001 		$126.06 1
9J460D LR022893
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: BA000001 / To: BA999999 		$184.39 1
9J460D LR033094
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: CA000001 / To: CA393655 		$85.10 1
9J460D LR052169
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: CA393656 		$184.39 1
5255A LR022603
TUBE - EXHAUST
LH / From: BA000001 / To: BA337610 		$500.77 1
5255A LR029095
PIPE - EXHAUST
LH / From: BA337611 / To: CA361345 		$468.87 1
5255A LR032274
PIPE - EXHAUST
LH / From: CA361346 		$406.68 1
5255B LR022651
PIPE - EXHAUST
RH / From: BA000001 		$422.87 1
6767 LR023024
ELBOW - EXHAUST MANIFOLD
Exhaust Manifold 		$120.50 1
