Thermostat/Housing & Related Parts (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Thermostat/Housing & Related Parts (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006015 CLIP $0.67 To Order
Photo Part No Description Price (each) Stock
LR023137 RING - SEALING $0.56 To Order
Photo Part No Description Price (each) Stock
LR004615 SCREW $5.29 To Order
Photo Part No Description Price (each) Stock
LR003602 RETAINER $1.21 To Order
Photo Part No Description Price (each) Stock
LR023141 GASKET - THERMOSTAT $3.27 To Order
Photo Part No Description Price (each) Stock
LR023138 THERMOSTAT $32.32 To Order
Photo Part No Description Price (each) Stock
LR022690 CONNECTION - WATER OUTLET $66.32 To Order
Photo Part No Description Price (each) Stock
LR186860 CONNECTION - WATER OUTLET $183.35 IN STOCK
Photo Part No Description Price (each) Stock
LR023144 HOSE - WATER OUTLET $20.78 To Order
Photo Part No Description Price (each) Stock
LR023145 O-RING THERMOSTAT HOUSING WATER OUTLET $1.13 IN STOCK
Photo Part No Description Price (each) Stock
LR023142 HOSE - COOLANT BLEED $20.90 IN STOCK
Photo Part No Description Price (each) Stock
LR000241 SENSOR - ENGINE COOLANT TEMPERATURE $22.89 To Order
LR044930 SENSOR - ENGINE COOLANT TEMPERATURE $61.04 To Order
View All

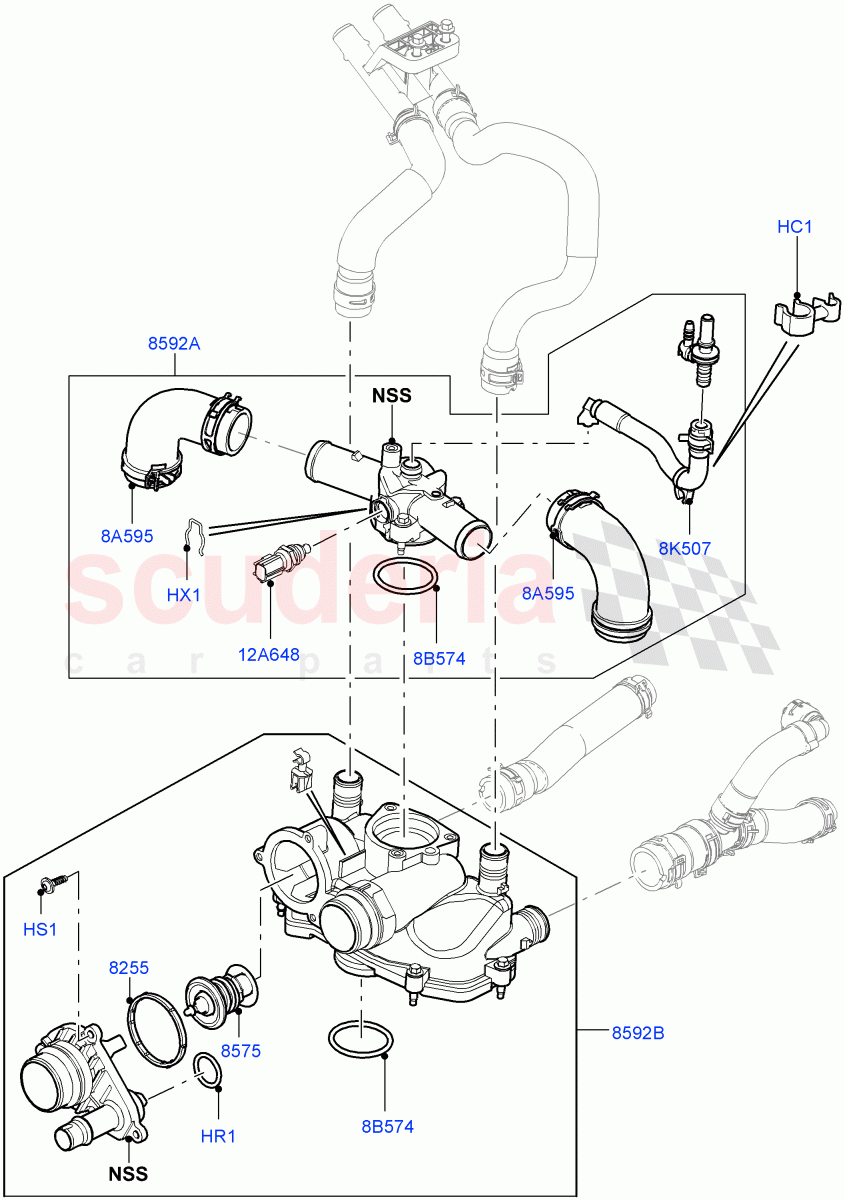

Thermostat/Housing & Related Parts (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR006015
CLIP 		$0.67 1
HR1 LR023137
RING - SEALING
Cover, Thermostat Assy / From: BA000001 		$0.56 1
HS1 LR004615
SCREW
6 x 20 / From: BA000001 		$5.29 4
HX1 LR003602
RETAINER
Clip, Coolant Temperature Sensor / From: BA000001 		$1.21 1
8A595 LR023144
HOSE - WATER OUTLET
To Cylinder Head / From: BA000001 		$20.78 2
8B574 LR023145
O-RING THERMOSTAT HOUSING WATER OUTLET
Bottom, Thermostat Housing / From: BA000001
IN STOCK 		$1.13 2
8K507 LR023142
HOSE - COOLANT BLEED
Cooling System Bleed / From: BA000001
IN STOCK 		$20.90 1
12A648 LR000241
SENSOR - ENGINE COOLANT TEMPERATURE
From: BA000001 / To: CA999999 		$22.89 1
12A648 LR044930
SENSOR - ENGINE COOLANT TEMPERATURE
From: DA000001 		$61.04 1
8255 LR023141
GASKET - THERMOSTAT
Thermostat Assy / From: BA000001 		$3.27 1
8575 LR023138
THERMOSTAT
From: BA000001 		$32.32 1
8592A LR022690
CONNECTION - WATER OUTLET
Upper / From: BA000001 		$66.32 1
8592B LR186860
CONNECTION - WATER OUTLET
Lower / From: BA000001
IN STOCK 		$183.35 1
