Name: Radiator/Coolant Overflow Container (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)
Rating: 4.5 (1 reviews)

Radiator/Coolant Overflow Container (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Radiator/Coolant Overflow Container (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

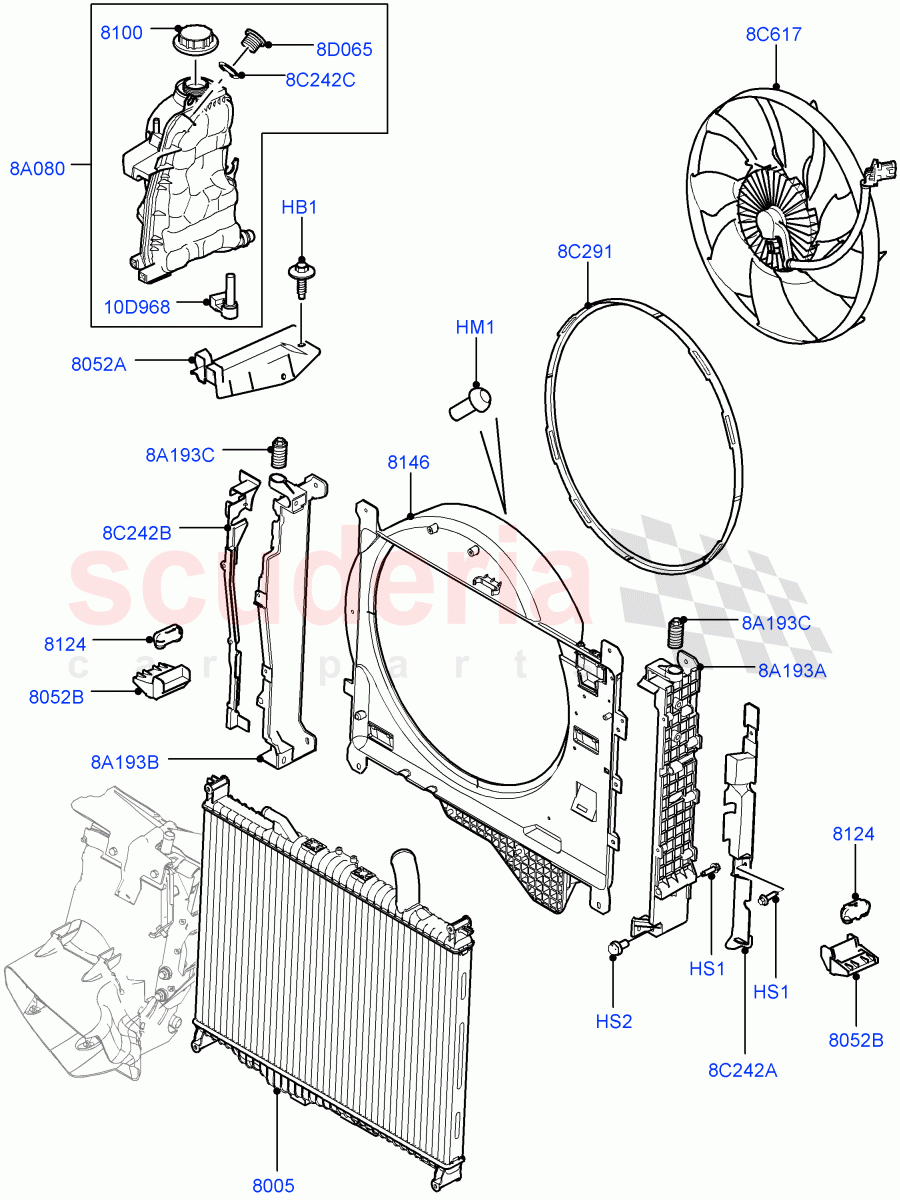

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500120	BOLT	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR020622	RIVET - BLIND	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018707	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018708	SCREW	$1.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR022741	RADIATOR	$769.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176860	CAP - OVERFLOW CONTAINER	$16.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCG000010	MOUNTING - RUBBER	$15.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022734	SHROUD - RADIATOR FAN	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011033	BRACKET	$9.85	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU000070	BRACKET - RADIATOR	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022731	TANK - RADIATOR OVERFLOW	$166.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022851	GUARD	$46.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022732	FAN	$806.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	$4.78	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	$25.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR022749	FRAME - SIDE	$58.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022750	FRAME - SIDE	$58.15	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU000220	BRACKET - RADIATOR UPPER	$18.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022755	SEAL	$17.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022756	SEAL	$17.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	$2.25	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	PYP500120	BOLT IN STOCK	PYP500120 BOLT M6 X 20MM / From: BA000001 IN STOCK	$0.80	3
HM1	LR020622	RIVET - BLIND	LR020622 RIVET - BLIND Rivet Blind 4.95 X 3-4 / From: BA000001	$2.53	16
HS1	LR018707	SCREW	LR018707 SCREW 6X20, Hexagonal Head / From: BA000001	$1.05	9
HS2	LR018708	SCREW IN STOCK	LR018708 SCREW M8 X 20MM / From: BA000001 IN STOCK	$1.05	14
8A080	LR022731	TANK - RADIATOR OVERFLOW	LR022731 TANK - RADIATOR OVERFLOW From: BA000001	$166.23	1
8A193A	LR022749	FRAME - SIDE	LR022749 FRAME - SIDE LH / From: BA000001	$58.15	1
8A193B	LR022750	FRAME - SIDE	LR022750 FRAME - SIDE RH / From: BA000001	$58.15	1
8A193C	PCU000220	BRACKET - RADIATOR UPPER	PCU000220 BRACKET - RADIATOR UPPER Upper / From: BA000001	$18.89	2
8C242A	LR022755	SEAL	LR022755 SEAL LH / From: BA000001	$17.74	1
8C242B	LR022756	SEAL	LR022756 SEAL RH / From: BA000001	$17.74	1
8C242C	LR007315	SEAL IN STOCK	LR007315 SEAL Bleeder Screw / From: BA000001 IN STOCK	$2.25	1
8C291	LR022851	GUARD	LR022851 GUARD From: BA000001	$46.57	1
8C617	LR022732	FAN	LR022732 FAN From: BA000001	$806.93	1
8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / From: BA000001	$4.78	1
10D968	PCJ500030	SENSOR - COOLANT LEVEL IN STOCK	PCJ500030 SENSOR - COOLANT LEVEL From: BA000001 IN STOCK	$25.03	1
8005	LR022741	RADIATOR	LR022741 RADIATOR From: BA000001	$769.47	1
8052A	LR011033	BRACKET	LR011033 BRACKET From: BA000001	$9.85	1
8052B	PCU000070	BRACKET - RADIATOR	PCU000070 BRACKET - RADIATOR Lower / From: BA000001	$5.54	2
8100	LR176860	CAP - OVERFLOW CONTAINER IN STOCK	LR176860 CAP - OVERFLOW CONTAINER From: BA000001 IN STOCK	$16.87	1
8124	PCG000010	MOUNTING - RUBBER	PCG000010 MOUNTING - RUBBER From: BA000001	$15.15	2
8146	LR022734	SHROUD - RADIATOR FAN	LR022734 SHROUD - RADIATOR FAN From: BA000001	$320.90	1

Radiator/Coolant Overflow Container (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Radiator/Coolant Overflow Container (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)
