Name: Luggage Compt/Tailgte Lock Controls (Less Armoured) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

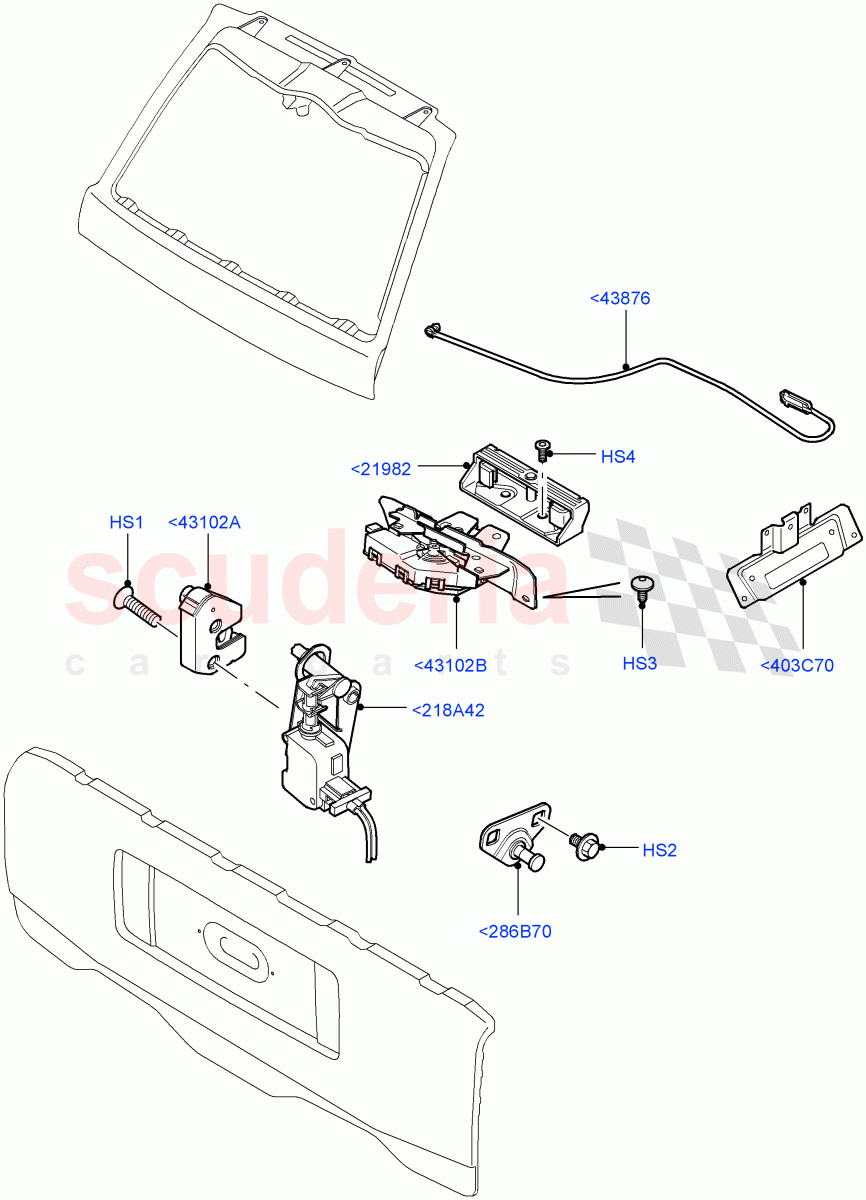

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BYP500280	SCREW	$0.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FYP500090	SCREW	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500290	SCREW	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500320	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	FQQ500060	STRIKER - DOOR LOCKING MECHANISM	$50.76	To Order

Photo	Part No	Description	Price (each)	Stock
	FTS105050L	ROD	$58.37	To Order

Photo	Part No	Description	Price (each)	Stock
	FQQ000020	STRIKER - DOOR LOCKING MECHANISM	$12.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BHR760070	REINFORCEMENT - TAILGATE LOCK	$21.73	To Order

Photo	Part No	Description	Price (each)	Stock
	CWC500140	LATCH - TAILGATE	$222.60	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<218A42	FUG500140	ACTUATOR	FUG500140 ACTUATOR RH, Lower / From: AA000001	$119.83	1
<218A42	FUG500150	ACTUATOR	FUG500150 ACTUATOR LH, Lower / From: AA000001	$119.83	1
<286B70	FQQ000020	STRIKER - DOOR LOCKING MECHANISM IN STOCK	FQQ000020 STRIKER - DOOR LOCKING MECHANISM Lower / From: AA000001 IN STOCK	$12.53	2
<403C70	BHR760070	REINFORCEMENT - TAILGATE LOCK	BHR760070 REINFORCEMENT - TAILGATE LOCK Tailgate Locking / From: AA000001	$21.73	1
<21982	FQQ500060	STRIKER - DOOR LOCKING MECHANISM	FQQ500060 STRIKER - DOOR LOCKING MECHANISM Upper / From: AA000001	$50.76	1
<43102A	CWC000120	LATCH - TAILGATE	CWC000120 LATCH - TAILGATE RH, Lower / From: AA000001	$182.67	1
<43102A	CWC000130	LATCH - TAILGATE	CWC000130 LATCH - TAILGATE LH, Lower / From: AA000001	$182.67	1
<43102B	CWC500140	LATCH - TAILGATE	CWC500140 LATCH - TAILGATE Upper / From: AA000001	$222.60	1
<43876	FTS105050L	ROD	FTS105050L ROD Door Release Control, Tailgate, Upper / From: AA000001	$58.37	1
HS1	BYP500280	SCREW IN STOCK	BYP500280 SCREW M8 x 40MM Torx, Tailgate, Upper / From: AA000001 IN STOCK	$0.79	4
HS2	FYP500090	SCREW	FYP500090 SCREW M8 X 16MM, Striker, Torx / From: AA000001	$1.67	4
HS3	BYP500290	SCREW	BYP500290 SCREW M6 X 16MM, On Door Latch, Tailgate, Torx, Upper / From: AA000001	$1.21	7
HS4	BYP500320	SCREW	BYP500320 SCREW Striker, Tailgate, Upper / From: AA000001	$0.79	2

Luggage Compt/Tailgte Lock Controls (Less Armoured) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
